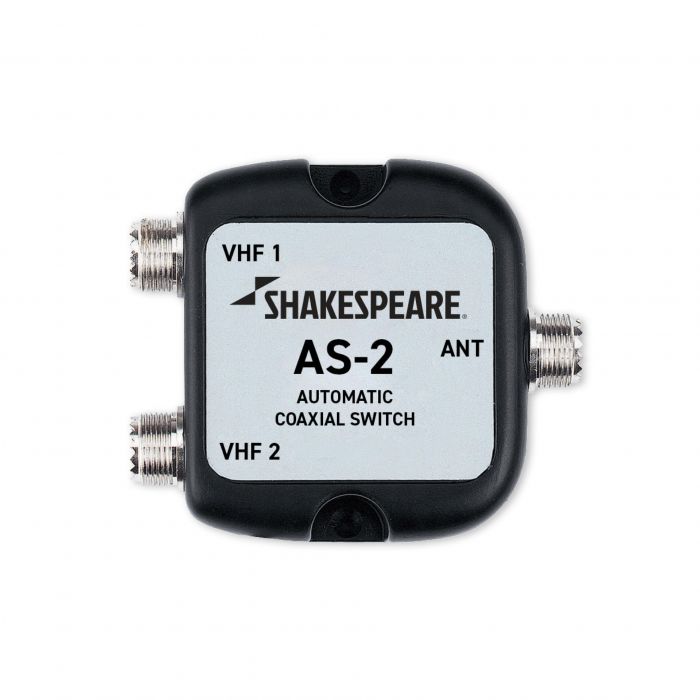

Shakespeare Automatic Coaxial Switch - AS-2

The Shakespeare AS-2 as an automatic radio/antenna switch.

Features:

• Automatically toggles between two radios and one antenna
• When the microphone on one of the radios is keyed, that radio is automatically switched to the antenna
• The radio stays locked onto the antenna until the automatic switch detects a transmit from the other radio

Specifications:

• Frequency Range: up to 600 MHz
• VSWR: Below 1.2:1
• Power Rating: 30 W
• Impedance: 50 ohm
• Connections: SO-239 type
• Power Supply: 12V DC at 200 ma
• Sensing/Switching Time: Less than 100 ms
