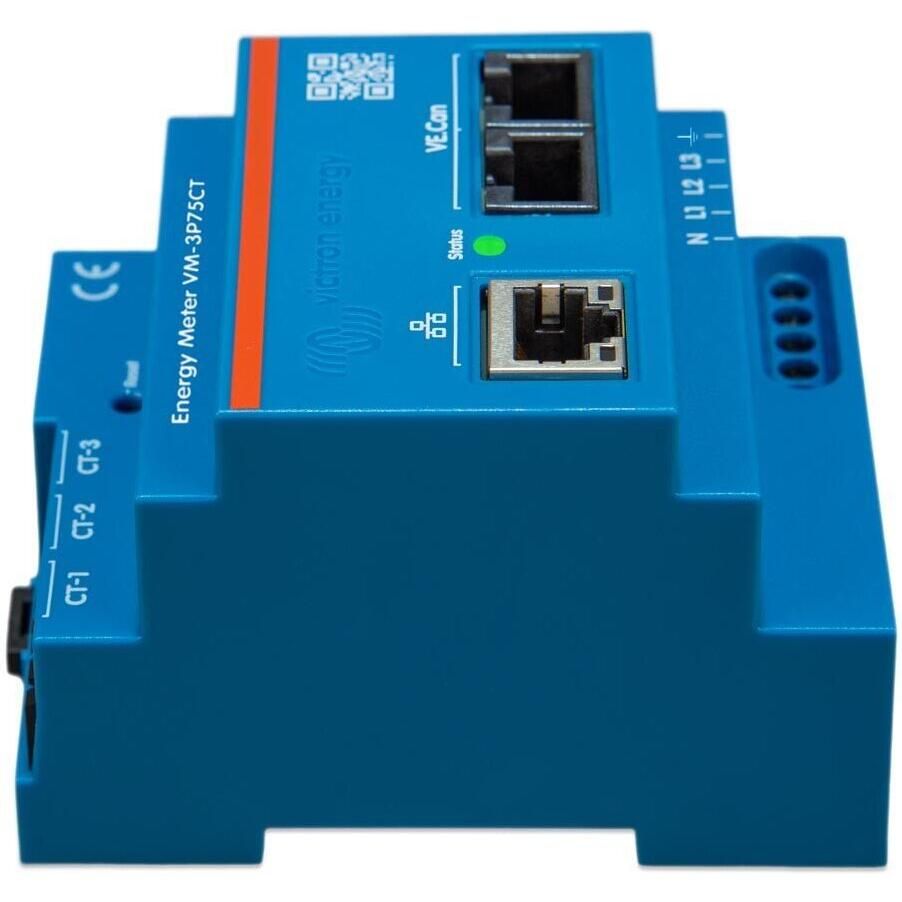

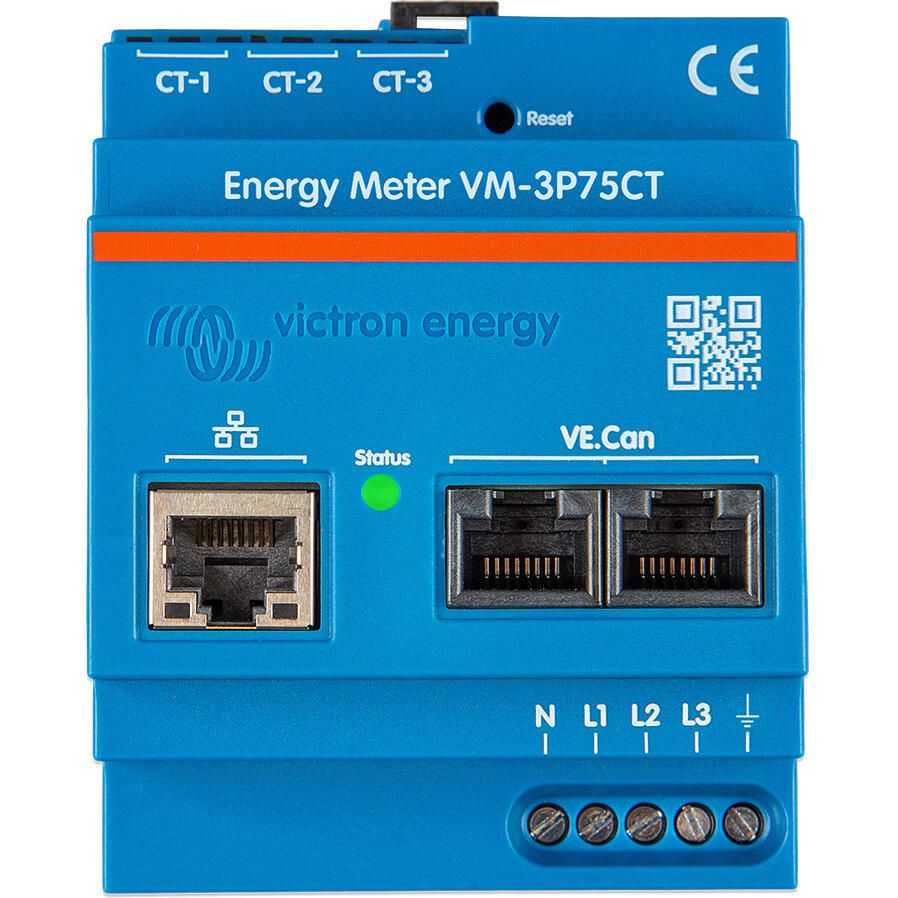

Victron Energy VM-3P75CT Three-Phase Energy Meter - REL200300100
Victron Energy VM-3P75CT Three-Phase Energy Meter - REL200300100 NUMÉRO D'ARTICLE # 1778518
Description
The Victron VM-3P75CT energy meter is a standard device to measure the power and energy of single- and three-phase applications and calculates each phase's power values and broadcasts this over VE.Can or Ethernet with a high rate. It has built-in Ethernet and VE.Can ports for connecting to a GX device and the split-core current transformers enable easy and quick installation without modifying existing wiring.
The energy meter works out of the box (the firmware may need to be updated; details can be found in the Firmware Updates chapter) as a grid meter for systems with a MultiPlus and Quattro. Configuration (via VictronConnect) is only required for changing the role and manual IP configuration rather than the default DHCP. Its data is displayed on a GX device such as the Cerbo GX or Ekrano GX, as well as in VictronConnect and the VRM Portal.
Specifications:
- Voltage Connection: Direct
- Input Voltage Range: L-N - 85 to 265V AC
- Input Voltage Range: L-L - 150 to 460V AC
- Frequency: 50/60Hz
- Current Connection: Via current transformers (included - wire length 640 mm/25.2")
- Rated Current: 75A
- VE.Can Communication Port: Two RJ45 connectors (VE.Can terminators included)
- Ethernet Communication Port: One RJ45 connector, Modbus UDP
- Refresh Rate: 100ms
- Type: Self-power supply via L1-N
- Switch or Circuit Breaker: Required as means of a disconnecting device (not included)
- External Fuse [1]: Required in the neutral conductor - 500mA (not included)
- Consumption: 1.45W / 3.1VA
- Material: Polycarbonate
- Color: Blue (RAL5012)
- Voltage Connection: Screw terminals 0.25 - 1.5 mm2 (24 - 16 AWG)
- Current Transformer Connection: Pluggable screw terminals (included)
- Protection Category: IP20
- Weight: 370 g (including packaging)
- Dimensions: 3.5" x 2.8" x 2.3" (90 x 71 x 59 mm)
- Indoor/Outdoor Usage: Indoor only
- Operating Temperature: From -10 to +55 °C
- Storage Temperature: From -20 to +70 °C
- Relative Humidity: < 90% non-condensing
- Altitude: 2000 m (6562')
- Mains Supply Voltage Fluctuations: ±0.1Vin
- Overvoltage Category: Cat. III
- Pollution Degree: 2
Included
- Victron VM-3P75CT with 3 input terminal blocks
- 3x Split-core current transformer, wired ready for connection
- Wire Length: 25.3" (640 mm)
- VE.Can terminators (2 pieces)
