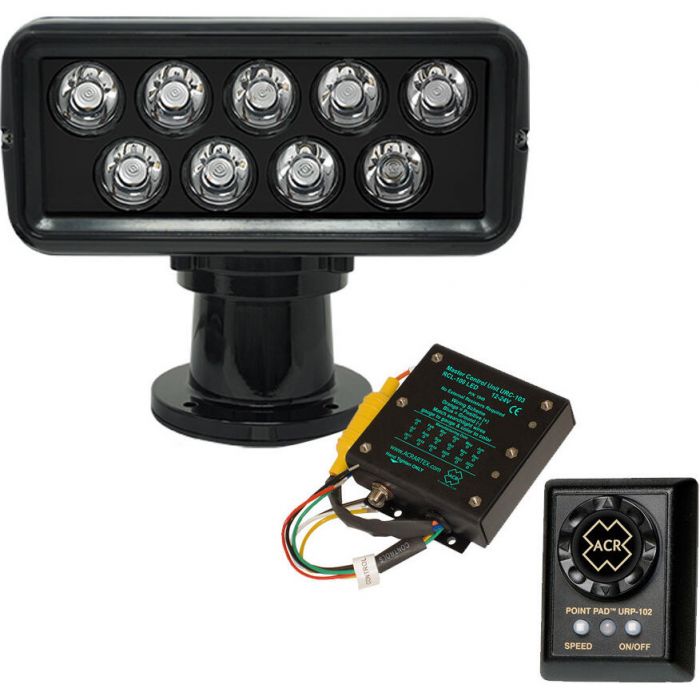

ACR RCL-100 LED Searchlight with URC-103 Master Controller & URP-102 Point Pad

The ACR RCL-100 LED searchlight features a durable aluminum housing with a powerful 9-LED array delivering over 220,000 candelas. It offers full 360 deg. rotation and precise elevation control for versatile lighting applications.

Features:

• High-intensity LED array providing bright illumination with low power consumption
• Weather-sealed aluminum housing designed for long-lasting outdoor use
• Continuous 360 deg. rotation with two-speed motor for flexible positioning
• Precise elevation control with 9 deg. up and 17 deg. down adjustment
• Remote-controlled operation via wired Point Pad with surface and flush mount options
• Automatic monthly rotation to prevent corrosion and maintain electrical contacts
• Efficient LED technology rated for up to 40,000 hours of operation
• Triple-primed finish with UV stabilizer for enhanced durability in harsh environments
• Includes a 15' wiring harness for easy installation
• Compact design with a small footprint suitable for various mounting setups

Specifications:

• Beam Angle: 7 deg. vertical x 7 deg. horizontal
• Elevation Angle: 9 deg. up, 17 deg. down
• Rotation Speed: 31 deg./sec fast, 20 deg./sec slow
• Elevation Speed: 2.8 deg./sec
• Lamp: 9 LED array
• Peak Candela: 220,000 cd
• Material: 518 die-cast aluminum
• Weight: 7.2 lbs (3.2 kg)
• Dimensions (L x W x H): 8" x 9" x 8" (20.3 x 22.9 x 20.3 cm)
• Footprint Diameter: 4.75" (121 mm)
• Power: 12V/24V DC
• Wiring Harness Length: 15' (4.57 m)

Compatibility:

• Works with mastercontroller URC-103 and point pad controller
• Supports up to three wired point pad remotes for expanded control

Included:

• (1) x RCL-100 LED searchlight
• (1) x Master controller
• (1) x Wired point pad controller
• (1) x Point pad installation kit
• (1) x 15' wiring harness
