Item #932632

Airmar B150 Chirp-Ready Titled Element Transducer - 8-Pin SI-TEX

$656.19
                  Want an email once available?

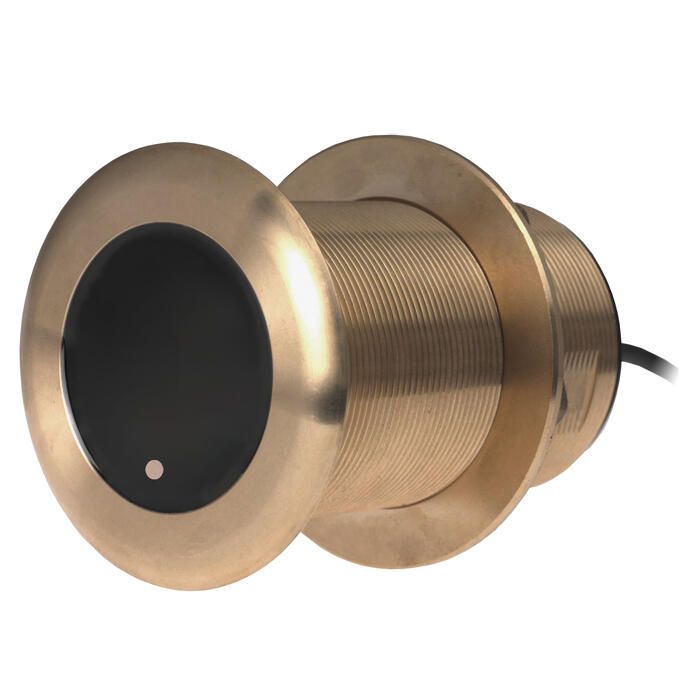

                  Image of : Airmar B150 Chirp-Ready Titled Element Transducer - 8-Pin SI-TEX Airmar B150 Chirp-Ready Titled Element Transducer - 8-Pin SI-TEX Item # 932632

                  Description

                  Unlock the true potential of your fishfinder with the superior quality and performance of an AIRMAR Chirp-ready transducer.

                  Features:

                  • Depth and fast-response water-temperature sensor
                  • 300of power for more detail at greater depths
                  • Low-profile, thru hull housing provides good resolution at speed when properly installed flush to the hull
                  • Bronze housing for use on stepped, planing or displacement hull
                  • Fixed 0° tilt angle that compensates for 0° to 7° hull deadrise
                  • Corrects for the hull deadrise by orientating the beam directly down
                  • Medium frequency: 95 to 155 kHz
                  • Ideal for freshwater, inshore or coastal fishing in shallow to medium depths
                  • 26° to 17° beamwidth
                  • Maximum depth performance to 183 m (600')
                  • Narrow beam angle is perfect for detecting fish holding close to structures and suspended fish
                  • 60 kHz of total bandwidth from one transducer
                  • Exclusive Xducer ID® technology
                  • Automatic configuration of echosounder to transducer - enables the echosounder to adapt to the transducer connected, providing an optimized system
                  • Continuous monitoring of ceramic operating temperatures
                  • Transducer profile information can be presented on the OEM echosounder display
                  • 8-Pin cable end for use with compatible SI-TEX sounders

                  Specifications:

                  • Fixed tilt angle: 0,12, or 20 degrees
                  • Chirp band: Medium
                  • Frequency: 95 to 155 kHz
                  • Beam width: 26°-17°
                  • Recommended boat length: Up to 8 m (25')
                  • Hull material: Fiberglass or wood
                  • Acoustic window: Urethane
                  • Transducer element: One internal broadband ceramic assembly
                  • Hole diameter: 51 mm or 2"
                  • Weight: 1.4 kg (3 lbs.)

                  Installation Instructions

                  Data Sheet (2.58 MB)

                  Part Numbers for Airmar B150 Chirp-Ready Titled Element Transducer - 8-Pin SI-TEX

                  Product Options: 3
                  PRODUCT OPTION ITEM # MFR. PRODUCT # AVAILABILITY
                  0 deg. Medium 932633 B150C-0-M-BB In Stock: Leaves Warehouse: 3 to 4 days
                  12 deg. Medium 932634 B150C-12-M-BB In Stock: Leaves Warehouse: 3 to 4 days
                  20 deg. Medium 932635 B150C-20-M-BB In Stock: Leaves Warehouse: Same Day
