Airmar SS75 High CHIRP Thru-Hull Transducer

$1,028.24 - $1,217.24
                  Want an email once available?

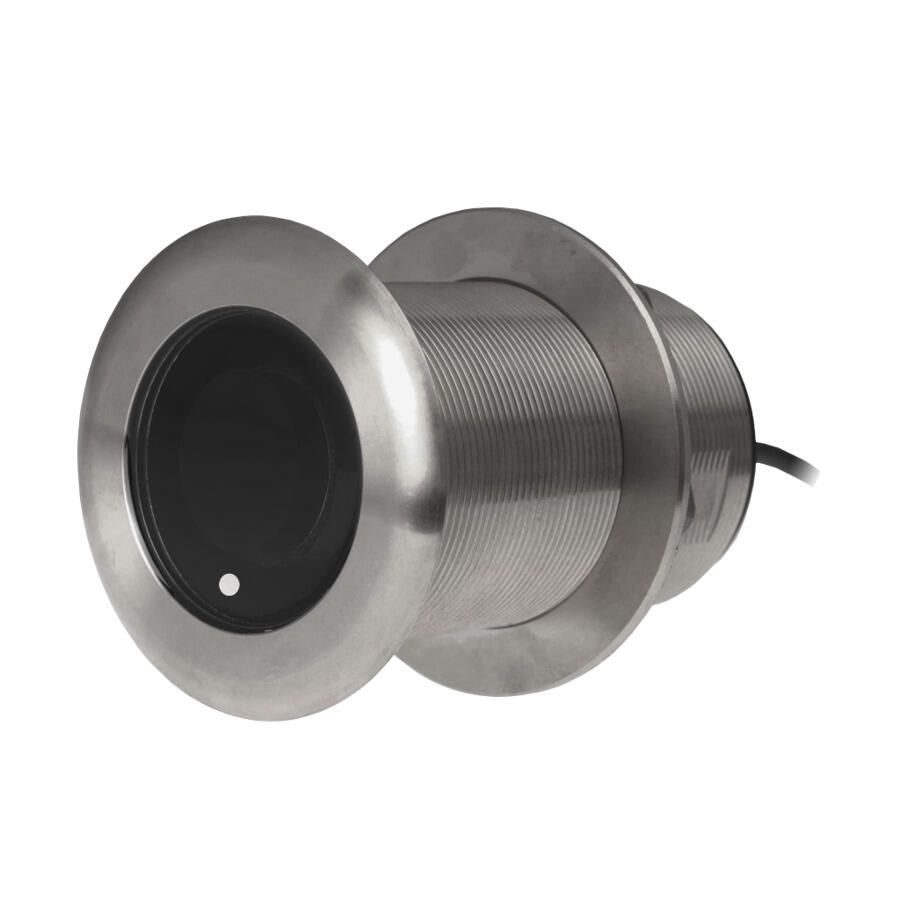

                  Image of : Airmar SS75 High CHIRP Thru-Hull Transducer Airmar SS75 High CHIRP Thru-Hull Transducer Item # 1077944

                  Description

                  Airmar's low-profile SS75 High CHIRP-ready, transducer is the perfect addition to smaller boats such as center consoles. The high-frequency band has a narrow beamwidth, excellent for pinpointing fish holding tight to wrecks, reefs, and other structure. High frequency also shows amazing target separation on baitfish and schooling gamefish. The SS75 High CHIRP transducer, operating at 130 to 210 kHz, delivers up to 80 kHz of total bandwidth in just one installation for outstanding bottom detail and fish-target resolution.

                  Features:

                  • Depth and fast-response water-temperature sensing
                  • 600W of power with a maximum depth of 700' (214 m)
                  • High frequency: 130 to 210 kHz
                    • 15 to 9 deg. beamwidth
                    • High frequency delivers great shallow-water performance, bottom detail and clear fish-target returns
                  • Low-profile, thru-hull housing provides good display resolution at speed when installed properly
                  • Recommended for stepped, planing, or displacement hull
                  • Stainless steel housing for use in all hull materials
                  • Patented Xducer ID® technology

                  Specifications:

                  • Transducer tilt options:
                    • 0 deg. tilt angle that compensates for 0 to 7 deg. hull deadrise
                    • 20 deg. tilt angle that compensates for 16 to 24 deg. hull deadrise
                  • Acoustic window: Urethane
                  • Cable length: 33' (10 m)
                  • Connector: Model dependent
                  • Frequency band: High
                  • Functions: Depth/temperature
                  • Hole size: Fiberglass or wood hull - 70 mm or 2 13/16", Metal hull - 79 mm or 3 1/8"
                  • Hull material: Compatible with all hull materials
                  • Material: Stainless steel
                  • Max deadrise: Up to 24 deg.
                  • Max deadrise angle: 24 deg.
                  • Max depth: 900' (274 m)
                  • Max vessel LOA: Up to 26' (8 m)
                  • Medium frequency: 80-130 kHz
                  • Medium frequency beamwidth: 24 - 16 deg.
                  • Mounting style: Tilted element thru-hull
                  • Power rating: 600W
                  • Retractable housing: No
                  • Single or dual frequency: CHIRP-ready single-band
                  • Tilted element: Yes
                  • Weight: 3 lbs (1.4 kg)

                  Part Numbers for Airmar SS75 High CHIRP Thru-Hull Transducer

                  Product Options: 26
                  PRODUCT OPTION ITEM # MFR. PRODUCT # AVAILABILITY
                  0 deg. Bare Connector 1077945 SS75C-0-H-0 In Stock: Leaves Warehouse: 3 to 4 days
                  20 deg. Bare Connector 1077946 SS75C-20-H-0 In Stock: Leaves Warehouse: 3 to 4 days
                  0 deg. #9 Connector Humminbird 1077947 SS75C-0-H-HB In Stock: Leaves Warehouse: 3 to 4 days
                  20 deg. #9 Connector Humminbird 1077948 SS75C-20-H-HB In Stock: Leaves Warehouse: 3 to 4 days
                  0 deg. 14-Pin Humminbird 1077949 SS75C-0-H-14HB In Stock: Leaves Warehouse: 3 to 4 days
                  20 deg. 14-Pin Humminbird 1077950 SS75C-20-H-14HB In Stock: Leaves Warehouse: 3 to 4 days
                  0 deg. 21-Pin Humminbird 1077951 SS75C-0-H-21HB In Stock: Leaves Warehouse: 3 to 4 days
                  20 deg. 21-Pin Humminbird 1077952 SS75C-20-H-21HB In Stock: Leaves Warehouse: 3 to 4 days
                  0 deg. 10-Pin Furuno 1077953 SS75C-0-H-10F In Stock: Leaves Warehouse: 3 to 4 days
                  20 deg. 10-Pin Furuno 1077954 SS75C-20-H-10F In Stock: Leaves Warehouse: 3 to 4 days
                  0 deg. 12-Pin Furuno 1077955 SS75C-0-H-12F In Stock: Leaves Warehouse: 3 to 4 days
                  20 deg. 12-Pin Furuno 1077956 SS75C-20-H-12F In Stock: Leaves Warehouse: 3 to 4 days
                  0 deg. 11-Pin Raymarine 1077957 SS75C-0-H-11R In Stock: Leaves Warehouse: 3 to 4 days
                  20 deg. 11-Pin Raymarine 1077958 SS75C-20-H-11R In Stock: Leaves Warehouse: 3 to 4 days
                  0 deg. 8-Pin Garmin 1077959 SS75C-0-H-8G In Stock: Leaves Warehouse: 3 to 4 days
                  20 deg. 8-Pin Garmin 1077960 SS75C-20-H-8G In Stock: Leaves Warehouse: 3 to 4 days
                  0 deg. 12-Pin Garmin 1077961 SS75C-0-H-12G In Stock: Leaves Warehouse: 3 to 4 days
                  20 deg. 12-Pin Garmin 1077962 SS75C-20-H-12G In Stock: Leaves Warehouse: 3 to 4 days
                  0 deg. 7-Pin Navico 1077963 SS75C-0-H-BL In Stock: Leaves Warehouse: 3 to 4 days
                  20 deg. 7-Pin Navico 1077964 SS75C-20-H-BL In Stock: Leaves Warehouse: 3 to 4 days
                  0 deg. 9-Pin Navico 1077965 SS75C-0-H-9N In Stock: Leaves Warehouse: 3 to 4 days
                  20 deg. 9-Pin Navico 1077966 SS75C-20-H-9N In Stock: Leaves Warehouse: 3 to 4 days
                  0 deg. 8-Pin Si-Tex 1077967 SS75C-0-H-BB In Stock: Leaves Warehouse: 3 to 4 days
                  20 deg. 8-Pin Si-Tex 1077968 SS75C-20-H-BB In Stock: Leaves Warehouse: 3 to 4 days
                  0 deg. 12-Pin MMC 1077969 SS75C-0-H-MM In Stock: Leaves Warehouse: 3 to 4 days
                  20 deg. 12-Pin MMC 1077970 SS75C-20-H-MM In Stock: Leaves Warehouse: 3 to 4 days
