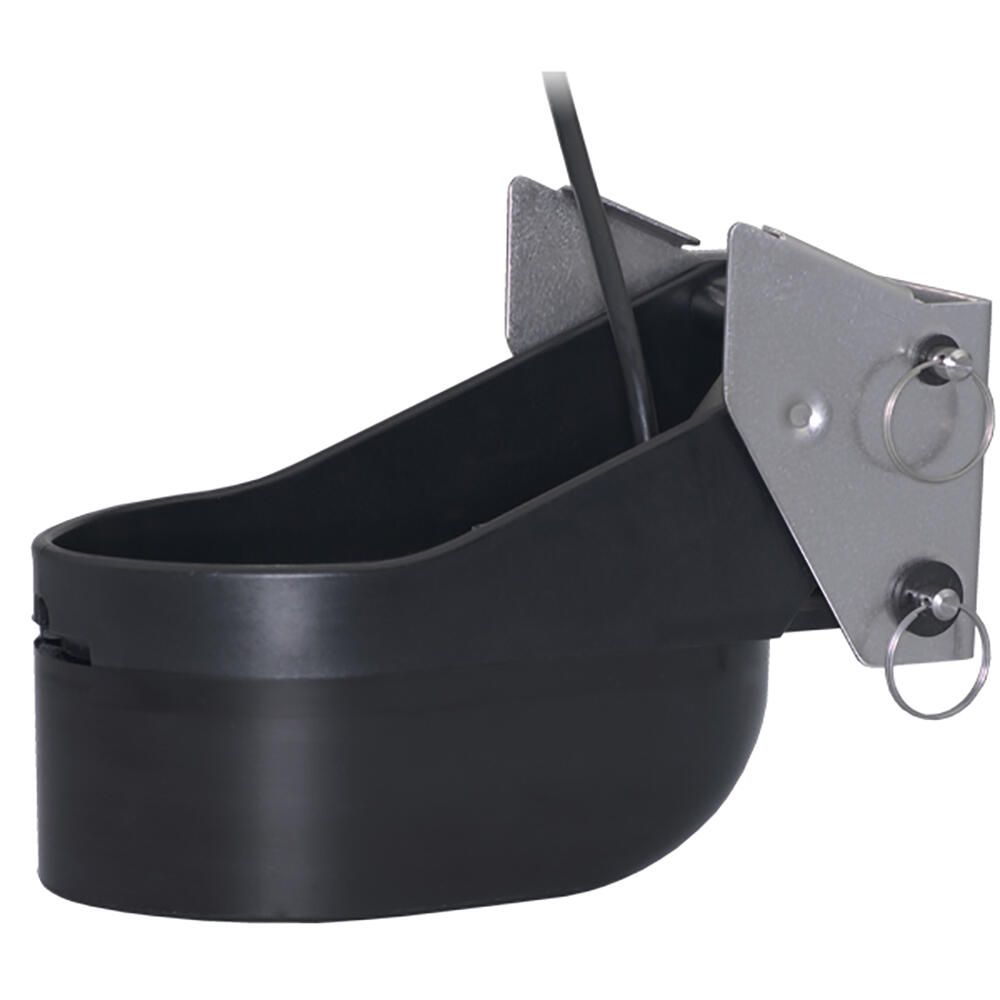

Airmar TM185 Chirp-Ready Transom Mount Transducer - 12-Pin MMC

Item: #1084461 | Part Number: Not Selected
$1,579.37 - $2,296.97
      • Choose an Option
        Out of Stock
        Important Info
        Want an email once available?
        Notify Me
        Total
        $1,579.37 - $2,296.97
        Description

        Unlock the true potential of your fishfinder with the superior quality and performance of Airmar's TM185 Chirp-ready transducer. Features: Depth and fast-response water-temperature sensor 1 kW of power for great shallow to mid-depth water performance Superior resolution with precise separation between baitfish and gamefish represented on the display with crisp...

        Image of : Airmar TM185 Chirp-Ready Transom Mount Transducer - 12-Pin MMC Airmar TM185 Chirp-Ready Transom Mount Transducer - 12-Pin MMC Item # 1084461

        Description

        Unlock the true potential of your fishfinder with the superior quality and performance of Airmar's TM185 Chirp-ready transducer.

        Features:

        • Depth and fast-response water-temperature sensor
        • 1 kW of power for great shallow to mid-depth water performance
        • Superior resolution with precise separation between baitfish and gamefish represented on the display with crisp images
        • Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats
        • Exclusive Xducer ID® technology
        • Automatic configuration of echosounder to transducer - enables the echosounder to adapt to the transducer connected, providing an optimized system
        • Continuous monitoring of ceramic operating temperatures
        • Transducer profile information can be presented on the OEM echosounder display

        Specifications:

        • Acoustic window: Urethane
        • Cable end connection: Airmar 12-Pin (MMC)
        • Medium frequency: 85 to 135 kHz
          • 16° to 11° beamwidth
        • High frequency: 150 to 250 kHz
          • Constant 25° beamwidth
          • Maximum depth: 500' (152 m)
        • Medium/Wide frequency: 60 to 100 kHz
          • 57° to 73° beamwidth
          • 16° average fore/aft
        • Functions: Depth/temperature
        • Recommended boat length: Up to 33' (10 m)
        • Hull material: Compatible with all hull materials
        • Power rating: 1 kW
        • Hull type: Fiberglass, wood, aluminum and steel
        • Single or dual frequency: Chirp-ready single-band
        • Cable length: 30' (9 m)
        • Weight: 8.9 lbs (4.2 kg)

        Installation Instructions
