Item #1077789

Airmar TM260 Plastic Transom Mount Transducer

$1,962.75 - $2,099.25
          Want an email once available?

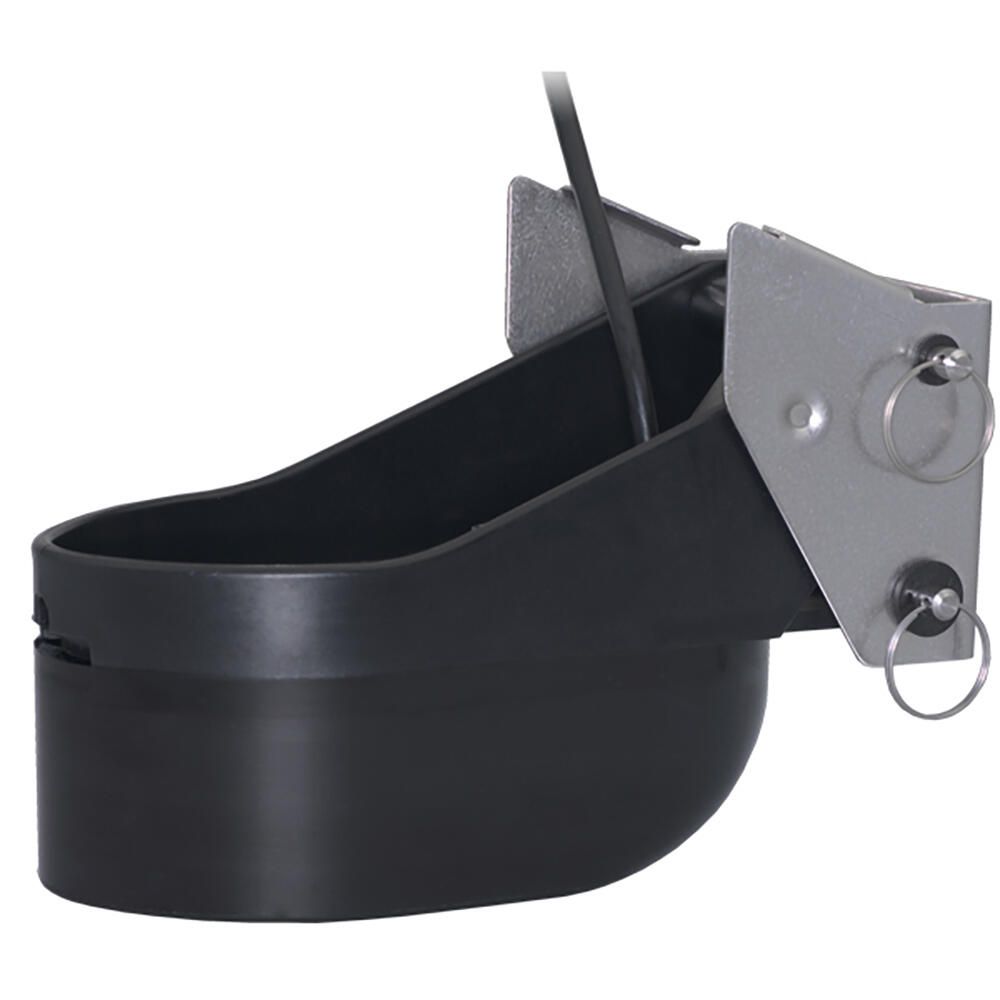

          Image of : Airmar TM260 Plastic Transom Mount Transducer Airmar TM260 Plastic Transom Mount Transducer Item # 1077789

          Description

          The TM260 comes with a rugged stainless-steel mounting bracket that is easy to install and has a streamlined shape. The performance of Airmar's "1 kW, 260 family" of transducers is legendary. The combination of power and sensitivity has made this the high-performing transducer of choice with conventional fishfinders. Operating at 50 and 200 kHz, the narrow, 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs. The 50 kHz is excellent at deep-water detection, and the wide, 19° beam yields broad coverage under the boat.

          Features:

          • Depth and fast-response water-temperature sensing
          • 1 kW of power
          • Dual-frequency element:
            • 50 kHz with a 19 deg. beamwidth for depth performance to 2600' (800 m)
            • 200 kHz with a 6 deg. beamwidth for depth performance to 1000' (294 m)
          • Transom mount for installation on outboard or inboard/outboard powered boats
          • Stainless steel kick-up bracket locks in the "up" position and will not damage the transom
          • SEALCASTâ„¢, seamless, urethane housing for long life in the water
          • Patented Xducer ID® technology

          Specifications:

          • Cable length: 33' (10 m)
          • Conventional beam: 19/7 deg.
          • Connector: Model dependent
          • Frequency band: 50/200 kHz
          • Functions: Depth/temperature
          • Housing: Urethane/stainless bracket
          • Max deadrise: Up to 28 deg.
          • Max deadrise angle: 28 deg.
          • Max depth:
            • Low: 2600' (800 m)
            • High: 1000' (294 m)
          • Max vessel LOA: 33' (10 m) and above
          • Mounting style: Transom
          • Power rating: 1 kW
          • Single or dual frequency: Conventional dual frequency
          • Tilted element: No
          • Transom angle: up to 28 deg.
          • Weight: 8.9 lbs (4 kg)

          Product Brochure

          Installation Instructions

          Part Numbers for Airmar TM260 Plastic Transom Mount Transducer

          Product Options: 16
          PRODUCT OPTION ITEM # MFR. PRODUCT # AVAILABILITY
          #9 Connector Humminbird 1077790 TM260-HB In Stock: Leaves Warehouse: 3 to 4 days
          14-Pin Humminbird 1077791 TM260-14HB In Stock: Leaves Warehouse: 3 to 4 days
          21-Pin Humminbird 1077792 TM260-21HB In Stock: Leaves Warehouse: 3 to 4 days
          7-Pin Navico 1077793 TM260-BL In Stock: Leaves Warehouse: 3 to 4 days
          9-Pin Navico 1077794 TM260-9N In Stock: Leaves Warehouse: 3 to 4 days
          10-Pin Furuno 1077795 TM260-10F In Stock: Leaves Warehouse: Same Day
          6-Pin Garmin 1077796 TM260-6G In Stock: Leaves Warehouse: 3 to 4 days
          8-Pin Garmin 1077797 TM260-8G In Stock: Leaves Warehouse: 3 to 4 days
          6-Pin Navman 1077798 TM260-6N In Stock: Leaves Warehouse: 3 to 4 days
          7-Pin JRC/Simrad 1077799 TM260-7 In Stock: Leaves Warehouse: 3 to 4 days
          8-Pin Furuno 1077800 TM260-8F In Stock: Leaves Warehouse: 3 to 4 days
          8-Pin Si-Tex 1077801 TM260-8S In Stock: Leaves Warehouse: 3 to 4 days
          9-Pin Si-Tex 1077802 TM260-BB In Stock: Leaves Warehouse: 3 to 4 days
          9-Pin MM1 1077803 TM260-MM In Stock: Leaves Warehouse: 3 to 4 days
          7-Pin Raymarine 1077804 TM260-RAY In Stock: Leaves Warehouse: 3 to 4 days
          9-Pin Raymarine 1077805 TM260-RAYA In Stock: Leaves Warehouse: 3 to 4 days
