              Description

              Andersen's self-tailing winches are made with uncompromising quality, precision and reliability allowing you to manage your sails with the utmost confidence and efficiency. The full stainless self-tailing winch is beauty at work, enhancing the unique image of your boat and the sheer pleasure of beholding it. This winch is a...

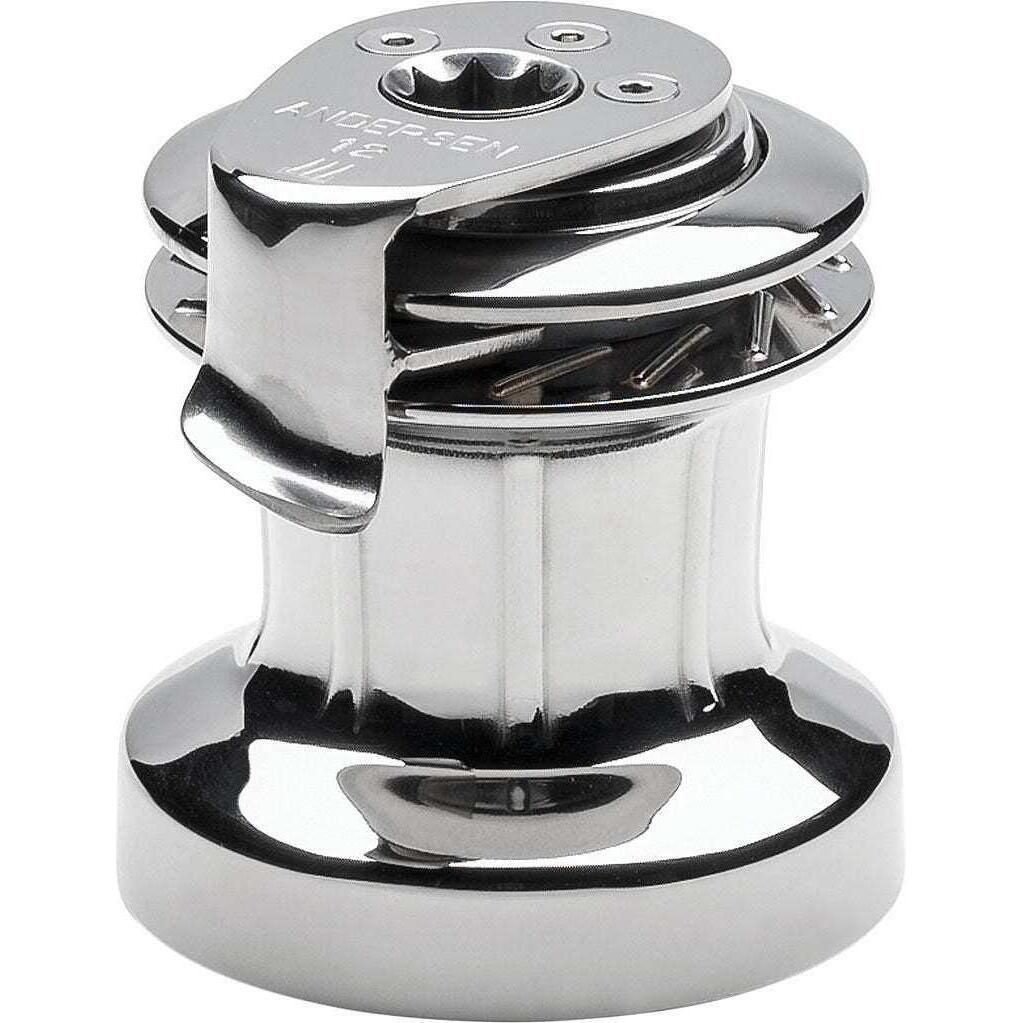

              Image of : Andersen Full Stainless Self-Tailing Winch Andersen Full Stainless Self-Tailing Winch Item # 860616

              Description

              Andersen's self-tailing winches are made with uncompromising quality, precision and reliability allowing you to manage your sails with the utmost confidence and efficiency. The full stainless self-tailing winch is beauty at work, enhancing the unique image of your boat and the sheer pleasure of beholding it. This winch is a prerequisite for the yachtsmen who take pride in making their yacht look its best.

              Features:

              • Smooth Power Rib© drum has vertical ribs on the surface providing maximum grip with minimum wear on lines
              • The self-tailing system adjusts automatically to suit various line sizes
              • Curved self-tailing arm gives a fair lead and is adjustable through 360°
              • Aluminum-bronze upper base plate is approximately 2 1/2 times stronger than traditional bronze
              • Stainless steel ball bearings
              • Clever design and material selection result in strength and weight similar to or lighter than aluminum winches
              • Drum design allows fewer turns on the winch making tacking and sail handling easier
              • Captive pawls and springs make servicing and greasing easy
              • Extremely strong machined AISI 316 cold-pressed stainless steel pawls
              • AISI 329 stainless steel drive shaft
              • Upper and lower bearings are designed to be as far apart as possible, resulting in increased support for the drum while increasing efficiency
              • Large-diameter bearing to absorb drum loads and increase efficiency
              • Convertible to electric using Andersen's modular system
              • Servicing is only required every 2 years with normal use
              • 3-Year Warranty

              Size 12 Specifications:

              • Model: 12 ST FS
              • Speed: Single
              • Drum Diameter (D): 2 3/4" (70 mm)
              • Base Diameter (B): 4 1/2" (115 mm)
              • Height (H): 5 1/8" (130 mm)
              • Line Entry (L): 1 3/4" (44 mm)
              • Weight: 5.73 lbs (2.6 kg)
              • Gear Ratio 1st Speed: 1.3:1
              • Gear Ratio 2nd Speed: NA
              • Power Ratio 1st Speed: 9.5:1
              • Power Ratio 2nd Speed: NA

              Size 18 Specifications:

              • Model: 18 ST FS
              • Speed: Single
              • Drum Diameter (D): 2 3/4" (70 mm)
              • Base Diameter (B): 4 3/4" (120 mm)
              • Height (H): 5 3/8" (136 mm)
              • Line Entry (L): 1 15/16" (50 mm)
              • Weight: 7.28 lbs (3.3 kg)
              • Gear Ratio 1st Speed: 2.6:1
              • Gear Ratio 2nd Speed: N/A
              • Power Ratio 1st Speed: 18.8:1
              • Power Ratio 2nd Speed: N/A

              Size 28 Specifications:

              • Model: 28 ST FS
              • Speeds: Two
              • Drum Diameter (D): 2 3/4" (70 mm)
              • Base Diameter (B): 4 15/16" (125 mm)
              • Height (H): 5 15/16" (151 mm)
              • Line Entry (L): 2 9/16" (65 mm)
              • Weight: 9.04 lbs (4.1 kg)
              • Gear Ratio 1st Speed: 1.3:1
              • Gear Ratio 2nd Speed: 3.7:1
              • Power Ratio 1st Speed: 9.5:1
              • Power Ratio 2nd Speed: 26.5:1

              Size 34 Specifications:

              • Model: 34 ST
              • Speeds: Two
              • Drum Diameter (D): 2 3/4" (70 mm)
              • Base Diameter (B): 4 15/16" (125 mm)
              • Height (H): 5 15/16" (151 mm)
              • Line Entry (L): 2 9/16" (65 mm)
              • Weight: 9.04 lbs (4.1 kg)
              • Gear Ratio 1st Speed: 1.3:1
              • Gear Ratio 2nd Speed: 4.7:1
              • Power Ratio 1st Speed: 9.5:1
              • Power Ratio 2nd Speed: 33.8:1

              Size 40 Specifications:

              • Model: 40 ST FS
              • Speeds: Two
              • Drum Diameter (D): 2 15/16" (75 mm)
              • Base Diameter (B): 6" (152 mm)
              • Height (H): 6 7/8" (174 mm)
              • Line Entry (L): 2 13/16" (71 mm)
              • Weight: 11.02 lbs (5 kg)
              • Gear Ratio 1st Speed: 1.3:1
              • Gear Ratio 2nd Speed: 6.0:1
              • Power Ratio 1st Speed: 8.5:1
              • Power Ratio 2nd Speed: 39.5:1

              Size 46 Specifications:

              • Model: 46 ST FS
              • Speeds: Two
              • Drum Diameter (D): 3 1/2" (89 mm)
              • Base Diameter (B): 7 1/16" (180 mm)
              • Height (H): 8 1/4" (209 mm)
              • Line Entry (L): 3 9/16" (90 mm)
              • Weight: 17.20 lbs (7.8 kg)
              • Gear Ratio 1st Speed: 2.8:1
              • Gear Ratio 2nd Speed: 8.4:1
              • Power Ratio 1st Speed: 15.5:1
              • Power Ratio 2nd Speed: 46.6:1

              Size 50 Specifications:

              • Model: 50 ST
              • Speeds: Two
              • Drum Diameter (D): 3 1/2" (89 mm)
              • Base Diameter (B): 7 1/16" (180 mm)
              • Height (H): 8 1/4" (209 mm)
              • Line Entry (L): 3 9/16" (90 mm)
              • Gear Ratio 1st Speed: 2.8:1
              • Gear Ratio 2nd Speed: 8.8:1
              • Power Ratio 1st Speed: 15.7:1
              • Power Ratio 2nd Speed: 49.3:1

              Size 52 Specifications:

              • Model: 52 ST FS
              • Speeds: Two
              • Drum Diameter (D): 3 15/16" (106 mm)
              • Base Diameter (B): 7 7/8" (200 mm)
              • Height (H): 9" (228 mm)
              • Line Entry (L): 4 3/16" (106 mm)
              • Weight: 24.47 lbs (11.1 kg)
              • Gear Ratio 1st Speed: 3.2:1
              • Gear Ratio 2nd Speed: 10.5:1
              • Power Ratio 1st Speed: 16.2:1
              • Power Ratio 2nd Speed: 52.0:1

              Size 58 Specifications:

              • Model: 58 ST FS
              • Speeds: Two
              • Drum Diameter (D): 4 9/16" (115 mm)
              • Base Diameter (B): 9 1/16" (230 mm)
              • Height (H): 10 1/8" (257 mm)
              • Line Entry (L): 4 3/8" (111 mm)
              • Weight: 34.83 lbs (15.8 kg)
              • Gear Ratio 1st Speed: 3.7:1
              • Gear Ratio 2nd Speed: 13.1:1
              • Power Ratio 1st Speed: 16.1:1
              • Power Ratio 2nd Speed: 57.7:1

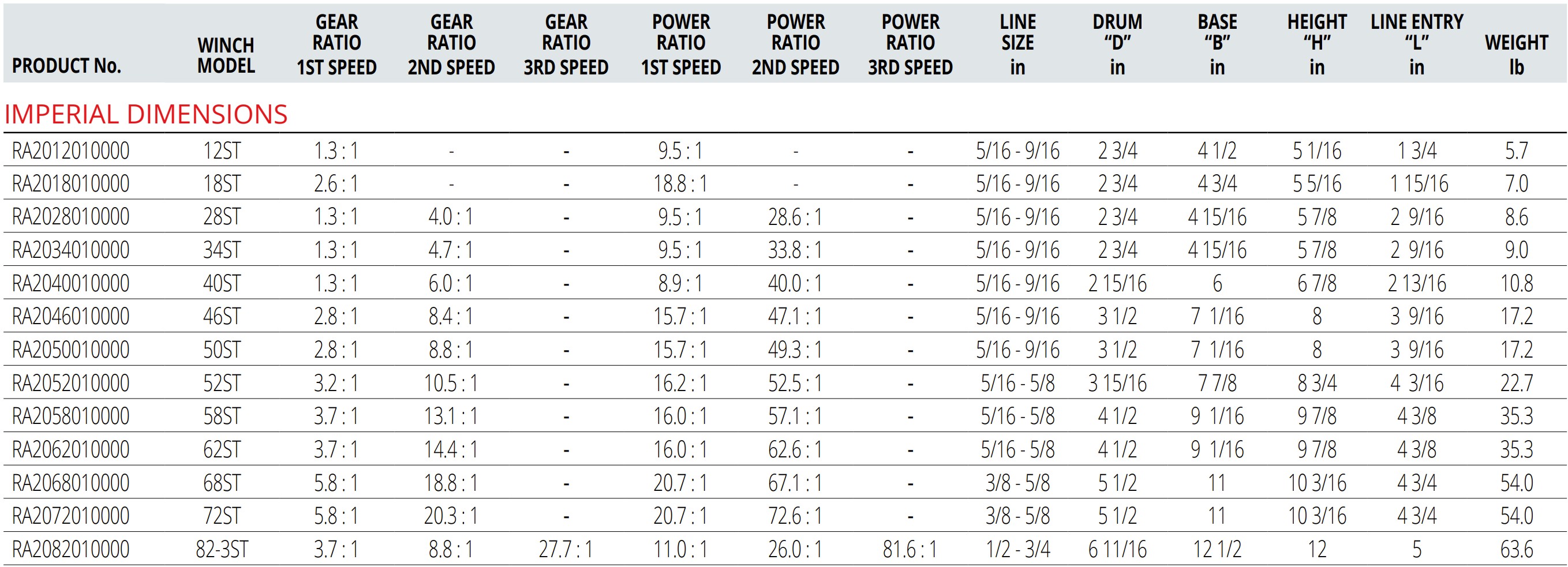

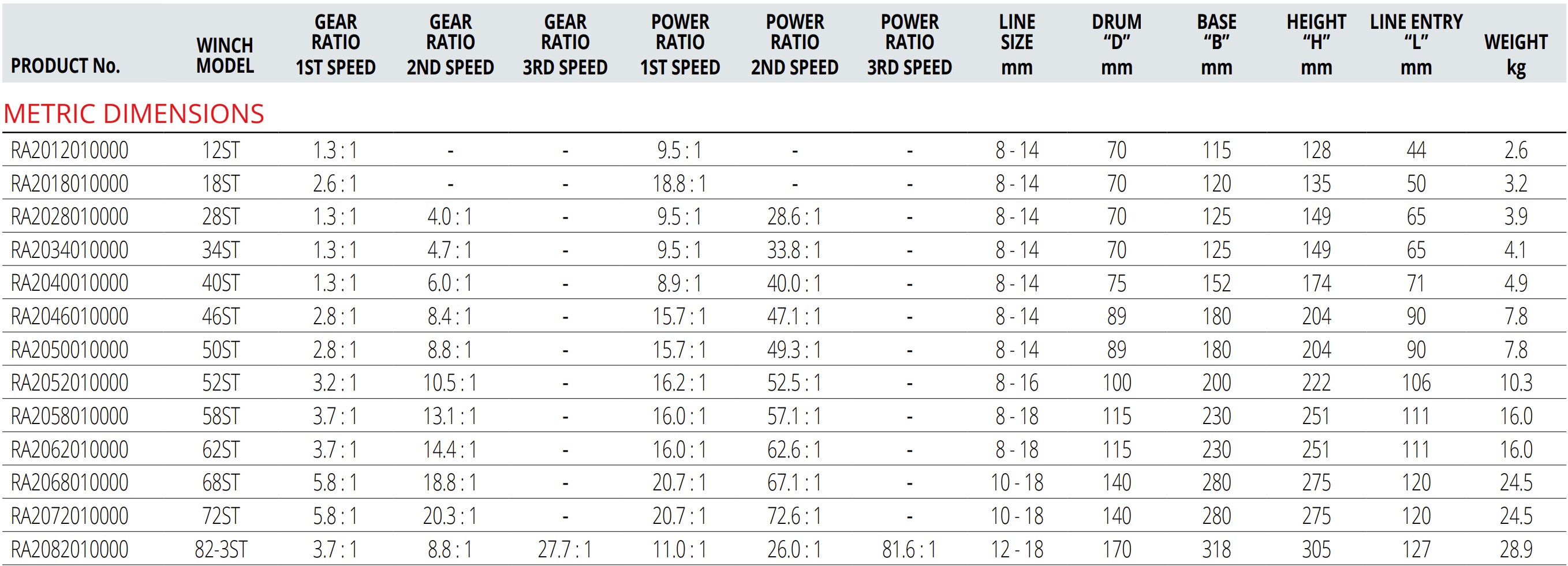

              Mounting Measurements and Selection Guide
