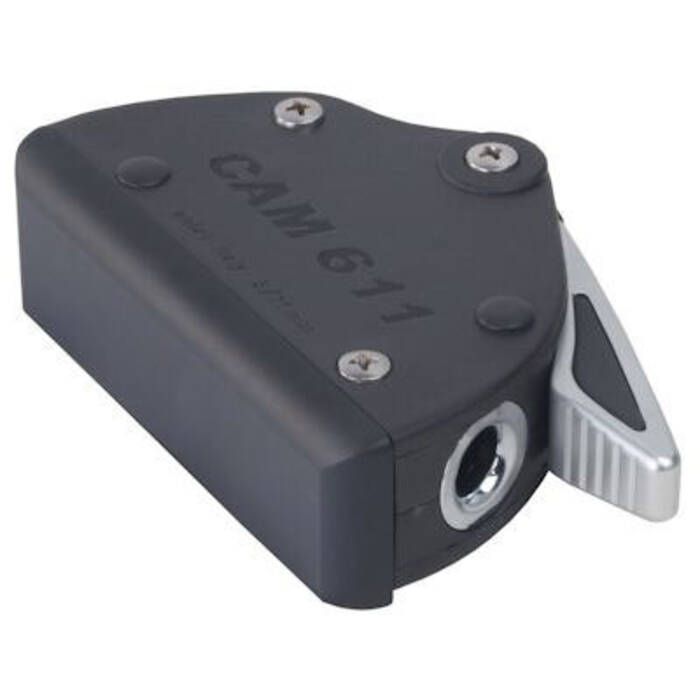

Antal V-Cam 611 Horizontal Rope Clutch with V-Cam

The Antal V-Cam 611 Horizontal Rope Clutch uses a patented system for rope locking. It works with pressure exerted on 3 sides of the line with higher friction and lower pressure. It uses a a V-shaped cam that improves the holding strength without damaging the line cover. The curved base-V-Cam pair increases the bearing surface, preventing the load from being concentrated at just one point. You can take in line with the lever closed and the line stops automatically in the new position with no slippage. The line can be released under load without the use of a winch because the Antal mechanism guarantees easy opening even under heavy conditions.

Features:

• New version of Cam 611 with V-Cam supports much higher loads - 400 kg on 6 mm line and 600 kg on 8 mm line
• Features box structure in UV-resistant resin with steel reinforcements, an extruded aluminum base, wear-resistant bronze cam mechanism, and stainless steel aligning bushing
• "Silver Series" - new ergonomic, polished and silver-anodized aluminum lever
• Clutch can be completely dismantled for simple maintenance
• Line retrieval can be achieved with lever closed
• Cam mechanism guarantees easy opening - even under heavy load

Specifications:

• Clutch Type: Horizontal single rope with V-Cam
• Line Size (rope diameter): 6 mm (1/4") or 8 mm (5/16")
• Working Load Limit: Specify 400 kg or 600 kg
• Dimensions: 33 mm H x 73 mm W x 118.5 mm L
