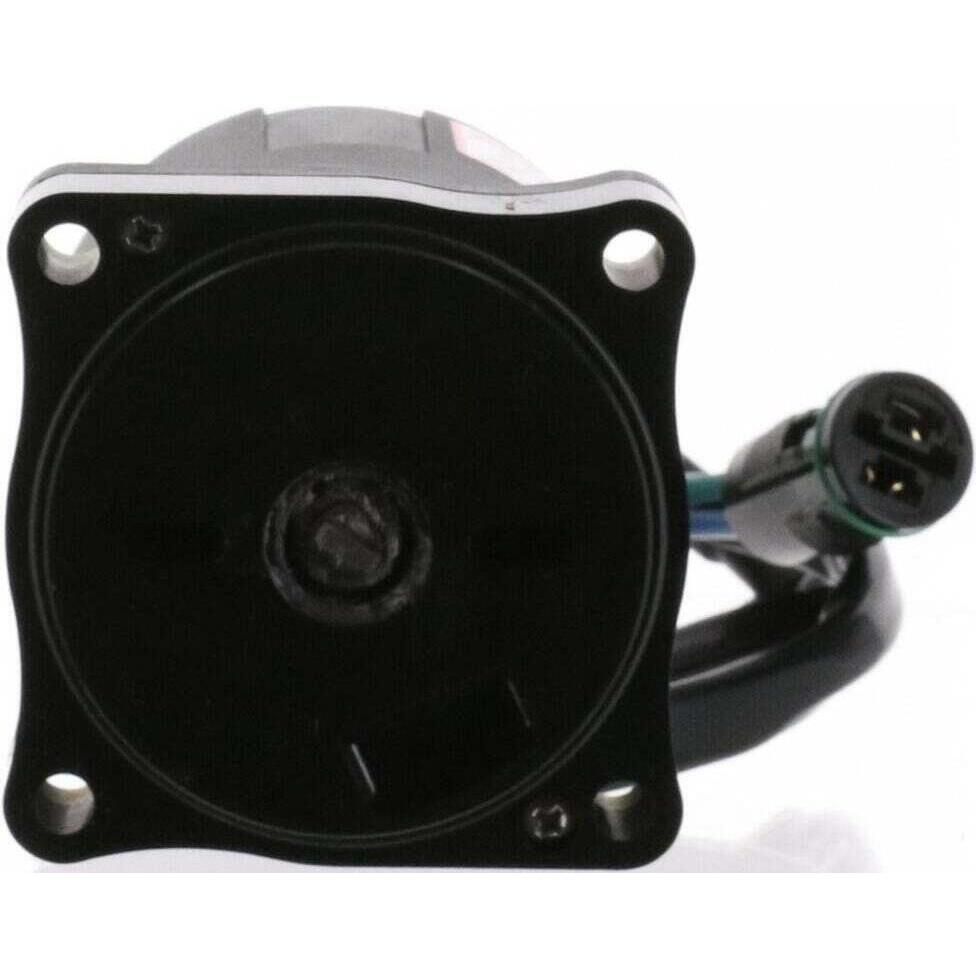

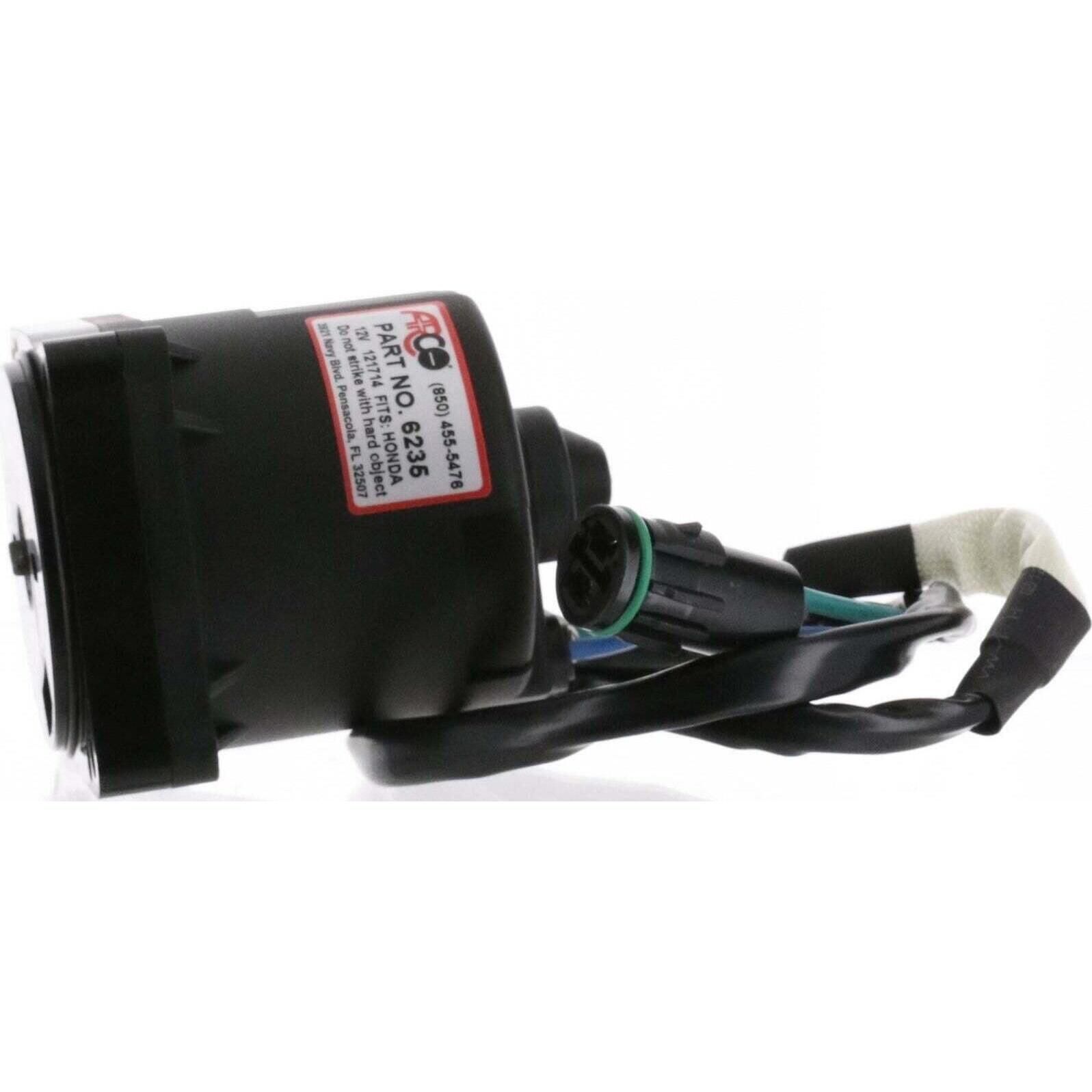

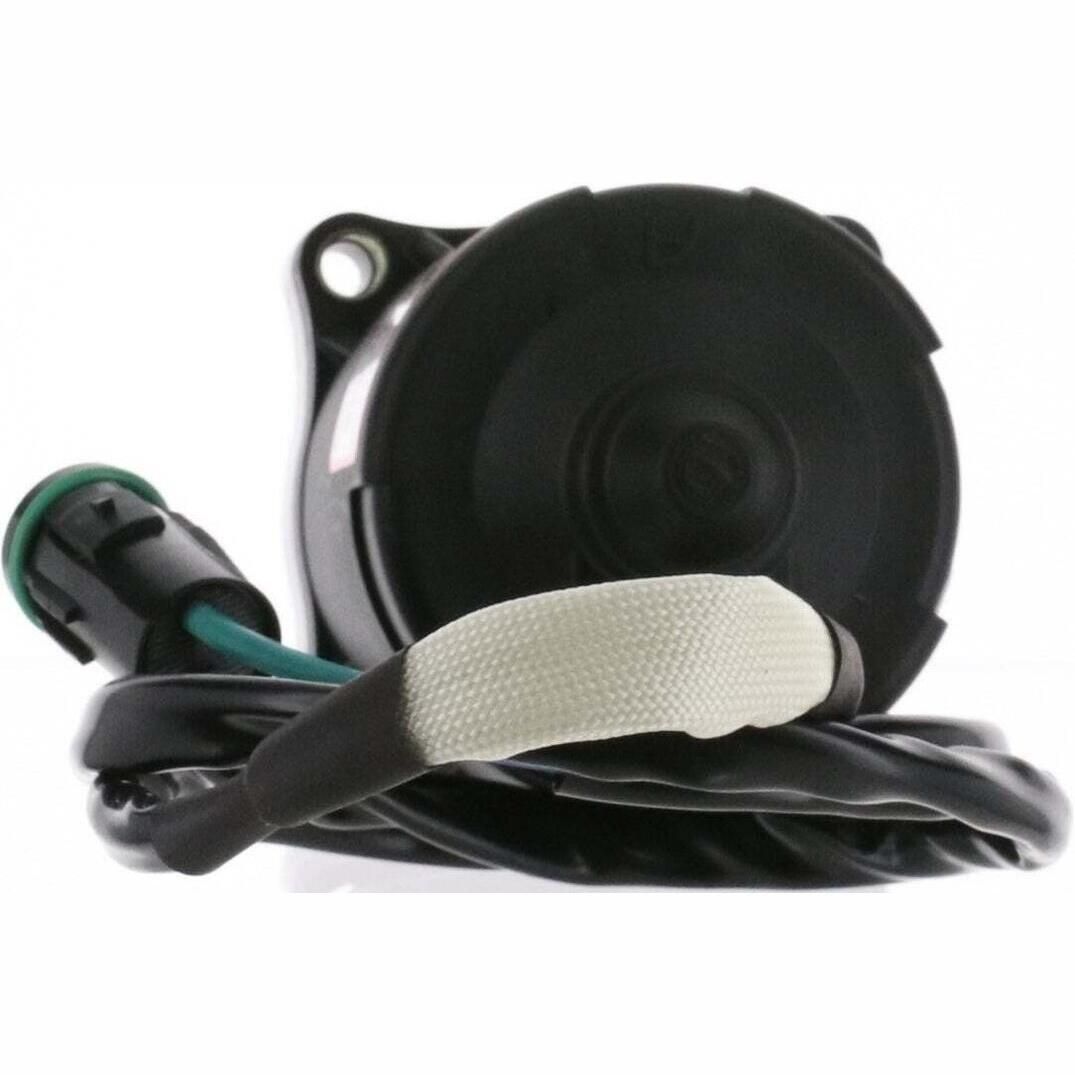

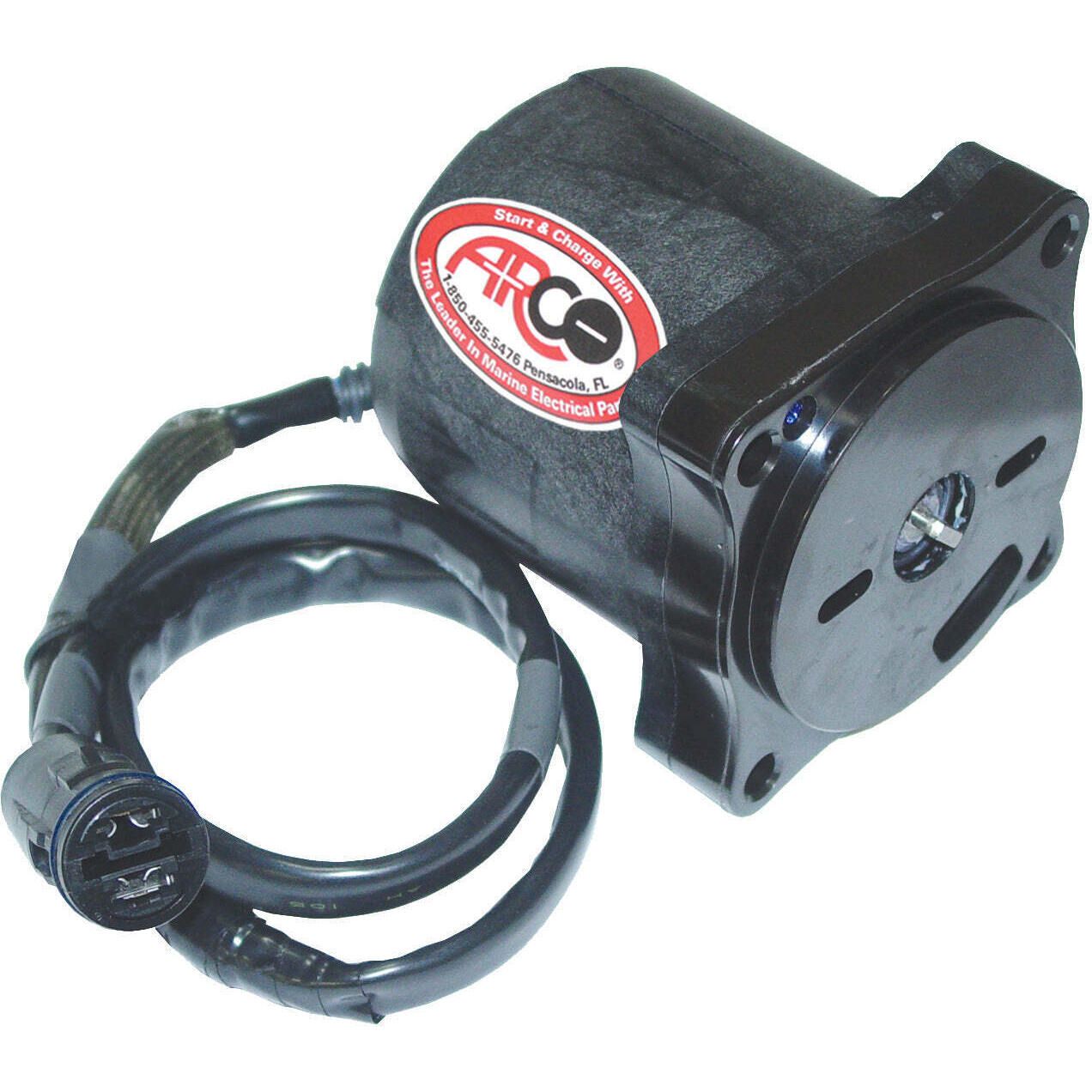

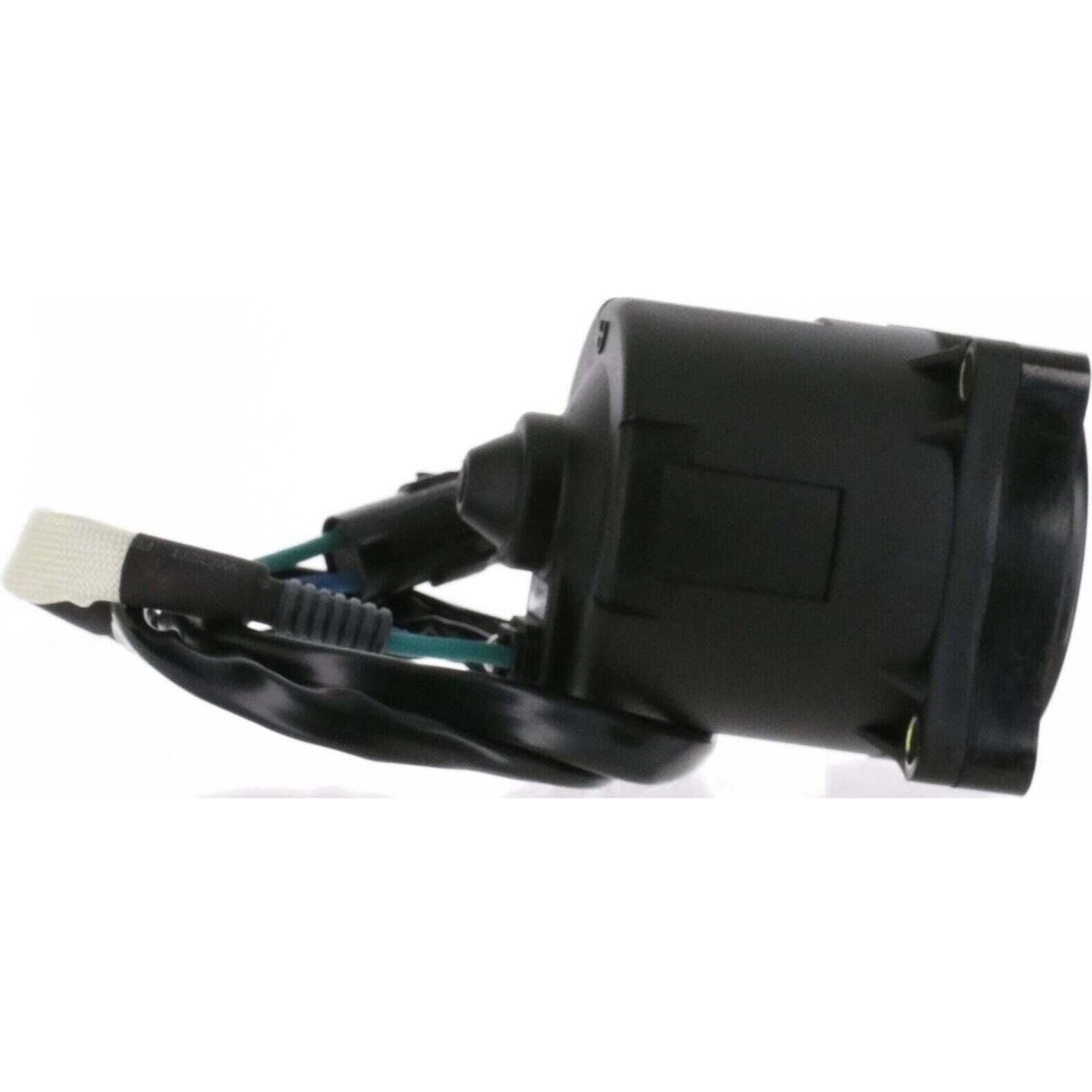

Arco OEM Replacement Tilt/Trim Motor - 6235

Features:

• All armatures tested to withstand 50 times operation voltage (12V)
• All motors performance tested at 5 different load levels
• All motors must meet or exceed OEM performance before being boxed
• Epoxy Powder coated for maximum corrosion protection
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance
• 4-bolt mount
• Round Plug-In Connector
• Includes O-ring

Fits:

• Honda 2004-Up BF135, BF150
• Suzuki 4 and 6-cylinder engines up to 300 HP, Round Plug-In Connector

Replaces Part Numbers:

• Honda Tilt Trim Motor: 36120-ZW1-701
• Honda Tilt Trim Motor: 36120ZW1702
• Honda Tilt Trim Motor: 36120-ZW1-702
• Honda Tilt Trim Motor: 36120ZW1703
• Honda Tilt Trim Motor: 36120-ZW1-703
• Honda Tilt Trim Motor: 36120ZX2013
• Honda Tilt Trim Motor: 36120-ZX2-013
• Honda Tilt Trim Motor: 36120ZY2013
• Honda Tilt Trim Motor: 36120-ZY2-013
• Honda Tilt Trim Motor: 36120-ZY3-013
• Honda Tilt Trim Motor: 36120-ZY3-023
• Honda Tilt Trim Motor: 36120-ZY6-013
• Honda Tilt Trim Motor: 36120-ZY9-003
• Suzuki Tilt Trim Motor: 38100-93J00
• Suzuki Tilt Trim Motor: 38100-93J01
• Suzuki Tilt Trim Motor: 38100-93J02
• Suzuki Tilt Trim Motor: 38100-93J03
• Suzuki Tilt Trim Motor: 38100-93J04
• Suzuki Tilt Trim Motor: 38100-96J00
• Suzuki Tilt Trim Motor: 38100-96J01
• Suzuki Tilt Trim Motor: 38100-96J11
• Suzuki Tilt Trim Motor: 38100-96J12
• Sierra Tilt Trim Motor: 18-6745
• Johnson Tilt Trim Motor: BJ115L4
• Johnson Tilt Trim Motor: BJ115X4
• Johnson Tilt Trim Motor: BJ60PL4
