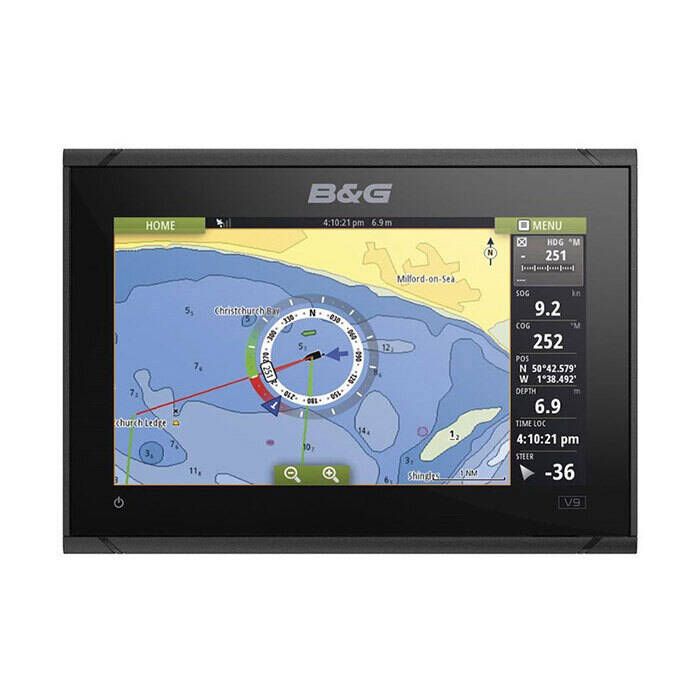

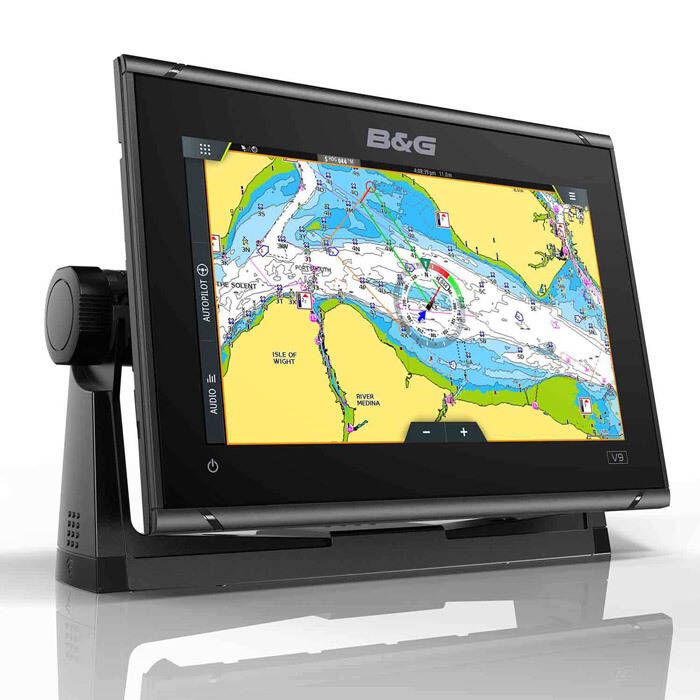

B&G Vulcan 9 Chartplotter with C-MAP Discover Charts - 000-13214-009

B&G's Vulcan 9 Chartplotter takes the guesswork out of sailing. Whether you're an experienced sailor or just starting out, the Vulcan 9 is packed with features that will help you get the most from your time on the water.

Features:

• Easy-to-use multi-touch display
• Dedicated sailing features for cruising or racing:
  • SailSteer: See crucial wind, speed, tide, heading, course over ground, layline and waypoint information, overlaid on one screen
  • SailingTime: Calculates the time you'll spend on each tack, taking into account wind and tidal effects, to give you an accurate ETA at your destination
  • RacePanel: Ensures you get the best start in the fleet, with time, distance and positioning information on a single clear display
  • LayLines: See your course and minimise your time spent beating with Laylines overlaid on your chart
• Easy to operate - connect Vulcan to an existing system and add basic sailing components
• Take control of your B&G autopilot from the Vulcan 9's touchscreen
• Know exactly where you are at all times with a built-in, high accuracy 10Hz GPS receiver
• Optimized for sleek flush mounting, standing only 8mm proud of the bulkhead, for a low-profile 'glass helm' look
• Expand your network and functionality of your Vulcan by adding onboard instruments, radar and sonar
  • HALO® Radar and ForwardScan™ ready
• Integrated Wi-Fi

Display Specifications:

• Size: 9"
• Resolution: 800 x 480
• Screen brightness: 1200 Nits
• Backlight color: White
• Viewing angles: 80° top/bottom, 80° left/right of center

Electrical Specifications:

• Recommended fuse rating: 3A
• Power consumption typical: 12W
• Power consumption (max): 20W
• Supply voltage: 12V DC (10 - 17V DC)

Connectivity Specifications:

• Ethernet: 1 x 5 pin yellow connector x 100 Mbit/s Radar and Sirius (USA only) connectivity only
• Radar compatibility: Halo, Broadband, HD Radars
• Sonar compatibility: Integrated CHIRP/DownScan/ orwardScan. Single 9 Pin Xsonic connector
• NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
• NMEA 0183: No connection but exports NMEA 0183 over WiFi
• Video In/Out: None
• WiFi: Internal
• Bluetooth: Internal
• GPS Antenna: Internal
• GPS Time to first fix: Cold start less than 90 seconds exposed to open sky, Satellite reacquisition 5 sec
• GPS Correction: WASS, MSAS, EGNOS, GLONASS
• GPS Position accuracy: Horizontal Accuracy 3 m (9.8')
• GPS Receiver channels: 32 Channels
• Update rate: 10 Hz
• AIS: Receive AIS data over NMEA 2000 only

Environmental Specifications:

• Operating temperature range: -15° C to +55° C (5° F to 131° F)
• Storage temperature range: -20° C to +60° C (4°F to 140°F)
• Waterproof rating: IPX 6 and 7
• Approvals compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
• Shock / vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1"

Physical Specifications:

• Mounting methods: Bracket or Panel
• Dimensions: 29.56" W x 6.71" H x 3.26" D (43 mm x 171 mm x 83 mm) (no bracket)
• Weight: 1.32 kg (2.9 lbs)

Software Specifications:

• Interface: Touch screen, ZC1 or ZC2 controller via NMEA 2000
• Supported languages: Standard Language Pack: English (US), English (UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocks: Asian Language Pack: English (US), Japanese, Korean, Thai, Chinese. Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish. Russia/Ukraine Language pack: English (US), English (UK), German, Spanish, French, Italian, Russian, Ukrainian. Middle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
• Supported cartography: Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
• Cartography included: C-MAP Discover Charts
• Supported N2K PGNs: Receive 59392, 59904, 60928, 126208, 126992, 126996, 127237, 127245, 127250, 127251, 127257, 127258, 127488, 127489, 127493, 127503, 127504, 127505, 127506, 127507, 127508, 127509, 128259, 128267, 128275, 129025, 129026, 129029, 129033, 129038, 129039, 129040, 129041, 129283, 129284, 129539, 129540, 129794, 129801, 129283, 129284, 129539, 129540, 129794, 129801, 129802, 129808, 129809, 129810, 130074, 130306, 130310, 130311, 130312, 130313, 130314, 130576, 130577, Transmit 126208, 126992, 126996,127237, 127250, 127258, 128259, 128267, 128275, 129025, 129026, 129029, 129283, 129284, 129285, 129539, 129540, 130074, 130306, 130310, 130311, 130312, 130577
• Weather: SiriusXM (USA only), GRIB
• Digital switching: BEP C-Zone, NaviOP
• Autopilot: Auto, Nav., No Drift, Follow up, Non-follow up, Standby, Wind, Wind NAV. (Boat type set to Sail)
  • Requires STBY button or Controller with STBY button to commission
• Autopilot maneuvers turn patterns: Tack/Gybe, Depth contour tracking
• Internal storage: 90MB
• Waypoints, routes and tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points
• External storage: 2 Micro SD slots, max. 32GB each. >32 GB cards require cards to be formatted to NTFS
• Multimedia: Via SonicHub2, FusionLink, Sirius, JL Audio. ( USA only, AUST. & NZ only)

In the Box:

• Vulcan 9 Chartplotter with C-MAP Discover Charts
• Power Cable, 4-Pin
• Vulcan 9 Suncover
• GO9/Vulcan 9 Replacement Bezel
• GO9/Vulcan 9 Dash Mount Kit
