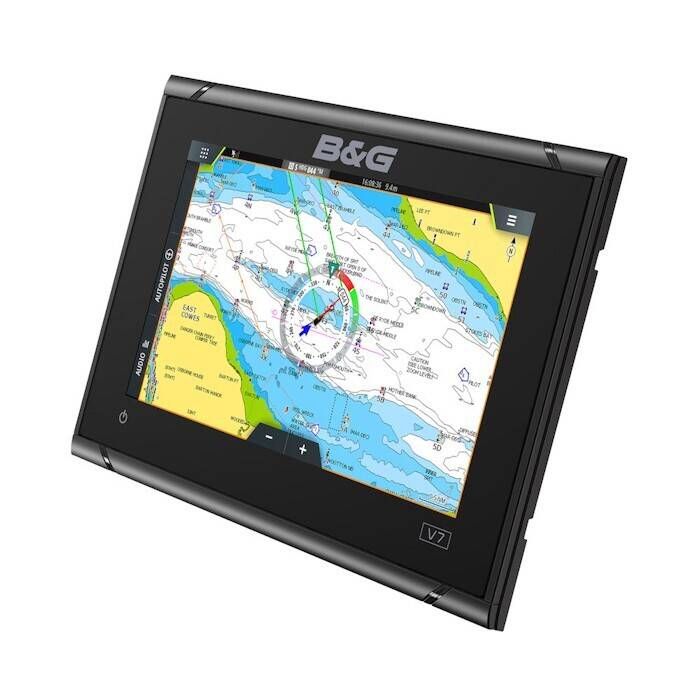

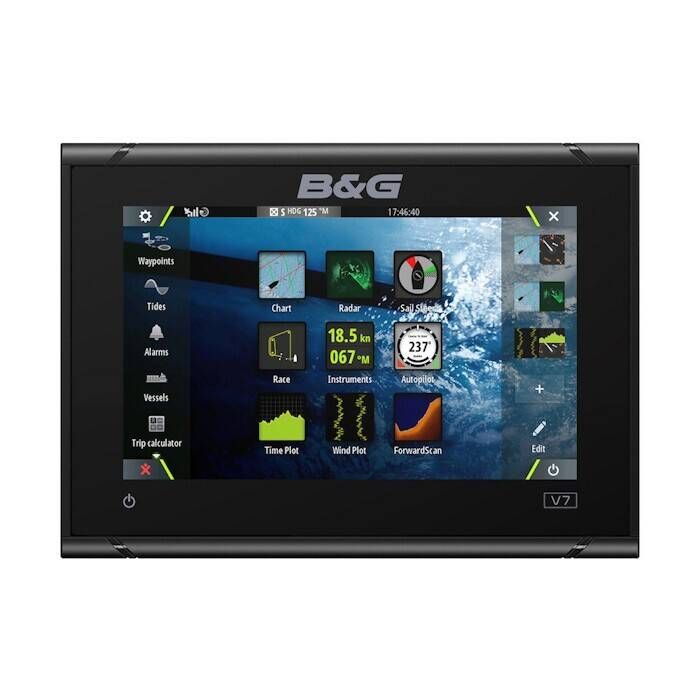

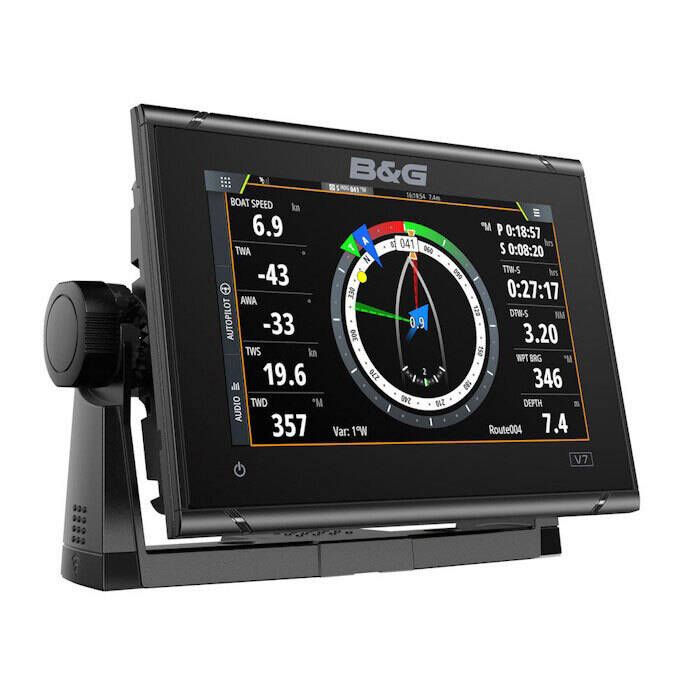

B&G Vulcan7R Multifunction Display - 7" - Radar Display - 000-14082-001

B&G is Navico's sailboat line of products.They are nearly identical to their Simrad counterparts but have extra sailing software for use with wind and other sensors.They do include the same fishfinder/depthsounder as the Simrad GO7R.This includes ForwardScan capability. They do not market it as a fishfinder as powerboaters would use the Simrad variant.Therefore there are no models with transducers included.

B&G Vulcan has an easy-to-use, intuitive, multi-touch screen. Use the familiar pinch to zoom and swipe to pan actions to explore the many benefits to make your life on the water easier and safer; add waypoints and plan your route with ease. Dedicated Sailing features for cruising and racing. With B&G's award-winning sailing functions, you can see all of your key sailing data together on one screen, or overlaid on charts for the modern sailor's ultimate navigational view. Simply add sailing instruments and sensors to activate B&G SailSteer, which will provide an intuitive graphic display of your Boat Speed, Wind data, Heading, Tide, Wind Shift Sectors and even Laylines. For 100% integration it must be used with a Navico pilot. Some cross brand integration usually works, but is not guaranteed.

It's easy to add waypoints or plot a course; and with B&G SailingTime you'll see waypoint arrival times based on a sailing course and tidal effects, rather than a straight-line calculation. Simple integration: Get more from your Vulcan by expanding your system via the industry-standard NMEA 2000® network. You can add sailing instruments and sensors, as well as autopilot, Broadband Radar™, ForwardScan or SonicHub to create a system to suit your needs. Vulcan can be used as a secondary autopilot controller providing easy access to Intelligent Sail Steering, manual and auto steering functions, and Smart Maneuver functionality combined with intuitive menus for ultimate control.

B&G Broadband 3G or 4G Radar integrates with Vulcan to keep watch as you sail, with the ability to identify and track targets from 36 nautical miles away (4G) to right off the bow. With the addition of a ForwardScan transducer, you can see what lies ahead under the water with approaching depth information. Explore poorly-charted or unfamiliar waters confidently. Vulcan features built-in Wi-Fi and offers easy access to selected online services, including PredictWind weather forecasts and routing, via marina or smartphone hotspots. Or use the Wi-Fi to mirror the screen of your Vulcan 7 to a compatible smartphone or tablet, for a cost-effective dual-station solution you can take anywhere on board.

Features:

• Easy to use multi-touch display
• Dedicated sailing features for cruising or racing:
  • SailSteer
  • SailingTime
  • RacePane
  • Laylines
• Easy to integrate
  • Connect Vulcan to an existing system and add basic sailing components
• Broadband Radar and ForwardScan ready Integrated (Requires Transducer Sold Separately)
• Wi-Fi Control your B&G Pilot Instrument data display
  • The Wi-Fi can connect to your phone to allow you to view and control the display remotely
  • This works with everything except autopilots
  • You can also use your phone's data connection to use services like PredictWind
  • iOS and Android are supported.
    • App is free
    • PredictWind is a paid service
• Charts Supported Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
• SonicHub is basically a stereo without a screen.You use the Vulcan's screen to control the stereo
  • There are no video inputs on the Vulcan series
• The Vulcan has NMEA2000 so it can connect to compatible instruments, VHF, AIS, SonicHub, autopilots. Etc (Sonar it can only share the depth number, not video/fishfinding
  • Vulcan has no NMEA0183 connections
  • It can export NMEA0183 over Wi-Fi for systems that are not NMEA2000 capable
  • It works with NMEA2000 AIS transceivers

Specifications:

• Display
  • Resolution: 800x480
  • Screen brightness: 1200 nits
  • Size and type: 7" Diagonal High Visibility Color TFT LCD
  • Backlight color: White
  • Viewing angles: 80° top/bottom, 80° left/right of center
• Electrical
  • Recommended fuse rating: 3A
  • Power consumption(max): 20W
  • Power consumption nominal: 12W
  • Supply voltage: 12V DC (10 - 17V DC)
• Connectivity
  • Ethernet: (1) 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked)
  • Radar compatibility: Halo, Broadband, HD Radars
  • Sonar Integrated: CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic connector. Connection to any external sounder module is not supported
  • NMEA 2000: (1) NMEA 2000 Micro-C port, 1 LEN
  • NMEA 0183: No connection but exports NMEA 0183 over WiFi
  • Video In / Out: None
  • WiFi: Internal
  • Bluetooth: Internal
  • GPS antenna: Internal
  • GPS time to first fix: Cold start less than 90 seconds exposed to open sky, Satellite reacquisition 5 sec
  • GPS correction: WASS, MSAS, EGNOS, GLONASS, Galileo , BeiDou. Limited by network
  • GPS position accuracy:
    • Horizontal Accuracy 3 m (9.8')
  • GP receiver channels: 32 Channels
  • GPS update rate: 10 Hz
  • AIS Receive AIS data over NMEA 2000 only
• Environmental
  • Operating temperature range: -15° C to +55° C (5° F to 131° F)
  • Storage temperature range: -20° C to +60° C (4° F to 140° F)
  • Waterproof rating: IPX 6 and 7
  • Shock/vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002
  • EN 300 440-2, V1.4.1"
• Physical
  • Mounting methods: Bracket or Panel
  • Dimensions: W x H x D 197 mm x 141 mm x 82.7 mm (7.56" x 5.55" x 3.26") (no bracket)
• Software
  • Interface Touch screen, OP40 or OP50 controller via NMEA 2000
• Supported languages
  • Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish
• Supported cartography
  • Insight, Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts) Supported NMEA 2000 PGNs Receive only 59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B "CS" Static Data Report, Part A, 129810 AIS Class B "CS" Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage
• Supported NMEA 2000 PGNs Transmit and Receive
  • 61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect Configuration
• Supported NMEA 2000 PGNs Transmit only
  • 65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
• Weather
  • SiriusXM via WM-3 (USA only), GRIB
• Autopilot:
  • The Vulcan can be used as an Autopilot controller. If it is your only pilot controller, you need a Standby button
  • Not Recommend using this as your only AP controller but it is capable
  • Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, Wind, Wind NAV. ( Boat type set to Sail)
  • System requires STBY button or Controller with STBY button to commission the pilot
• Digital switching: BEP C-Zone
• Autopilot steering modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, Wind, Wind NAV. ( Boat type set to Sail)
• Autopilot maneuvers & turn patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
• Internal user data storage: 90 MB
• Waypoints, routes and tracks
  • Waypoints can be added at any time:
  • 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points
• External storage
  • 2 Micro SD slots, max. 32GB (format FAT32 each). >32 GB cards require cards to be formatted to NTFS
• Multimedia Via SonicHub2
  • SonicHub is a stereo without a screen
  • You use the Vulcan's screen to control the stereo
  • There are no video inputs on the Vulcan series
  • FusionLink
  • Sirius (USA only)
    • WM-3 is the model name for Navico's Sirius satellite weather module
    • It plugs into the Radar/Weather port on the display
    • There is only one port
    • If you want to use Radar AND Sirius Weather then an NEP-2 network expander port is required
• Compliance/Warranty Compliance CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1"

In the Box:

• (1) Display - VULCAN 7R - 7-inch Multifunction Display ( Sonar compatible chartplotter and radar display with global basemap
• 000-12372-001- Mounting Bracket Vulcan 7R
• 000-14230-001 - Bezel for B&G Vulcan 7R
• 000-14229-001 - Dash mount kit for B&G Vulcan 7R
• 000-14228-001 - Vulcan 7R Sun cover

Note: Broadband Radar and Transducer Sold Separately
