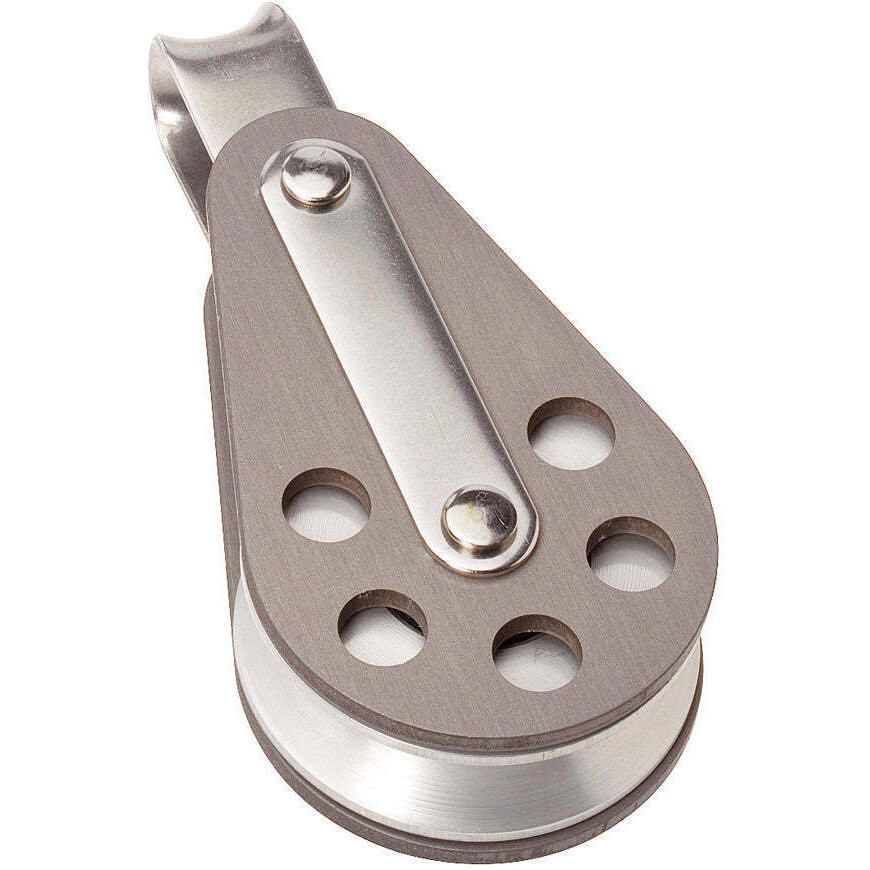

Barton Aluminum Fixed Eye Wire Rope Block

Barton cheeks are manufactured from marine grade aluminum, grey anodized for high UV-resistance and durability. Sheaves are precision turned from solid aluminum bar, ailver anodized and running on nylon bearings to reduce friction under load. Reinforcing plates, rivets, shackles and straps are all from 316 stainless steel.

Specifications:

• Sheave Size: 2" (51 mm)
  • Sheave Type: Plain
  • Maximum Rope Diameter: 1/2" (12 mm)
  • Maximum Wire Diameter: 1/8" (4 mm)
  • Breaking Load: 3,858 lbs (1,750 kg)
  • Safe Working Load: 1,929 lbs (875 kg)
• Sheave Size: 2 1/2" (63 mm)
  • Sheave Type: Plain
  • Maximum Rope Diameter: 5/8" (16 mm)
  • Maximum Wire Diameter: 3/16" (5 mm)
  • Breaking Load: 6,614 lbs (3,000 kg)
  • Safe Working Load: 3,307 lbs (1,500 kg)
