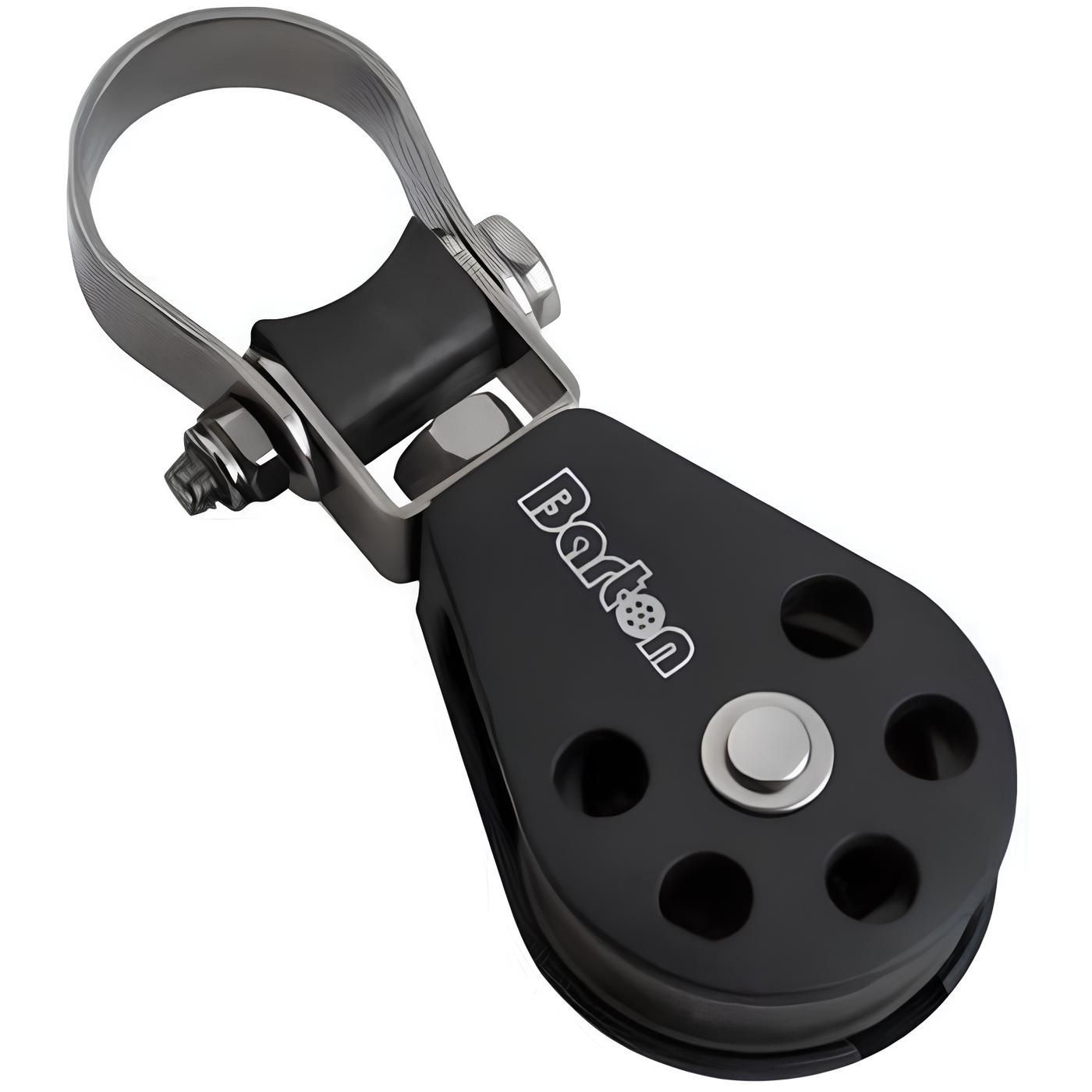

Barton Ball Bearing Stanchion Lead Single Block

Provides high performance and load values in a variety of assemblies. The range has an internal Stainless Steel frame and precision components.

Specifications:

• Bearing Type: Ball Bearing
• Size 2:
  • Sheave Size: 1 3/8" (35 mm)
  • Max Rope Diameter: 5/16" (8 mm)
  • Safe Working Load: 573 lbs (260 kg)
  • Breaking Load: 1,631 lbs (740 kg)
  • Maximum Stanchion Size: 1" (25 mm)
• Size 3:
  • Sheave Size: 1 25/32" (45 mm)
  • Maximum Rope Diameter: 3/8" (10 mm)
  • Safe Working Load: 595 lbs (270 kg)
  • Breaking Load: 1,763 lbs (800 kg)
  • Length: 4 11/32" (110 mm)
• Size 4/5:
  • Sheave Size: 2 9/32" (58 mm)
  • Maximum Rope Diameter: 7/16" (12 mm)
  • Safe Working Load: 1,157 lbs (525 kg)
  • Breaking Load: 3,307 lbs (1,500 kg)
  • Maximum Stanchion (Tube) Size: 1" (25 mm)
