Item #861737

Barton Size 2 Recirculating Ball Bearing Traveler Kit with Car Cleats - 24902

$957.98
Want an email once available?

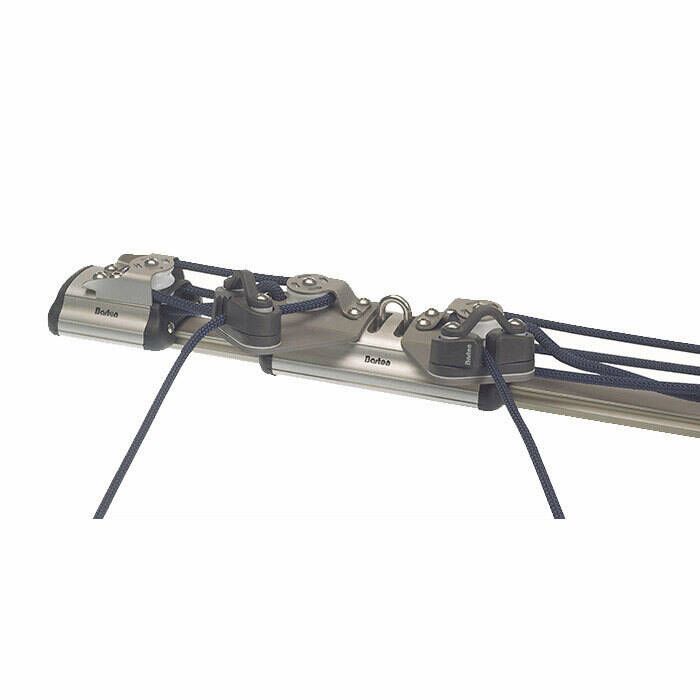

Image of : Barton Size 2 Recirculating Ball Bearing Traveler Kit with Car Cleats - 24902 Barton Size 2 Recirculating Ball Bearing Traveler Kit with Car Cleats - 24902 Item # 861737

Description

The Barton Size 2 Ball Bearing Traveler with cleat on cars is a pre-packaged mainsheet system with all components required in one complete kit. This includes the sliding bolt track, traveler, end fittings, plastic end caps, pilot track and full fitting instructions.

Features:

  • Travelers, end fittings and track are all extruded from top quality marine grade aluminum
  • Finished in unique 'Spectro' grey anodized finish
  • Sliding bolt track allows for a smooth, clean profile and also makes retro-fitting easier
  • Bolts can be slid along the extrusion to match existing fastening holes
  • Sized for yachts up to 11.0m LOA (36 ft.)
  • 4:1 Purchase system
  • Traveler car with single shackle takeoff
  • Recirculating precision ground Delrin ball bearing system

Specifications:

  • Kit Size: 2
  • Maximum Boat Size: 36.0 ft.
  • Track Width: 26mm
  • Track Length: 1.6m
  • Maximum Control Line Diameter: 8mm
  • Purchase: 4:1
  • Safe Working Load: 700Kg
  • Fastener Size: 6mm

Notes:

  • Complete pack kits are not suitable for open span applications as they require beam section track
  • Suggested boat sizes are given as guidance only and assume a monohull with boom end sheeting, loaded vertically to the traveler
  • Mid-boom sheeting and severely angled take offs can impose greater loads and suitable allowances should be made for this. If at all unsure of your choice it is important to seek further advice
  • If you are close to the maximum boat size suggested, we would advise upgrading to the next size up

Part Numbers for Barton Size 2 Recirculating Ball Bearing Traveler Kit with Car Cleats - 24902
