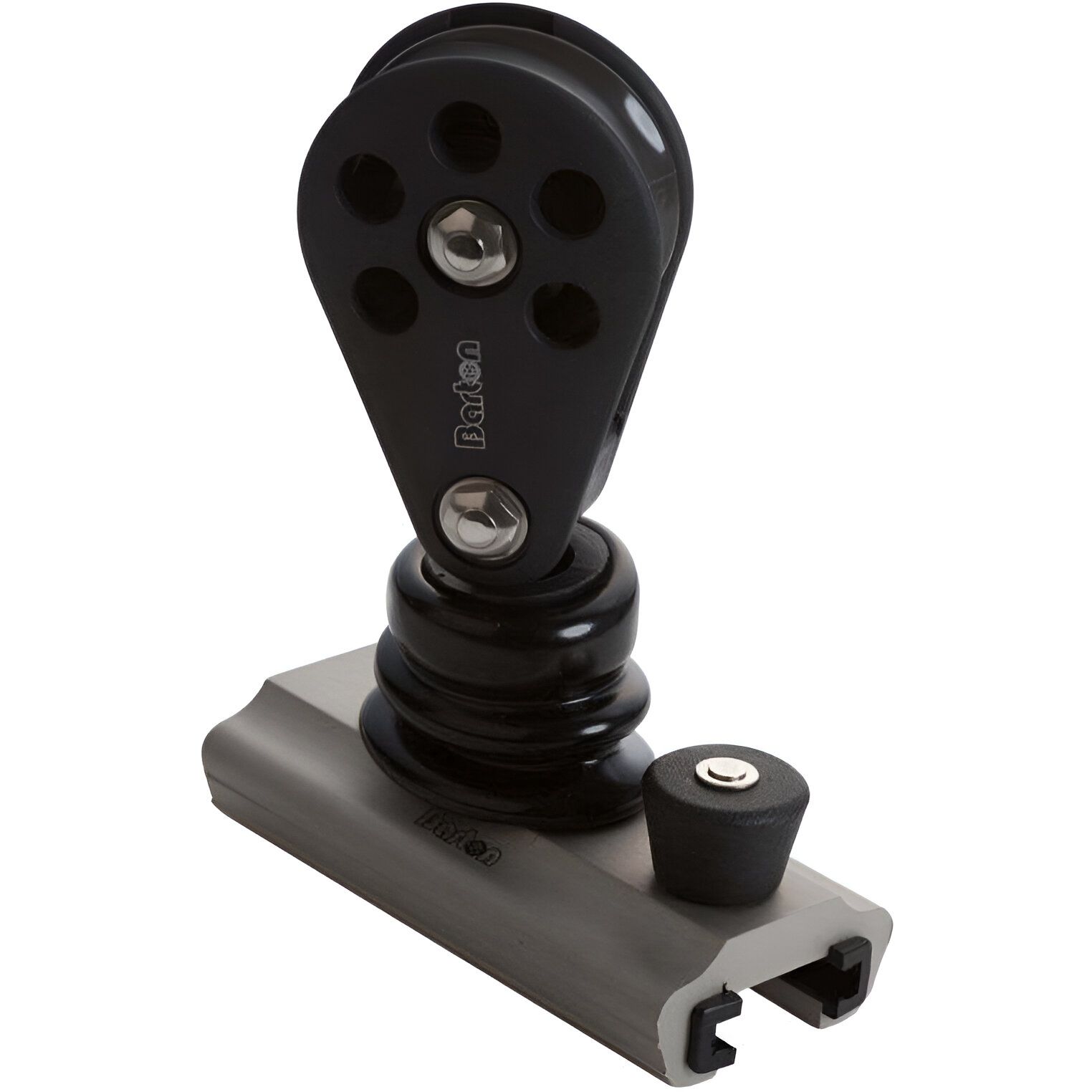

Barton Stand-Up Block - 1" T-Track

A popular range of genoa cars and sliders designed to run on 1" (25 mm) T-Track. All are manufactured from high quality marine grade Aluminum with Silver anodized finish for added protection. Included are molded nylon inserts to ensure free, smooth running under load and prevent damage to finish or potential corrosion.

Features:

• Silver anodized finish
• Stainless Steel plunger stops with positive action
• Molded nylon slide inserts
• Large, easy grip plunger knobs

Specifications:

• Compatible T-Track Size: 1
  • T-Track Width: 25/32" (20 mm)
  • Sheave Size: 1 25/32" (45 mm)
  • Sheave: Plain
  • Maximum Rope Diameter: 3/8" (10 mm)
  • Safe Working Load: 1,080 lbs (490 kg)
  • Breaking Load: 2,160 lbs (980 kg)
  • Length: 3 5/32" (80 mm)
  • Width: 1 21/32" (42 mm)
  • Height: 4 23/32" (120 mm)
• Compatible T-Track Size: 2
  • T-Track Width: 1" (25 mm)
  • Sheave Size: 2 1/4" (57 mm)
  • Height: 5 19/32" (142 mm)
  • Maximum Rope Diameter: 1/2" (12 mm)
  • Safe Working Load: 1,742 lbs (790 kg)
  • Breaking Load: 3,483 lbs (1,580 kg)
  • Length: 3 5/32" (80 mm)
