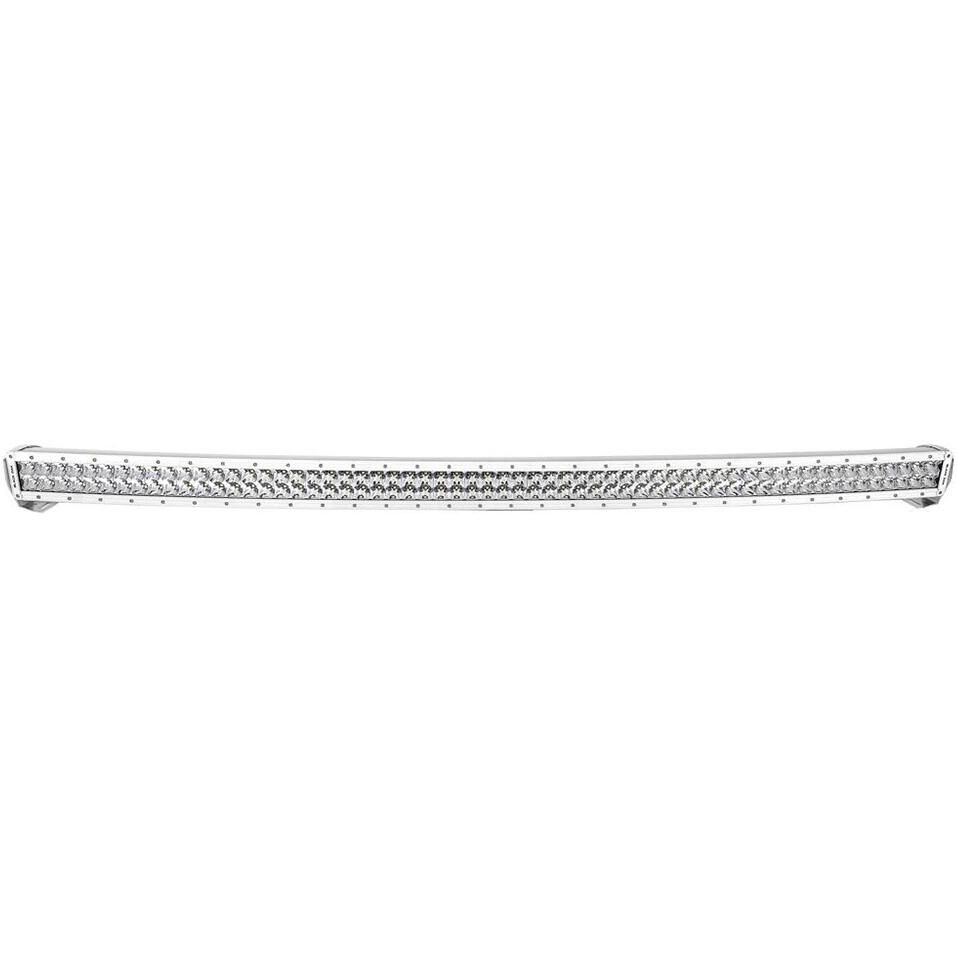

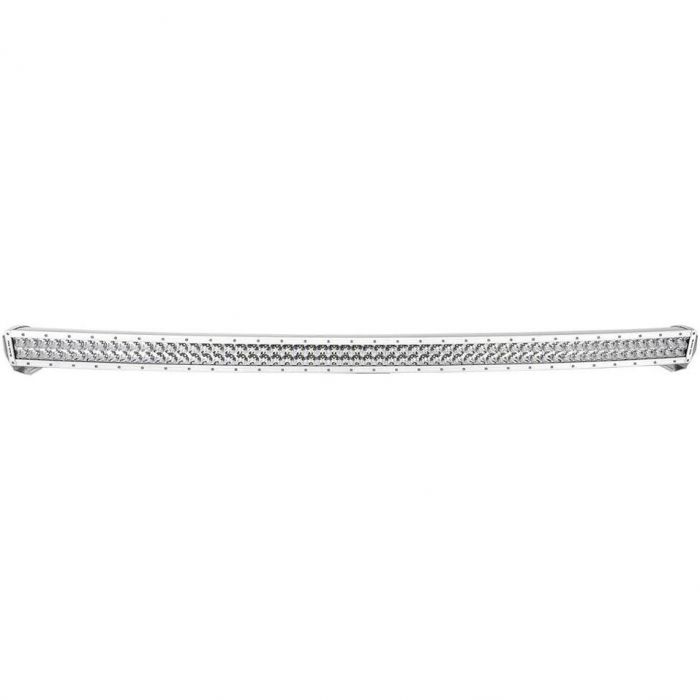

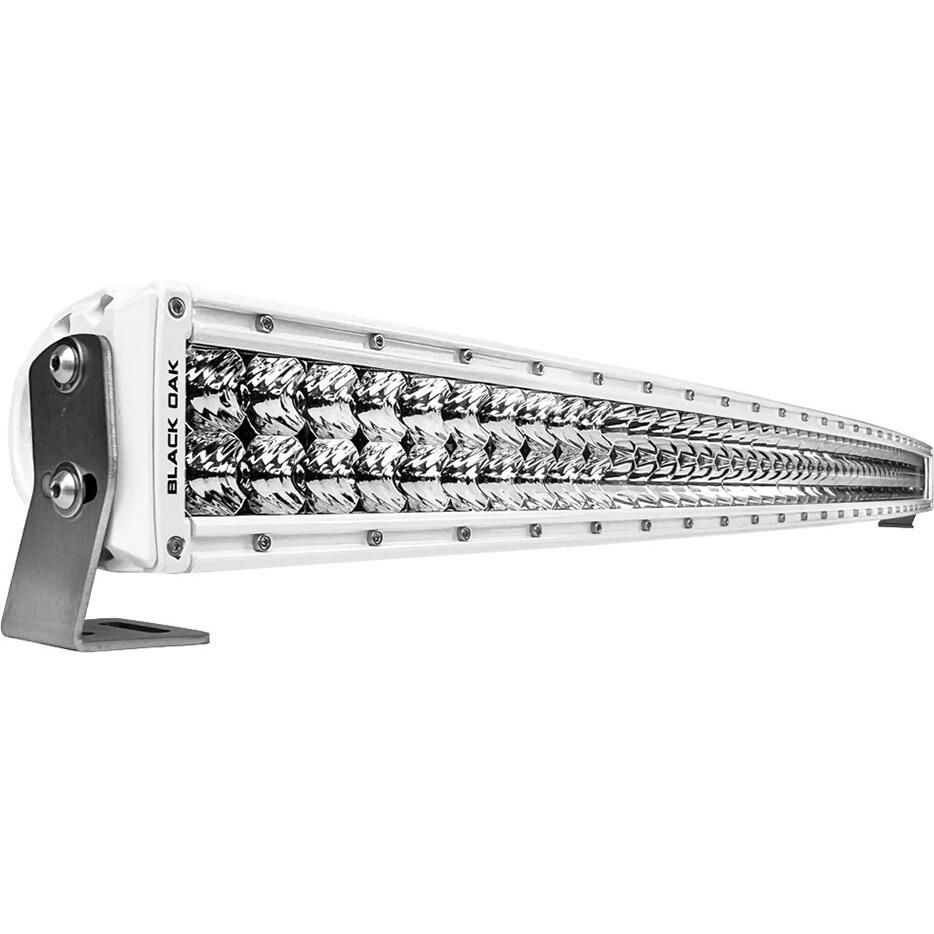

Black Oak Pro Series 3.0 Double Row LED Light Bar
$274.33 - $1,952.28
Black Oak Pro Series 3.0 Double Row LED Light Bar Item # 1374496

Description
Black Oak has taken the LED game to the next level. The Pro Series 3.0 features top-of-the-line LED tech, boasting a 20% increase in lumens, making this series of lights one of the brightest on the market.
Features:
- 360 deg. Ceramic Protection against UV, Salt Water & Corrosion
- 2 Stage Hydrex Seal Lock for IP69 protection and a fully submersible light bar
- Heavy-duty Dynamax housing for a 4x stronger frame
- 5W Osram LED's
- Premium Dupont powder-coating for the highest quality and most resistant finish

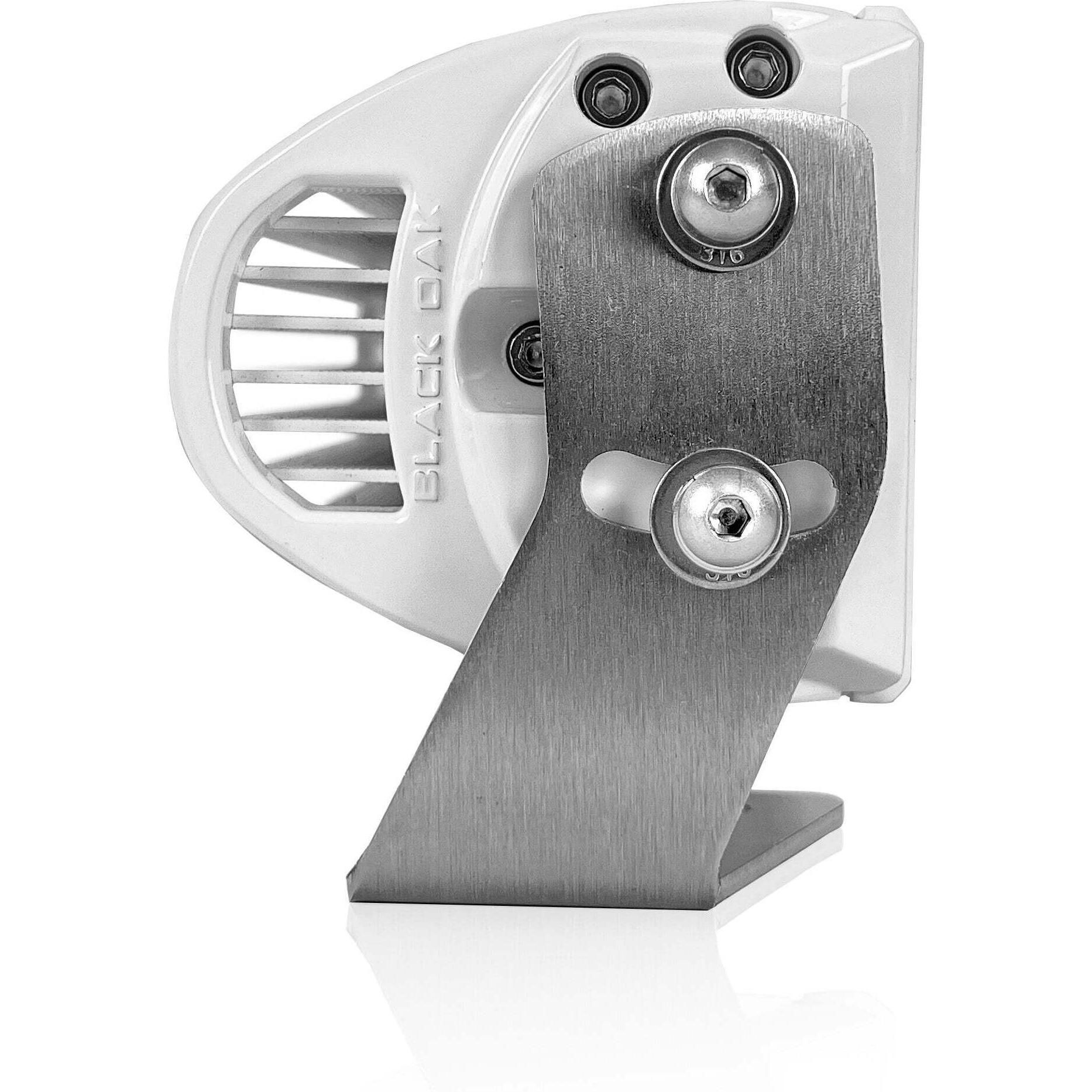

- Multi-mount brackets made of 9 gauge marine grade Stainless Steel
- Lens cover made of Lexan with a UV protectant
- Sold each
General Specifications:
- IP Rating: IP69K
- Connection: Deutsch connector
4" Light Bar Specifications:
- Total Wattage: 40W
- Amp. Draw: 1.5A
- LED Quantity: 8
- Weight: 4 lbs
- Raw Lumens: 5,280
6" Light Bar Specifications:
- Total Wattage: 60W
- Amp. Draw: 2.6A
- LED Quantity: 12
- Weight: 4.4 lbs
- Raw Lumens: 7,920
- Dimensions with Mounting Bracket (Width x Height): 7.4" x 4.125"
10" Light Bar Specifications:
- Total Wattage: 100W
- Amp. Draw: 4.1A
- LED Quantity: 20
- Weight: 5.2 lbs
- Raw Lumens: 13,200
- Dimensions with Mounting Bracket (Width x Height): 11.4" x 4.125"
20" Light Bar Specifications:
- Total Wattage: 200W
- Amp. Draw: 8.4A
- LED Quantity: 40
- Weight: 7.8 lbs
- Raw Lumens: 26,400
- Dimensions with Mounting Bracket (Width x Height): 21.4" x 4.125"
30" Light Bar Specifications:
- Total Wattage: 300W
- Amp. Draw: 12.7A
- LED Quantity: 60
- Weight: 10.8 lbs
- Raw Lumens: 39,600
- Dimensions with Mounting Bracket (Width x Height): 31.4" x 4.125"
40" Light Bar Specifications:
- Total Wattage: 400W
- Amp. Draw: 17.9A
- LED Quantity: 80
- Weight: 13.8 lbs
- Raw Lumens: 52,800
- Dimensions with Mounting Bracket (Width x Height): 41.4" x 4.125"
50" Light Bar Specifications:
- Total Wattage: 500W
- Amp. Draw: 21A
- LED Quantity: 100
- Weight: 18 lbs
- Raw Lumens: 66,000
- Dimensions with Mounting Bracket (Width x Height): 51.4" x 4.125"
Included:
- Light bar
- Complete wiring harness with fuse, relay, and switch
- 12 gauge wire
- Mounting brackets
- All hardware is ready to install!
Part Numbers for Black Oak Pro Series 3.0 Double Row LED Light Bar
PRODUCT OPTION | ITEM # | MFR. PRODUCT # | AVAILABILITY |
Black 4" Flood Optics Straight | 1374497 | 4F-D5OS | Out of Stock |
Black 4" Spot Optics Straight | 1374498 | 4S-D5OS | Out of Stock |
Black 6" Combo Optics Straight | 1374499 | 6C-D5OS | Out of Stock |
Black 10" Combo Optics Straight | 1374500 | 10C-D5OS | In Stock: Leaves Warehouse: 2 to 3 days |
Black 10" Combo Optics Curved | 1374501 | 10CC-D5OS | Out of Stock |
Black 20" Combo Optics Straight | 1374502 | 20C-D5OS | Out of Stock |
Black 20" Combo Optics Curved | 1374503 | 20CC-D5OS | Out of Stock |
Black 30" Combo Optics Straight | 1374504 | 30C-D5OS | Out of Stock |
Black 30" Combo Optics Curved | 1374505 | 30CC-D5OS | In Stock: Leaves Warehouse: 2 to 3 days |
Black 40" Combo Optics Straight | 1374506 | 40C-D5OS | Out of Stock |
Black 40" Combo Optics Curved | 1374507 | 40CC-D5OS | Out of Stock |
Black 50" Combo Optics Straight | 1374508 | 50C-D5OS | Out of Stock |
Black 50" Combo Optics Curved | 1374509 | 50CC-D5OS | In Stock: Leaves Warehouse: 3 to 4 days |
White 6" Combo Optics Straight | 1374510 | 6CM-D5OS | Out of Stock |
White 10" Combo Optics Straight | 1374511 | 10CM-D5OS | In Stock: Leaves Warehouse: Same Day |
White 20" Combo Optics Curved | 1374512 | 20CCM-D5OS | In Stock: Leaves Warehouse: 2 to 3 days |
White 30" Combo Optics Curved | 1374513 | 30CCM-D5OS | In Stock: Leaves Warehouse: 2 to 3 days |
White 30" Spot Optics Curved | 1374514 | 30SCM-D5OS | Out of Stock |
White 40" Combo Optics Curved | 1374515 | 40CCM-D5OS | In Stock: Leaves Warehouse: 2 to 3 days |
White 50" Combo Optics Curved | 1374516 | 50CCM-D5OS | In Stock: Leaves Warehouse: 2 to 3 days |
