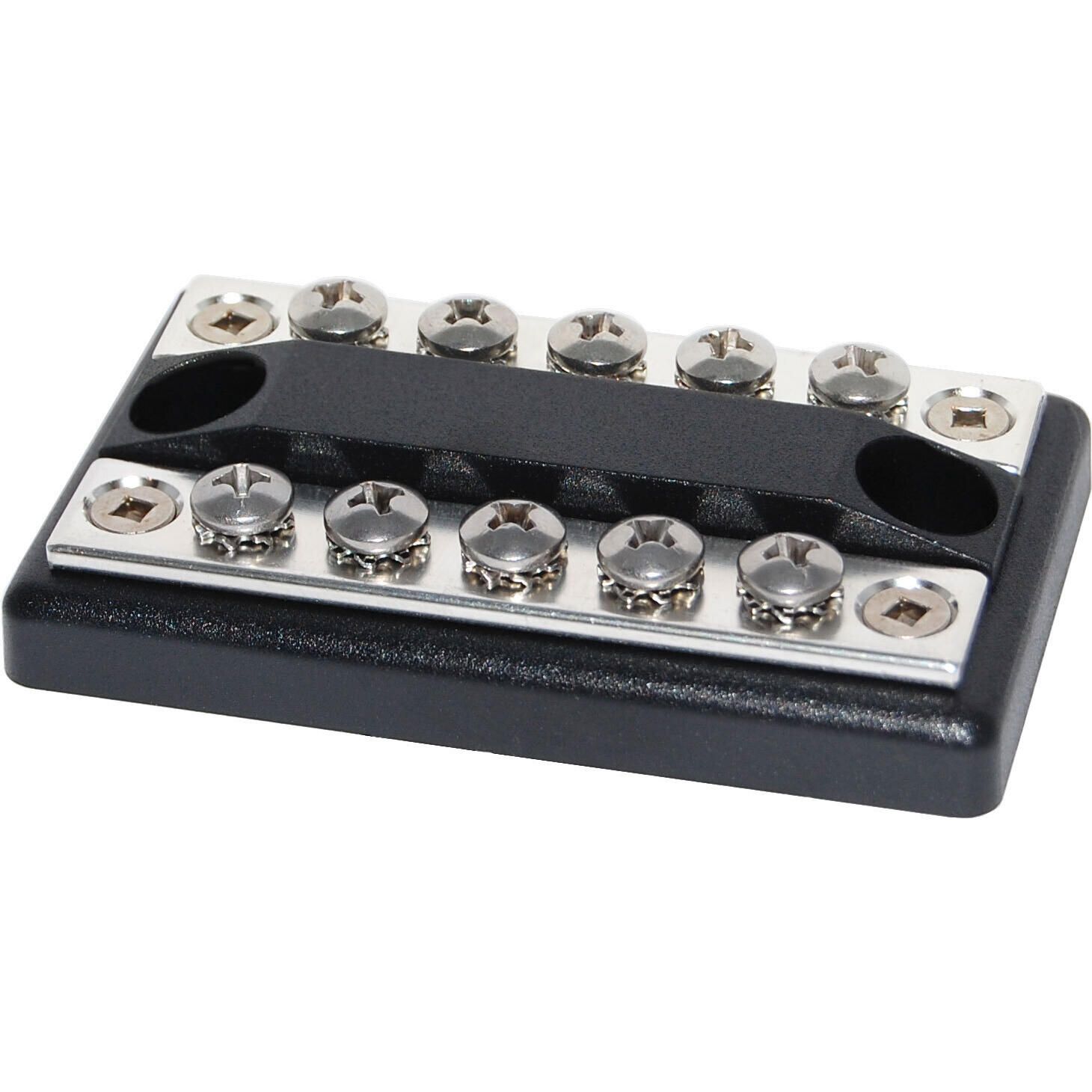

Blue Sea Systems DualBus Common BusBar - 100A

The Blue Sea Systems DualBus Common BusBar is a power distribution component that allows incoming power to be transferred to multiple circuits. Each side (busbar) can be used for positive, negative, or ground circuits and is rated for both AC and DC current. Each busbar has operating voltages of 300V AC and 48V DC and has (5) # 8 screw terminals.

Features:

• 2 busbars on one base
• Busbars function independently of each other
• Industry standard bus bar for positive distribution
• Industry standard bus bar for collection of negative or AC ground circuits

Specifications:

• Maximum Voltage:
  • 300V AC
  • 48V DC
• Number of Screw Terminals: 5 or 10 per bus
• Terminal Type: #8-32 Screw
• Continuous Rating : 100A
• Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
• Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
• Screw Terminal Torque: 15 in-lb (1.69 Nm)
• Height: 5/8" (15.88 mm)
