Item #1144466

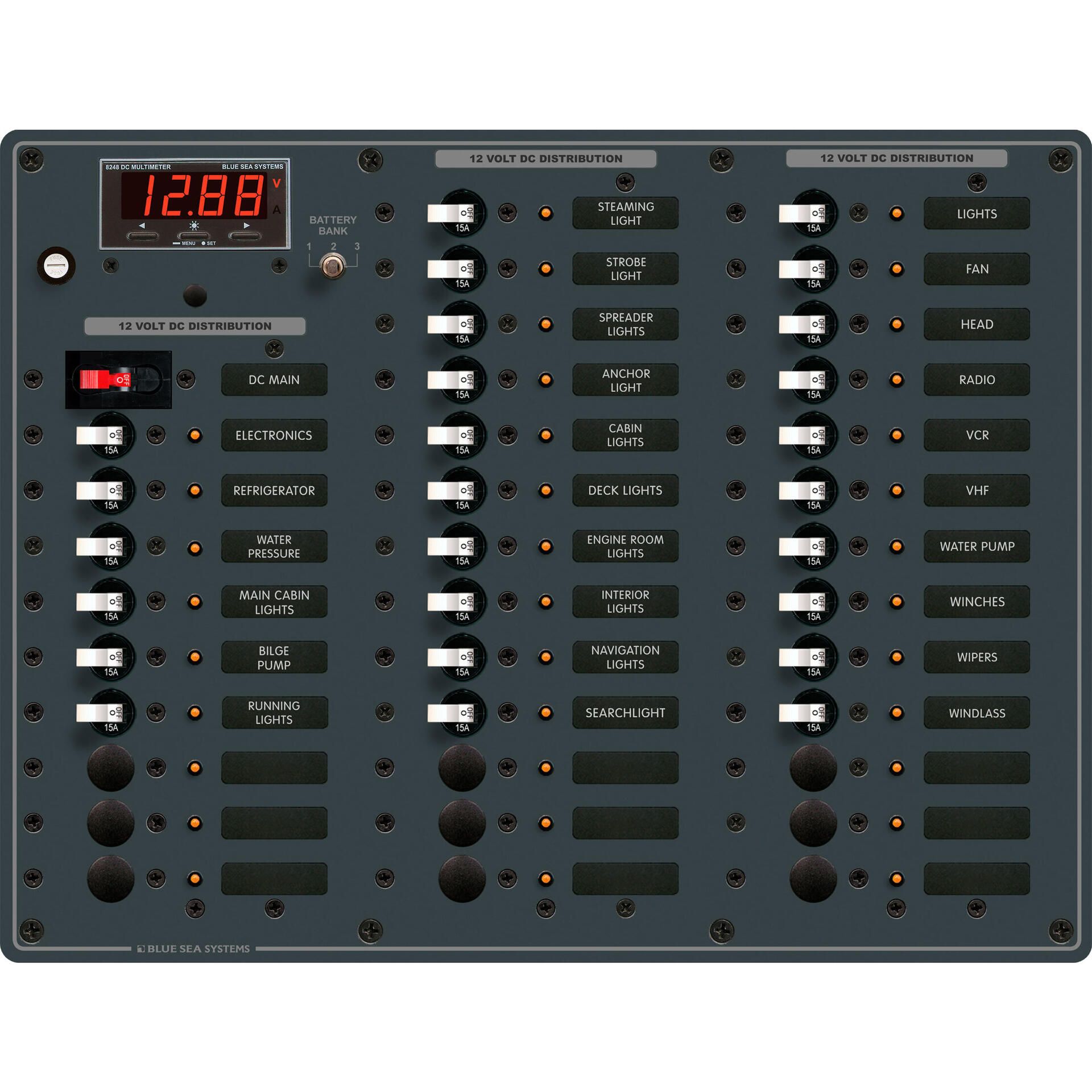

Blue Sea Systems 36-Position DC Branch Circuit Breaker Panel - 8382

$1,756.98
Want an email once available?

Image of : Blue Sea Systems 36-Position DC Branch Circuit Breaker Panel - 8382 Blue Sea Systems 36-Position DC Branch Circuit Breaker Panel - 8382 Item # 1144466

Description

Features:

  • All positive, negative and grounding buses installed, fully pre-wired
  • Panels with meters include toggle switch for mounting up to 3 battery banks
  • All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
  • All circuit label positions are backlit on standard panels - No kit required
  • "ON" indicating LEDs installed in all circuit positions

Specifications:

  • Style: Traditional Metal
  • Total Positions: Main + 35 Positions
  • Circtuit Breakers: 1 C-Series, 100A (7250I) , 26 A-Series, 15A (7210)
  • Nominal Voltage: 12V DC
  • Maximum Amerage: 100A
  • DC Meter: Digital Multimeter (8248)
  • Width: 14.75" (374.65 mm)
  • Height: 11.25" (285.75 mm)
  • Depth: 4.00" (101.6 mm)

Included:

  • (1) x Basic DC Panel Label Set - 30 Labels (8030)
  • (1) x DC Digital Multi-Function Meter with Alarm (8248)
  • (26) x A-Series White Toggle Circuit Breaker - Single Pole 15A (7210)
  • (1) x Circuit Breaker CA1 100A Red IP (7250I)

Installation Instructions

Cutout Template
