Blue Sea Systems 8-Position AC Branch Circuit Breaker Panel - 1228

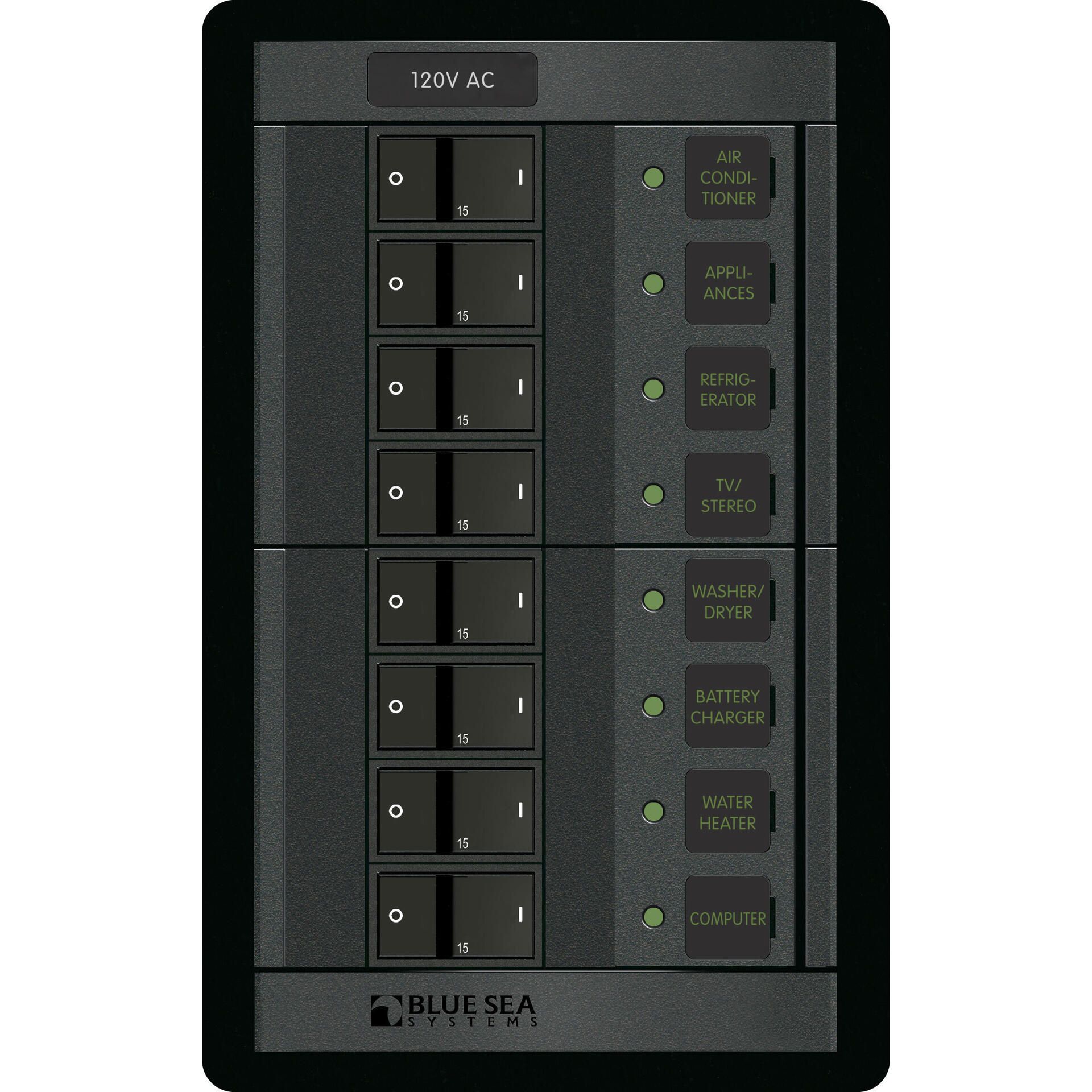

The Blue Sea Systems AC Branch Circuit Breaker Panel (1228) distributes 120V AC input current to lower amperage branch circuits. It includes 8 branch circuits with 15A breakers and green LEDs that indicate when each circuit is on.

Features:

• Interior branch circuit breaker panel
• (8) 15A circuit breakers
• Green, ON-indicating LEDs installed in all circuit positions
• All hot, neutral and safety ground buses installed and fully pre-wired
• Tin-plated copper bus bars provide high conductivity and corrosion resistance
• Includes set of 30 common square format AC panel labels
• Backlit label positions
• Detailed installation instructions and cutout template included

Specifications:

• Circuits: 8
• Nominal Voltage: 120V AC
• Max. Panel Amperage: 100A
• Circuit breakers: (8) A-Series, 15A
• Blank Breaker Spaces: None
• Actuator: Flat rocker
• Dimensions: 4.88" W x 7.75" H x 3" D

Installation Instructions (1.83 MB)

Wiring Diagram
