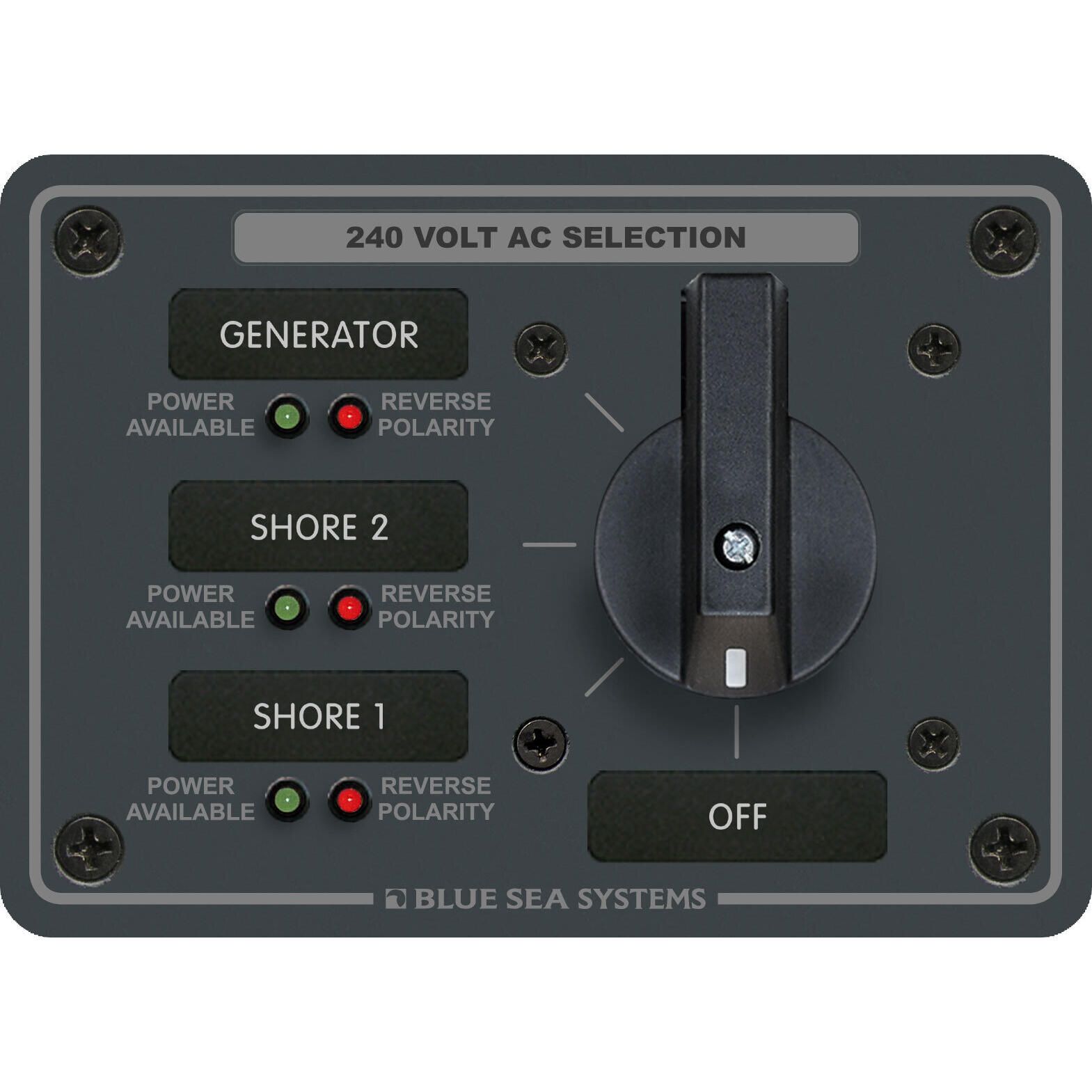

Blue Sea Systems AC Source Selection Rotary Switch Panel - 8361

The Blue Sea Systems Source Selection Rotary Switch Panel (8361) allows you to select from 3 sources of incoming AC power and to turn off all power sources. This panel includes a green ON and red REVERSE POLARITY indicating LEDs for each power source and a set of labels.

Features:

• Heavy duty, industrial-rated, 4 position rotary switch
• Switches between (3) 240V AC sources and OFF
• Allows connection to (1) AC source to at a time
• Reverse polarity LED indicators (red)
• Power-available LED indicators (green)

Specifications:

• Switch Type: Rotary
• Maximum Operating Voltage: 240V AC
• Maximum Amperage: 65A AC
• Maximum Input Sources: 3
• Wire Size Range: 12-6 AWG
• Material: 2-part polyurethane slate gray finish
• Dimensions: 5.25" W x 3.75" H x 5.50" D
