Item #862374

Blue Sea Systems AMI/MIDI Safety Fuse Block - 7720

$49.58
Want an email once available?

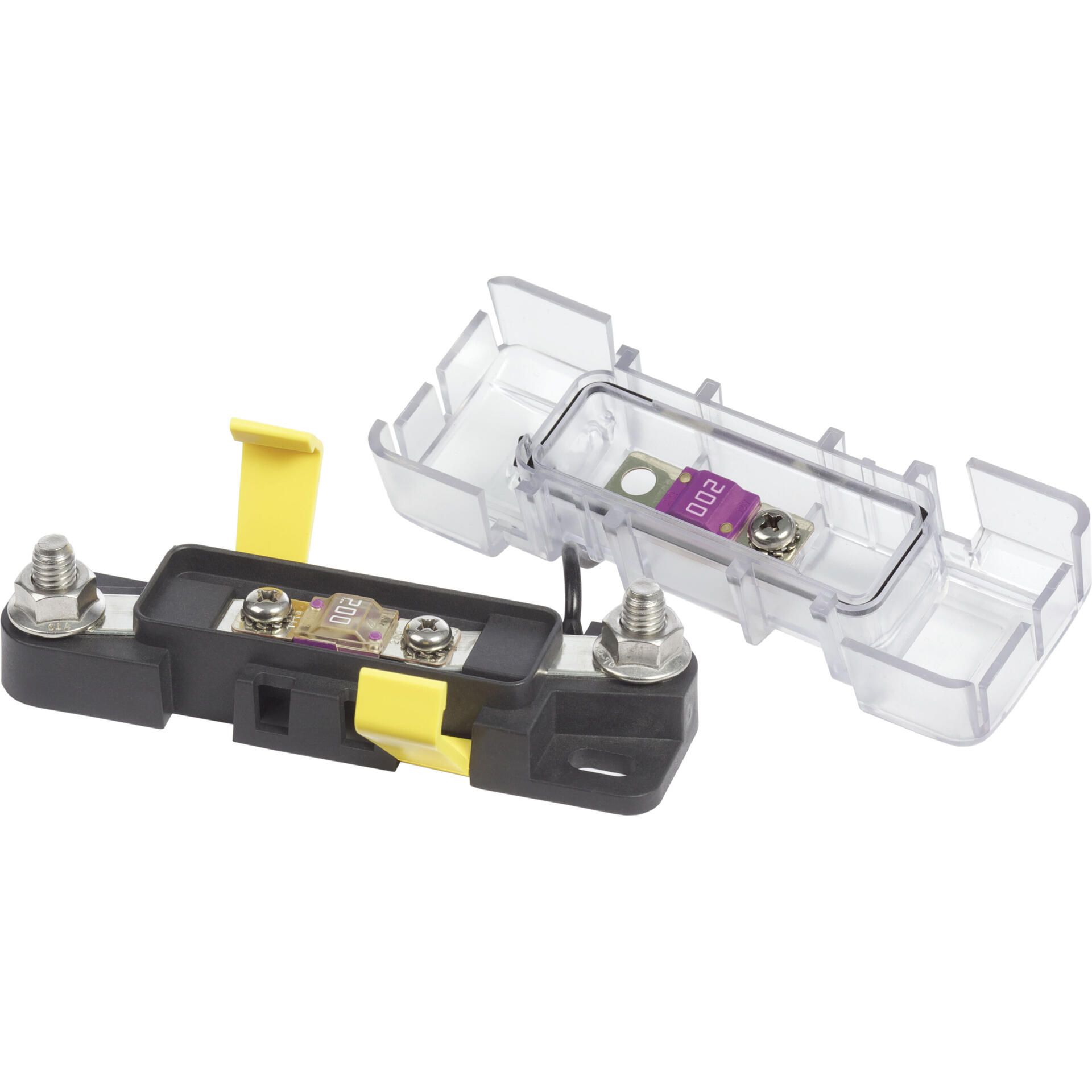

Image of : Blue Sea Systems AMI/MIDI Safety Fuse Block - 7720 Blue Sea Systems AMI/MIDI Safety Fuse Block - 7720 Item # 862374

Description

Blue Sea System's AMI/MIDI Safety Fuse Block is designed for use on high amperage circuits; accepting MIDI (Littelfuse) or AMI (Bussmann) fuses between 30 - 200 Amp.

Features:

  • Ignition protected for use on gasoline or diesel powered boats
  • Sealed cover protects fuses from the harsh marine environment
    • Sealed cover provides IP66 ingress protection and satisfies ABYC/USCG insulation requirements
  • Accepts MIDI (Littelfuse) or AMI (Bussmann) fuses (sold separately)
  • Spare fuse storage under cover
  • Cover breakouts allow wire access in any direction
  • 200A maximum with 2/0 cable
  • Accepts Blue Sea Systems Square Format standard or custom label

Specifications:

  • Max. operating Voltage: 32V DC
  • Max. amperage: 200A
  • Wire size to meet rating: 2/0 AWG
  • Mounting holes accept 1/4" (M6) screws
  • Terminal stud size: (M8 x 1.25)
  • Terminal screw size: M5 x 0.8 Stainless Steel

Part Numbers for Blue Sea Systems AMI/MIDI Safety Fuse Block - 7720
