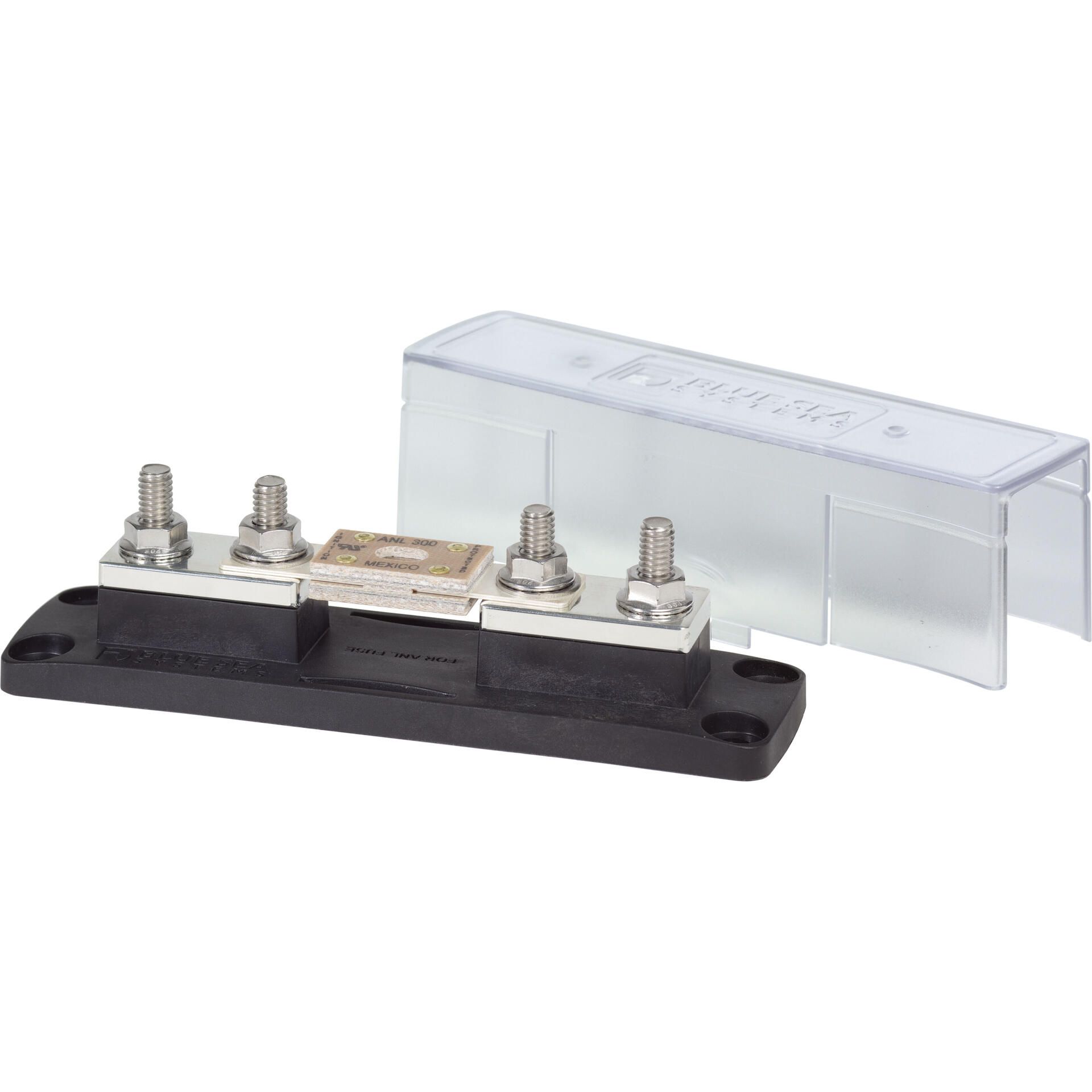

Blue Sea Systems ANL Fuse Block with Cover - 5503
Item: #862395 | Part Number: 5503$82.36
Description
The Blue Sea Systems ANL Fuse Block with Cover 5503 provides a clean, safe, and flexible high-current fusing solution for marine and DC power systems. Designed to accept a wide range of ANL fuse amperages, it features corrosion-resistant stainless steel studs, a heat-resistant base, and an insulating cover that meets ABYC/USCG standards. The swing-out design makes fuse replacement quick and hassle-free.
Blue Sea Systems ANL Fuse Block with Cover - 5503 Item # 862395
Description
Blue Sea Systems 5503 ANL Fuse Block accepts a wide range of ANL fuse amperages for a versatile fusing system.
Features:
- Cover meets ABYC/USCG insulating requirements
- Accepts 5/16" ring terminals
- Cover breakouts allow wire access in any direction
- Insert molded studs ensure secure fuse mounting
- Stainless steel studs provide resistance to corrosion and high torqueing for excellent electrical contact
- UL 94-V0 base resists high heat
- Swing-out design allows fuse replacement without removing fasteners
Specifications:
- Maximum operating voltage: 32V DC
- Maximum operating amperage: 750A DC
- Terminal stud size: 5/16"-18
- Cable size: Up to 4/0 AWG
- Fuse mounting blocks: Tin-plated copper
- ANL Fuses available: 35-750A
- Mounting holes accept 1/4" screw
