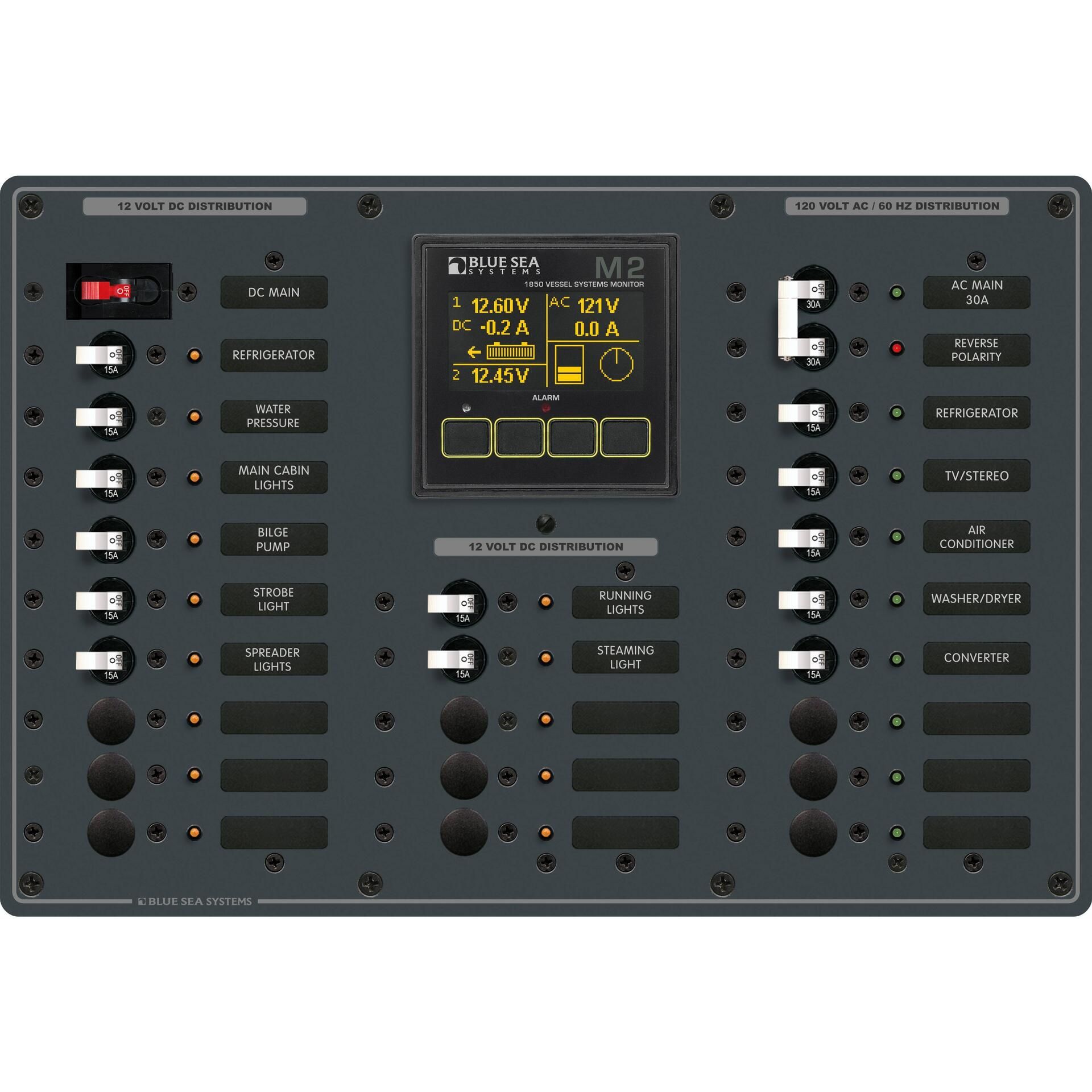

Blue Sea Systems Combination Circuit Breaker Panel - 8413

Combines AC and DC switching, circuit protection, source selection and monitoring into a single panel.

Features:

• Includes M2 VSM which performs comprehensive monitoring of AC systems, DC systems, tanks and bilges in one compact OLED meter with NMEA 2000 connectivity
• ON indicating LEDs installed in all circuit positions
• Backlit label positions
• Circuit identification label sets included
• White toggle circuit breakers match existing traditional panels
• AC and DC buses installed, fully pre-wired and ready for installation
• Panel is marked to comply with ABYC standards
• Red reverse polarity indicated LED

Specifications:

• Style: Traditional Metal
• Total AC Positions: Main + 8 positions
• Total DC Positions: Main + 14 positions
• AC Circuit Breakers: Main, 30A (7238) / 8 Branch, 15A (7210)
• DC Circuit Breakers: Main, 100A DC (7250I) / 14 Branch, 15A (7210)
• AC/DC Voltage: 120V AC/12/24V DC
• Actuator Style: White Toggle
• AC Meter, DC Meter: M2 VSM (1850)
• Width x Height: 15.77" x 9.25" (400.50 x 234.95 mm)
• Depth: 3.00" (76.20 mm)

Included:

• (1) x M2 Vessel Systems Monitor (1850)
• (1) x A-Series White Toggle Circuit Breaker - Double Pole 30A (7238)
• (1) x Circuit Breaker CA1 100A Red IP (7250I)
• (1) x Basic DC Panel Label Set - 30 Labels [LABEL] (8030)
• (1) x Basic AC Panel Label Set - 30 Labels [LABEL] (8031)
• (14) x LED - 12/24V DC Amber (8033)
• (9) x LED - 120V AC Green (8034)
• (1) x LED - 120V AC Red (8066)
• (22) x A-Series White Toggle Circuit Breaker - Single Pole 15A (8 AC Branch and 14 DC Branch) (7210)
