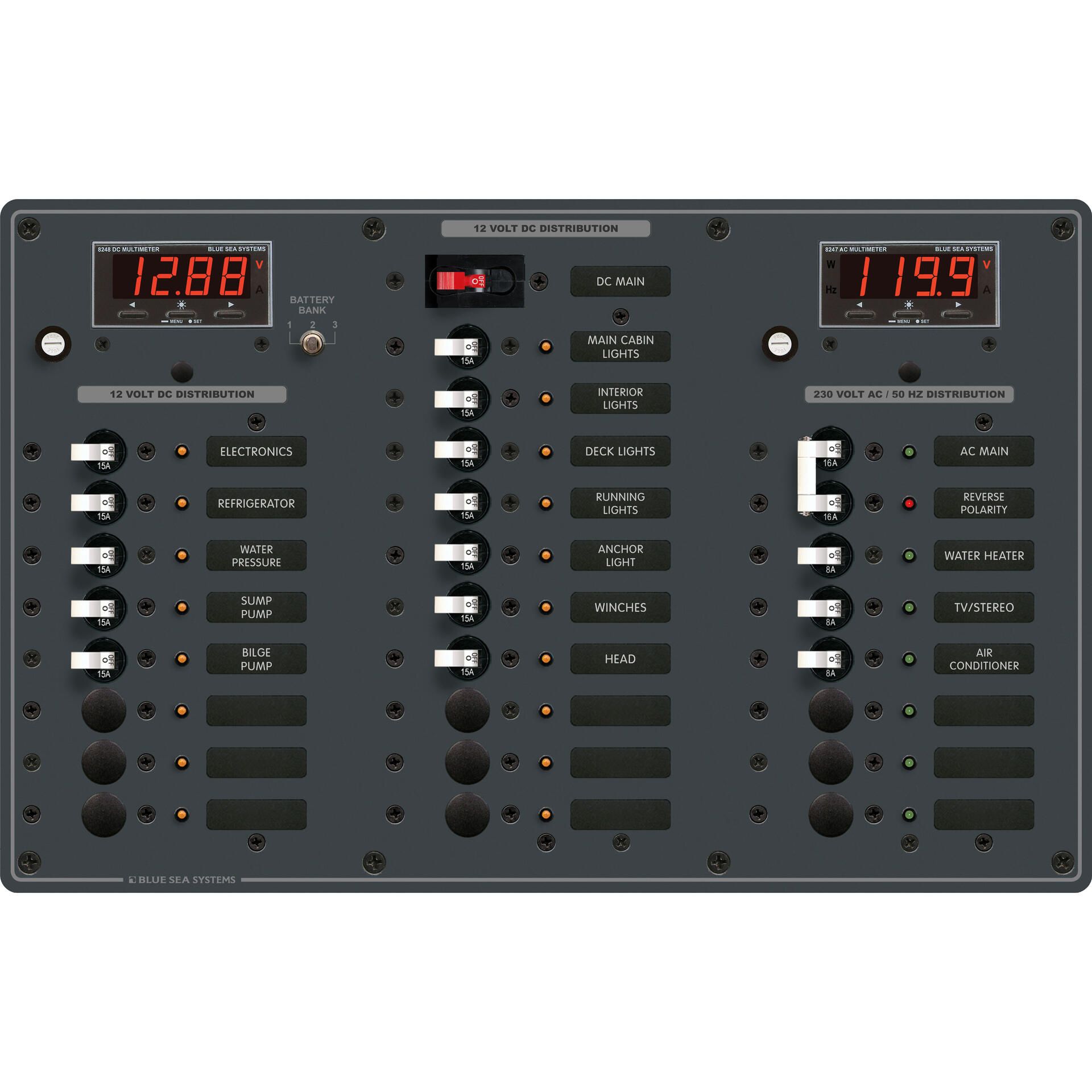

Blue Sea Systems Combination Circuit Breaker Panel - 8508

Features:

• All AC and DC buses installed and fully pre-wired
• Label backlighting pre-installed
• ON - indicating LEDs installed in all circuit positions
• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

Specifications:

• Style: Traditional Metal
• Total AC Positions: Main + 6 positions
• Total DC Positions: Main + 18 positions
• AC Circuit Breakers: Main, 30A (7238) / 3 Branch, 15A (7210)
• DC Circuit Breakers: Main, 100A (7250I) / 12 Branch, 15A (7210)
• AC/DC Voltage: 120V AC/12/24V DC
• Actuator Style: White Toggle
• AC Meter: Digital Multimeter (8247)
• DC Meter: Digital Multimeter (8248)
• Width x Height : 15.75" x 10.00" (400.05 x 254.00)
• Depth: 4.00" (101.60 mm)

Included:

• (3) x A-Series White Toggle Circuit Breaker - Single Pole 8A (AC Branch) (7299)
• (1) x A-Series White Toggle Circuit Breaker - Double Pole 16A (AC Main) (7294)
• (1) x AC Digital Multi-Function Meter with Alarm (AC Meter) (8247)
• (12) x A-Series White Toggle Circuit Breaker - Single Pole 15A (DC Branch) (7210)
• (1) x Circuit Breaker CA1 100A Red IP (DC Main) (7250I)
• (1) x DC Digital Multi-Function Meter with Alarm (DC Meter) (8248)

Installation Instructions

Cutout Template
