Blue Sea Systems

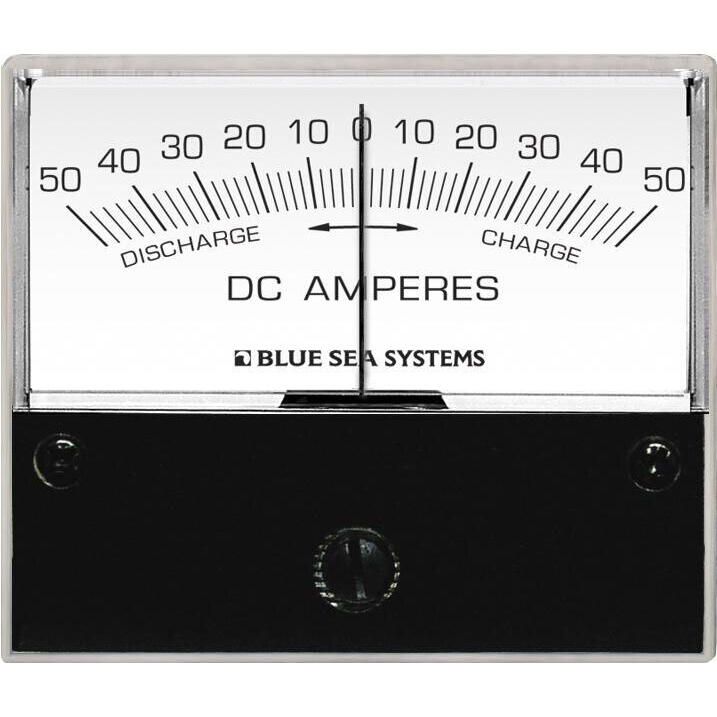

Blue Sea Systems DC Analog Ammeter with Shunt
Item: #1144815 | Part Number: Not Selected$106.78
Description
Features: Meters read both discharge and charge current Simple 4-wire connection from shunt Meter senses and powers from shunt connection Includes appropriate DC shunt Backlit meter face (separate 12 or 24V DC backlight connections) Specifications: Meter: Current Face Size: 2.75" (69.85 mm) Backlighting Amperage: 16m at 12V DC, 20mA at...
Blue Sea Systems DC Analog Ammeter with Shunt Item # 1144815
Description
Features:
- Meters read both discharge and charge current
- Simple 4-wire connection from shunt
- Meter senses and powers from shunt connection
- Includes appropriate DC shunt
- Backlit meter face (separate 12 or 24V DC backlight connections)
Specifications:
- Meter: Current
- Face Size: 2.75" (69.85 mm)
- Backlighting Amperage: 16m at 12V DC, 20mA at 24V DC
- Meter Current: 1mA at full scale
- Shunt Type: External 50mV at full scale
