Item #862580

Blue Sea Systems 16-Position DC Branch Circuit Breaker Panel - 1201

$1,033.84
Want an email once available?

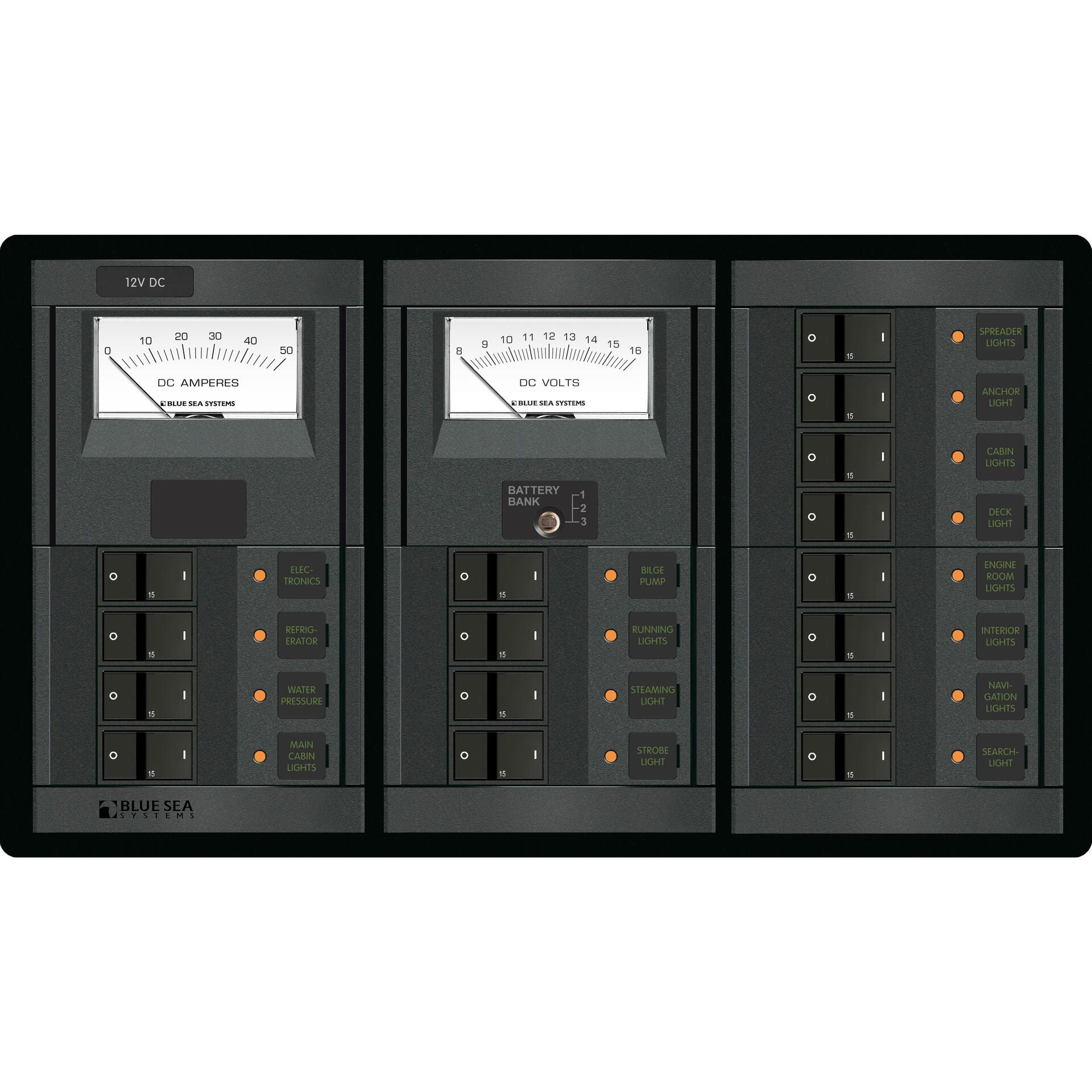

Image of : Blue Sea Systems 16-Position DC Branch Circuit Breaker Panel - 1201 Blue Sea Systems 16-Position DC Branch Circuit Breaker Panel - 1201 Item # 862580

Description

Blue Sea Systems DC Branch Circuit Breaker Panel (1201) distributes current from a high amperage input into lower amperage circuits.

Features:

  • (16) Positions
  • 360 Panel system style
  • Includes analog voltmeter 8003 and ammeter 8022
  • ON-indicating LEDs installed in all circuit positions
  • All positive, negative and grounding buses installed and fully pre-wired
  • Includes toggle switch to monitor voltage on up to (3) battery banks
  • Backlit label positions with 4205 label set
  • Detailed installation instructions and cutout template included

Specifications:

  • Nominal voltage: 12V DC
  • Max. operating amperage: 50A
  • Voltmeter displays: 8-16V DC
  • Ammeter displays: 0-50A
  • Circuit breakers: (16) A-Series, 15A

Installation Instructions (1.83 MB)

Wiring Diagram
