Blue Sea Systems Dual Battery Bank Management Panel - 8080

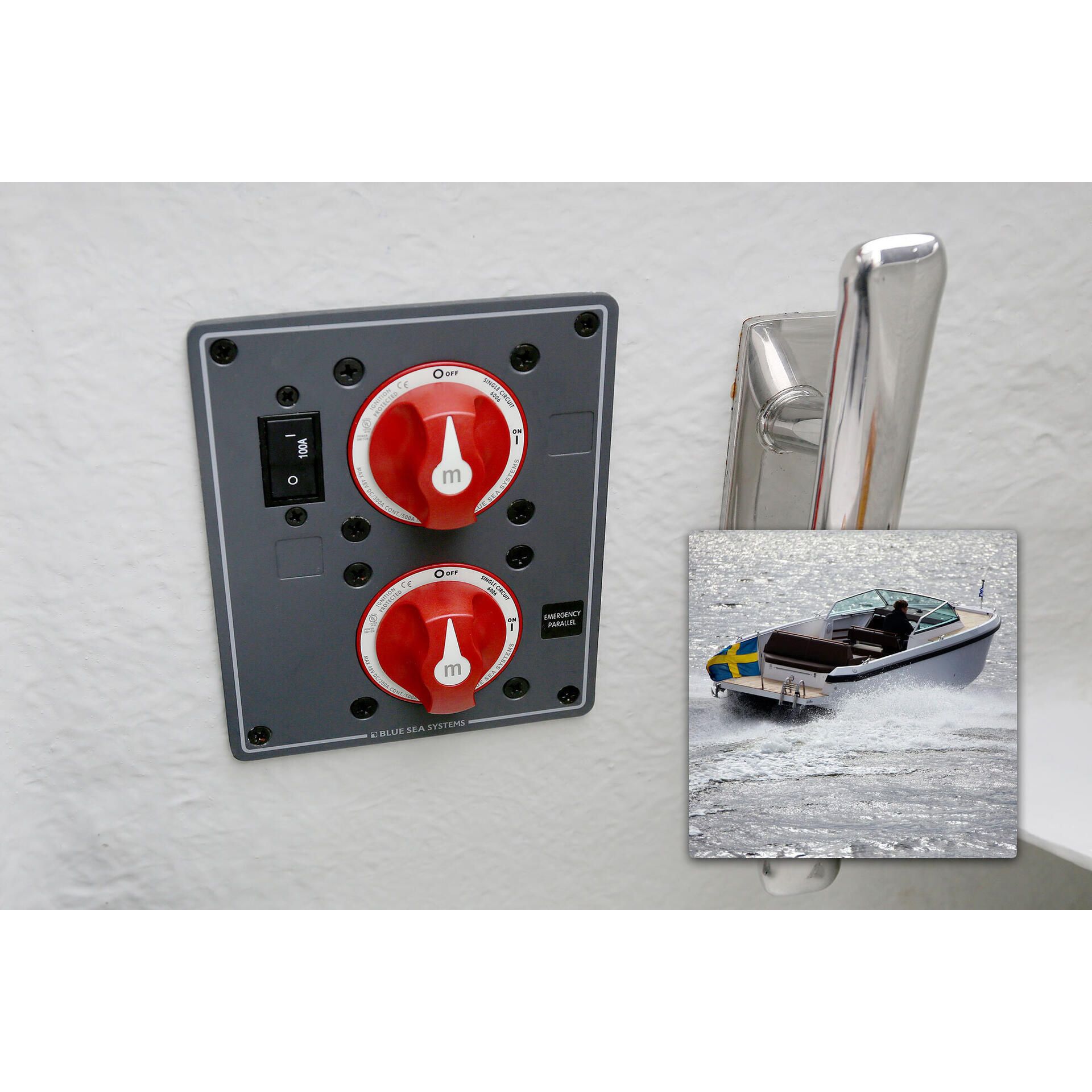

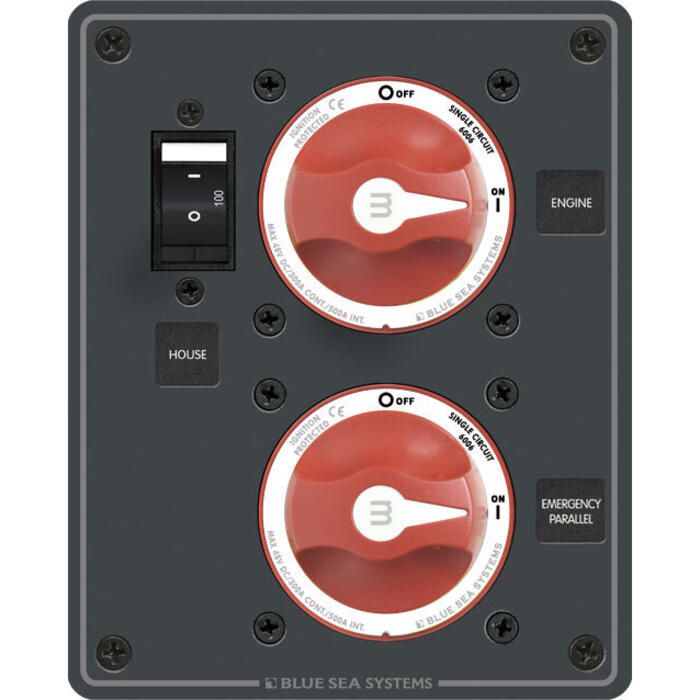

Blue Sea Systems Dual Battery Bank Management Panel (8080) allows easy management of dual battery bank systems.

Features:

• Traditional metal panel style
• Isolates engine and house circuits
• Allows emergency cross-connect between isolated battery banks
• Protects electronics from sags and spikes caused by engine cranking
• The addition of an Automatic Charging Relay (ACR) automates charging two battery banks
• Ignition protected safe for installation aboard gasoline-powered boats
• Includes (2) m-Series battery switches and (1) C-Series flat rocker circuit breaker (Main 100 Amp)

Specifications:

• Continuous amperage: 300A
• Max. operating voltage: 32V
• Dimensions: 5.25" W x 6.50" H X 3.00" D

Installation Instructions
