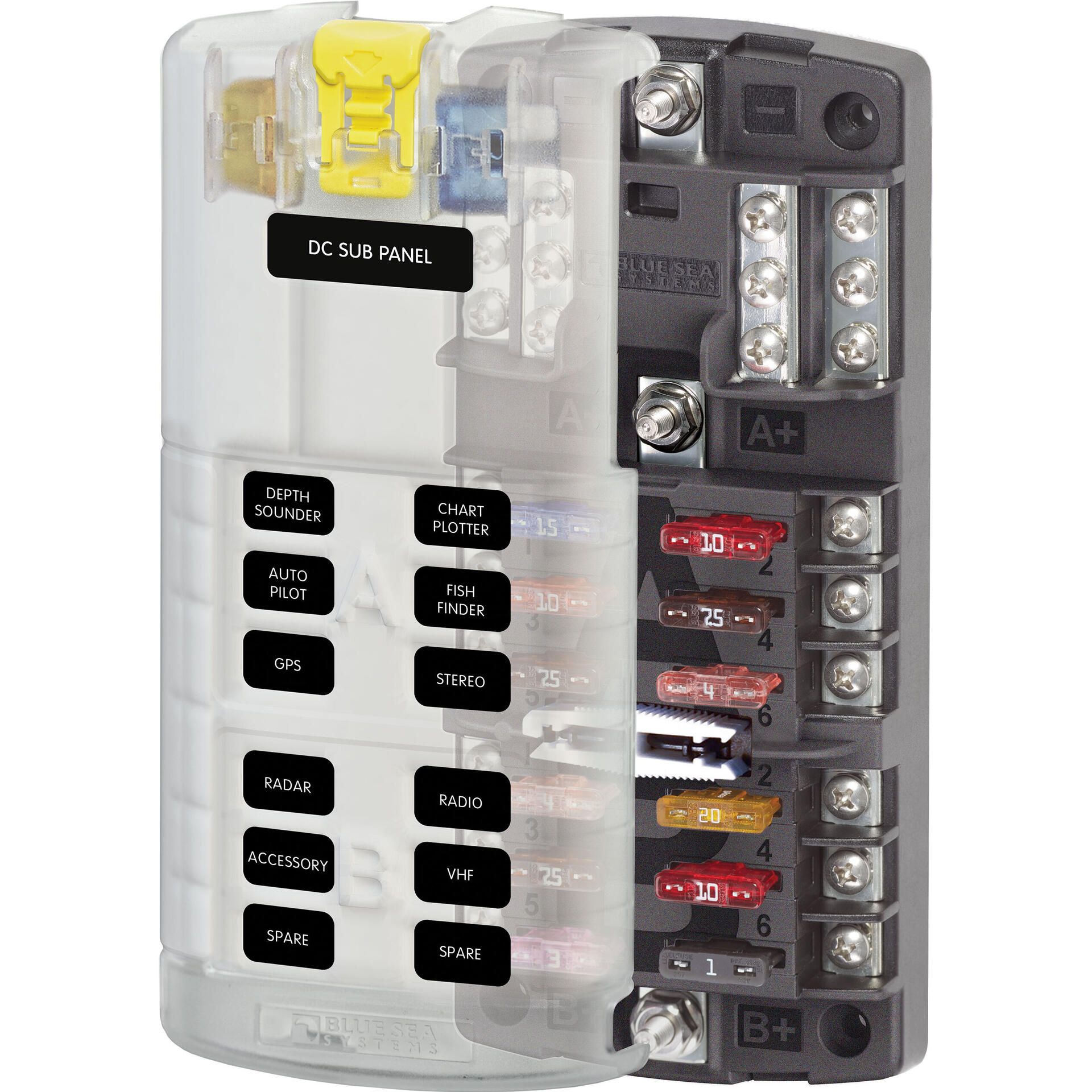

Blue Sea Systems ST Blade Split Bus 12-Fuse Block - 5032

Split Bus Fuse Block with ground for use when a mix of switched and 24-hour circuits are desired in the same block.

Features:

• Provides two isolated groups of six ATO®/ATC® circuits
• For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
• Screw terminals for securing wires accept ring terminals
• One-piece stainless flange nuts ensure safe and secure connections
• Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
• Easy to open, push button latch for easy access to fuses
• Tin-plated copper buses and fuse clips
• Fuses not included (sold separately)

Specifications:

• Circuits: 12
• Maximum Amperage :
  • 30A per circuit
  • 100A total
• Maximum Voltage: 32V DC
• Mounting: #8 Screw (M4)
• Negative Bus: #10-32 Stud
• Positive Bus: #10-32 Stud
• Recommended Torque: 24 in-lb (2.71 Nm)
• Screw Terminal Torque: 18 in-lb (2.03 Nm)
• Screw Terminal Type: #8-32 Screws with captive star lock washer
• Weight: 0.75 lbs (0.34 kg)
