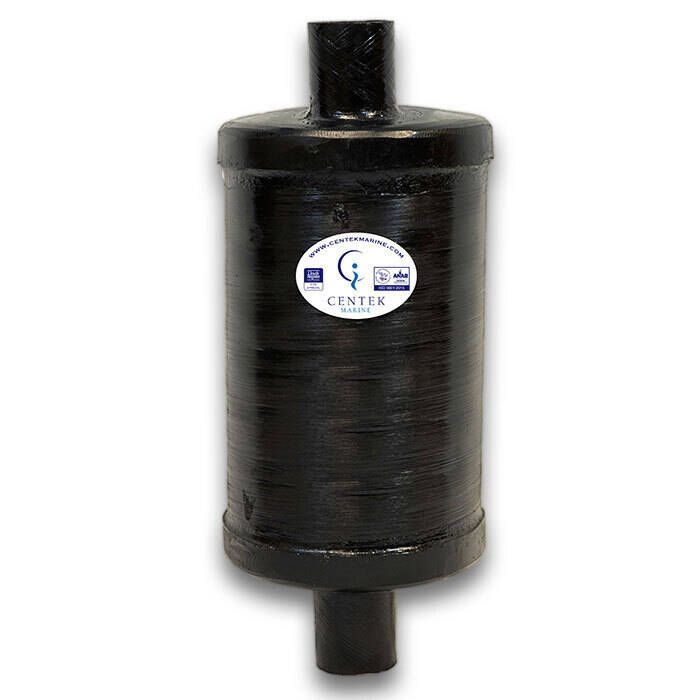

Centek Vernalift In-line Muffler - 1500098

Centek's Vernalift™ is the industry's best lift muffler, designed for gas or diesel propulsion engines or generators located above or below water line.

Features:

• Inline design offers installation flexibility when limited space is a challenge
• Recommended for both gasoline or diesel applications
• Designed for exhaust / water to flow in one direction only
• Meets or exceeds the requirements of the ABYC P-1 Standards
• Withstands over the normal operating pressure
• This does not mean that it can withstand the extreme instantaneous pressures associated with backfire

Specifications:

• Color: Black
• Application: Inboards, sailboats & generators
• Fuel type: Gas or diesel
• Waterline: Above or below
• Sound rating: Better
• Capacity: 4.83 Gallons
• Approvals: Lloyd's Register Type Approval
• Flame retardancy: UL94V-0
• Dimensions:
  • A1 - Inlet: 4"
  • A2 - Outlet: 4"
  • B - I / O Length: 4"
  • C - Length: 22"
  • D - Diameter: 12.34"
  • F - I / O Offset: 9.17"

Centek 4"" X 4"" Vernalift™ (Inline) 12"" X 22"" Data Sheet

Vernalift™ Product Installation Guidelines (1.70 MB)
