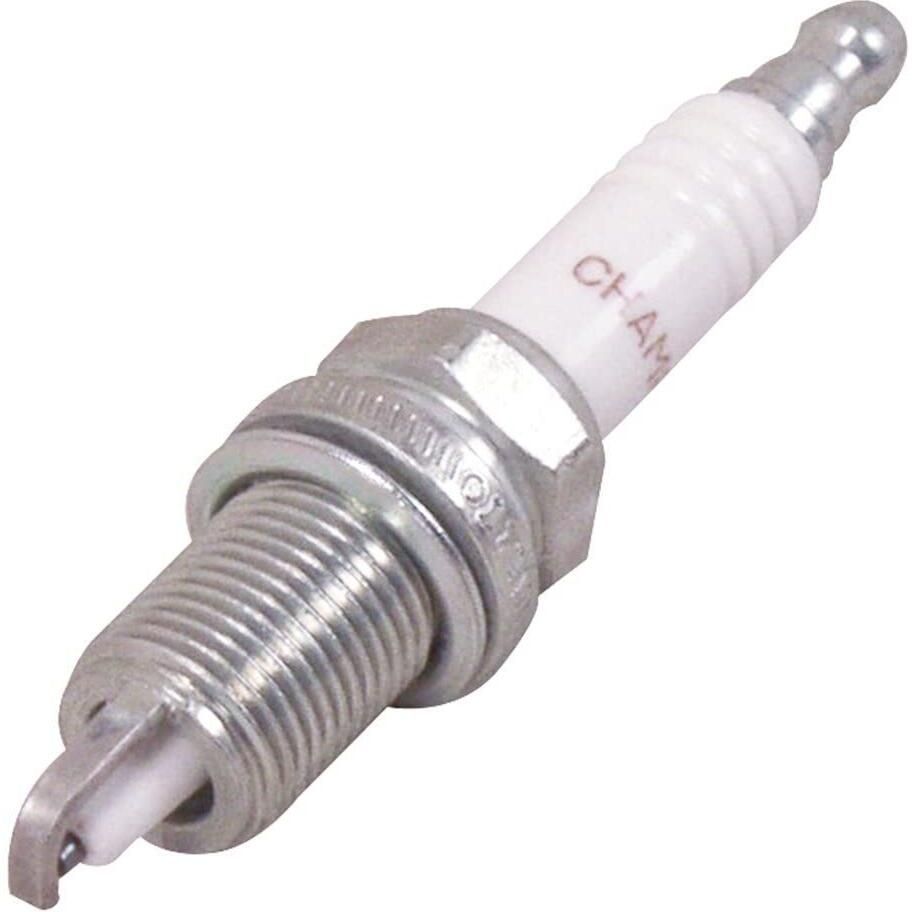

Champion RS14PYPB5 Double Platinum Spark Plug - 7940

Platinum tipped center electrode and platinum pad on ground electrode provide long life and minimal wear. Tapered electrodes create a sharper spark focus and reduce quenching. Electrodes use heat-active alloy to reach operating temperatures quickly and maintain stable temperatures under varying engine loads. Triple sealed interior and copper core reduce failure due to heat and stress.

Specifications:

• Shell:
  • Thread Diameter: 9/16" (14 mm)
  • Thread Pitch: 1/16" (1.25 mm)
  • Seat Type: Tapered
  • Reach: 0.689" (17.5 mm)
  • Hex Size: 5/8" (16 mm)
  • Terminal Type: Solid
  • Gap: 0.049" (1.25 mm)
• Center Electrode:
  • Material: Platinum
  • Type: Fine Wire
  • Size: 1/32" (0.8 mm)
  • Projection: Projected
• Ground Electrode:
  • Material: Platinum
  • Type: Standard
  • Shape: Taper Cut
  • Quantity: 1
• General:
  • Resistor: Yes
  • Resistor Type: SAC9
  • Heat Range: 14
  • Torque: 7 - 15 lb. ft. (Cast Iron), 7 - 15 lb. ft. (Aluminum)
