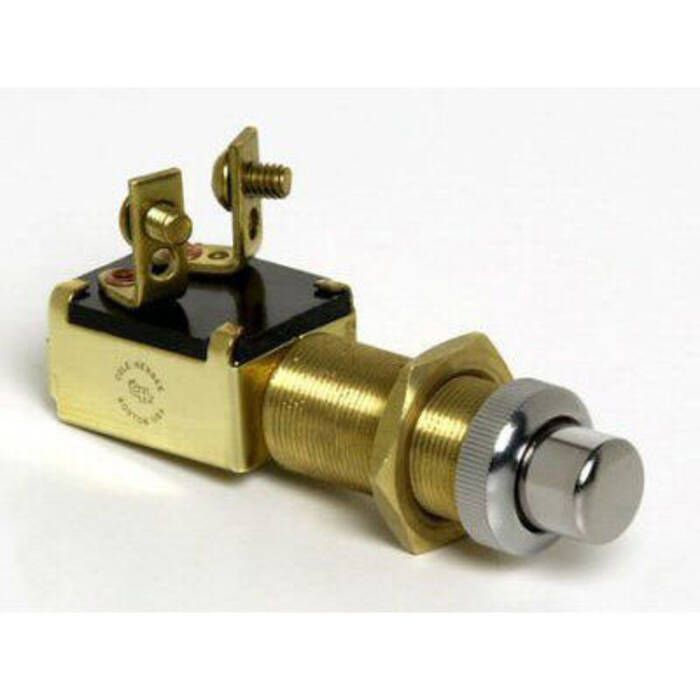

Cole Hersee Heavy Duty Push-Button Switch with Momentary On - M-492-BP

Cole Hersee's M-492 BP single-circuit push-button OFF-(ON) switch installs into panels up to 1" thick to control various 6 - 36V DC marine applications.

Features:

• Single-circuit push-button OFF-(ON) switch, normally OFF
• "Marine Construction" switch designed to stand up to demanding conditions like ocean water spray
• Corrosion-resistant, gasket sealed case with moisture-repellent insulators
• Installs in panels up to 1" thick
• For use with various 6 - 36V DC marine applications

Specifications:

• Switch type: Push-button momentary
  • Circuitry: SPST - Single pole / single throw
  • Action: (OFF) - ON
  • (OFF) = Momentary OFF
• Material: Brass case and mounting stem with chrome-plated brass button
• Illumination: No
• Common applications: Various 6 - 36V DC marine applications
• Max. operating amperage: 10 Amps @ 12V DC
• Terminals: (2) Brass screw
• Dimensions:
  • 1-3/8"L x 5/8" mounting stem
  • Cut-Out: 5/8" dia
