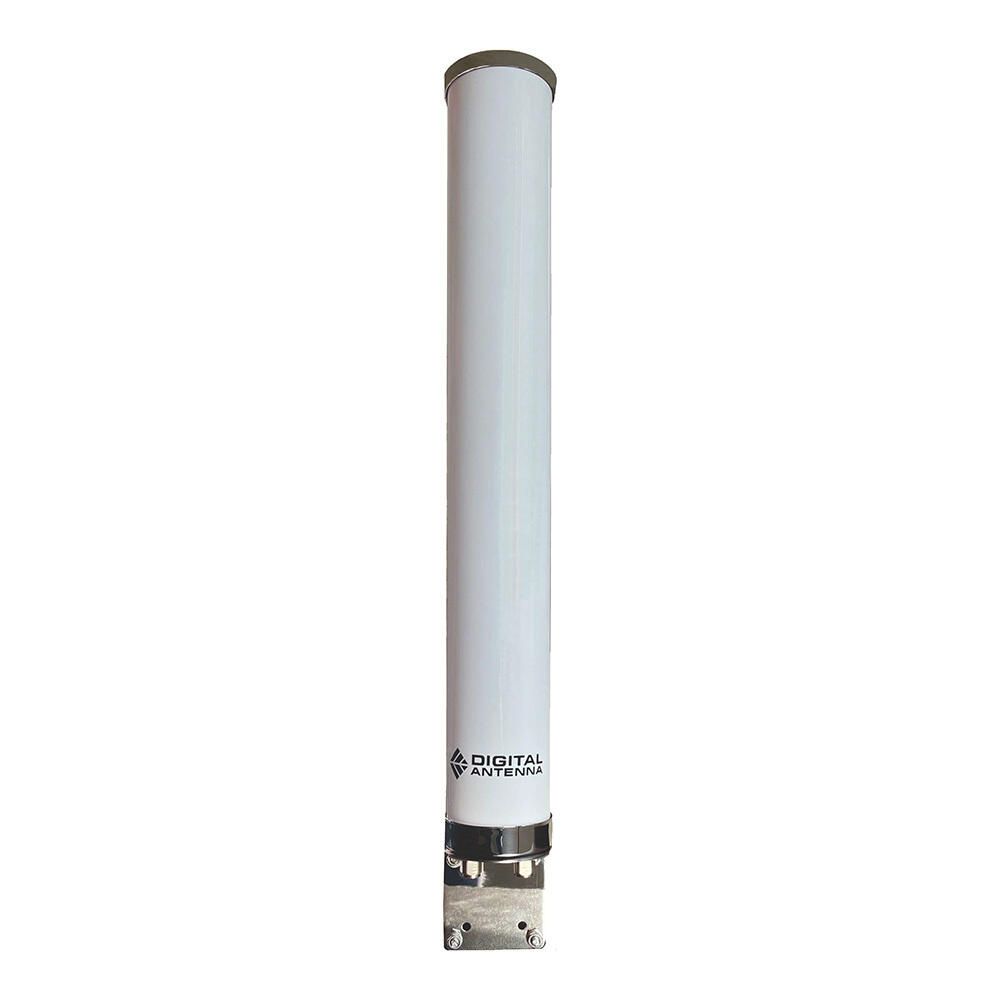

Digital Antenna 4G/5G/LTE Omni-Directional MIMO Antenna - 1742-MW

Overall data throughput is increased by using Multiple Input Multiple Output (MIMO) devices. Digital Antenna's 1742-MIMO antenna encompasses two separate antennas in one radome allowing devices requiring multiple RF connections to use fewer antennas. Designed with vertical polarization, the Digital Antenna 1742-MIMO antenna provides the strongest 4G/5G/LTE signals for enhanced data speeds in poor cellular and WiFi signal areas. Unsurpassed performance from 4-9dBi gain omnidirectional, dual vertical-polarized antennas covering 695-3000 MHz enclosed in a rugged UV stable, marine grade fiberglass housing with corrosion-resistant stainless steel hardware.

Features:

• Vertically polarized, dual-integrated antennas
• 9dBi peak gain
• Enhanced data speeds
• Rugged UV stable polyurethane finish
• Foam-filled weatherproof housing
• Corrosion-resistant stainless steel components
• VSWR <1.5:1 in 4G & 5G bands
• Heavy-duty pole mount included
• Dual female N-type connectors
• RoHS Compliant

Specifications:

• Gain: 4-9 dBi
• Bandwidth:
  • VSWR: <1.5: 1 = 695-3000 MHZ in 3G/4G/5G Bands
  • VSWR: <2.0: 1 = 695-3000 MHZ
• Impedance: 50 ohms
• Max Input Power: 25 Watts
• Exterior Finish: White UV stable
• Dimensions: 23.5" X 3" O.D
• Weight: 1 lbs, 10 oz
• RF Connector: N Female
• Installation: Included L Bracket with U-bolts for up to 2" pole
• Elements: Copper
• Polarization: Vertical
• Isolation: >30dB
• Wind Rating: >160 Kph
• Warranty: 2 Years
• Compliance: RoHS
