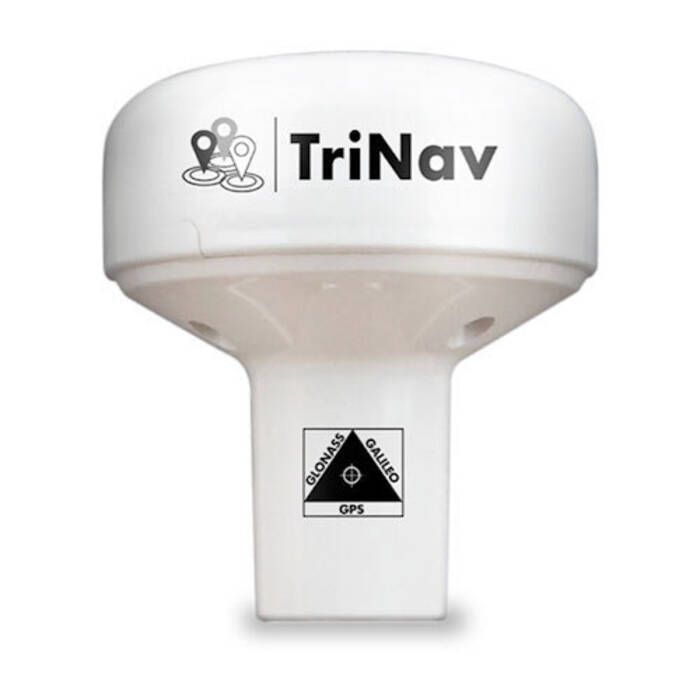

Digital Yacht GPS Sensor/Antenna - ZDIGGPS160

The Digital Yacht TriNav™ GPS160 NMEA 0183 is a high performance positioning sensor using GPS, Galileo and Glonass satellite systems for exceptional positioning accuracy and redundancy. GPS160 has an NMEA 0183 interface

Features:

• Typical accuracy is better than 1 meter, and data can be set to output at up to 18Hz for smoother plotter track displays
• TriNav software technology also improves positioning vulnerabilities that could occur through spoofing and local interference
• Field programmable for a variety of modes such as single GNSS operation (eg Galileo only) as well as output configurations such as update rate, NMEA sentence structure
• Supports a simple external MOB (man-over-board) switch or device
  • When activated, the GPS160 creates a "synthesized" AIS SART MOB message on its NMEA output which can be interfaced with a local plotter for MOB identification. Most modern plotters support this with a clear MOB icon and instant bearing and distance information to navigate to the casualty
• Galileo is a global navigation satellite system (GNSS) that has been developed over the past two decades. It joins the GPS and GLONASS systems and offers mariners a 3rd reliable positioning source

Specifications:

• 72-channel GPS, Glonass and Galileo GNSS positioning receiver
• Typically sub 1 meter accuracy thanks to TriNav™ technology
  • Combines all satellite data for optimum accuracy
  • Can be configured as dedicated GPS, Glonass or Galileo-only device
• Sophisticated anti-spoofing algorithm for robust positioning performance and interference rejection

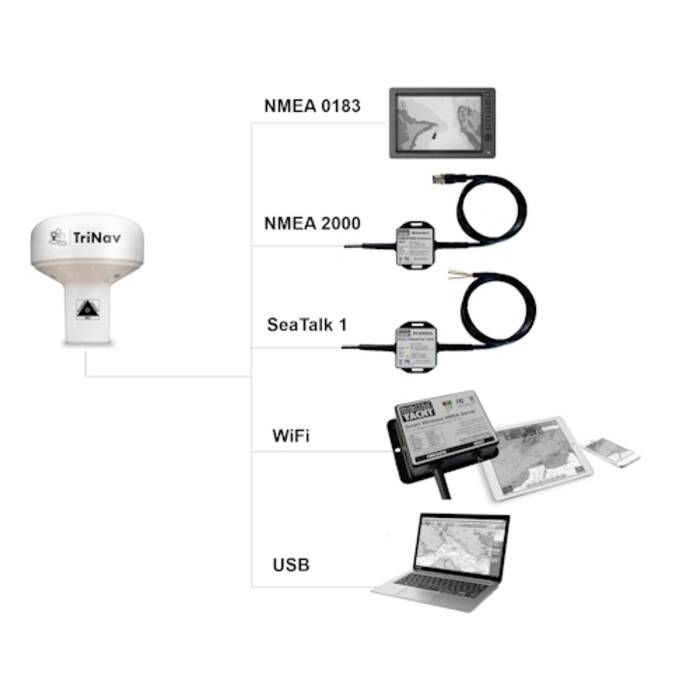

• Available:
  • Seatalk ¹ (with Seatalk converter) (Sold Separately)
  • NMEA 2000 (with iKonvert interface) (Sold Separately)
  • Wireless (with WLN10SM) variants (Sold Separately)
  • GPS160USB (Sold Separately) available with USB connection for PC/MAC
• User / field selectable 4800, 38400 and 115200 baud operation through simple internal DIP switches
• Multiple formats of NMEA data output including datum information user configurable through internal DIP switches
• Up to 18Hz update rate (user selectable)
• Ultra low (<20mA) power consumption at 12V DC
• Cable length: 10 meters
• Input for MOB switch / system when activated generates synthetic AIS MOB NMEA output to activate MOB position on plotter
• Professional system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST)

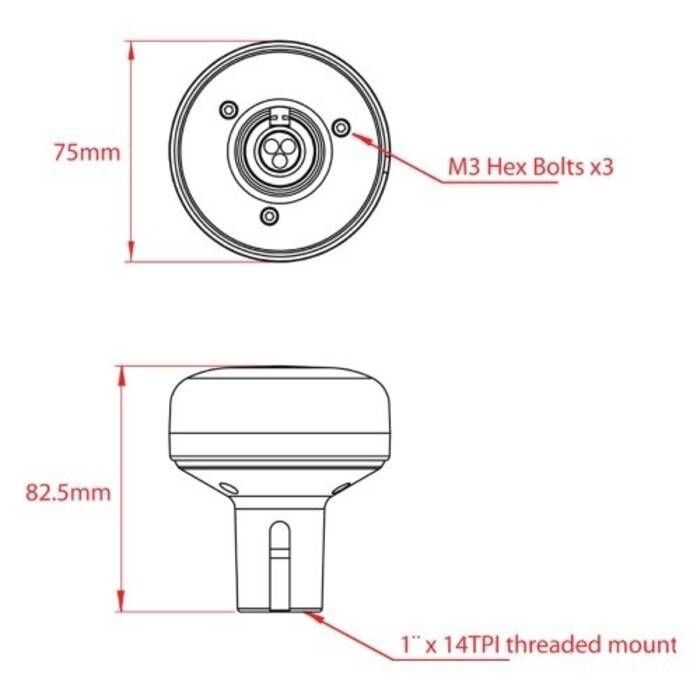

• Puck installation or fits 3rd party industry standard 1" x 14 TPI threaded mount
