Dometic Marvair CR330 Condensation Removal Kit - 9108844722

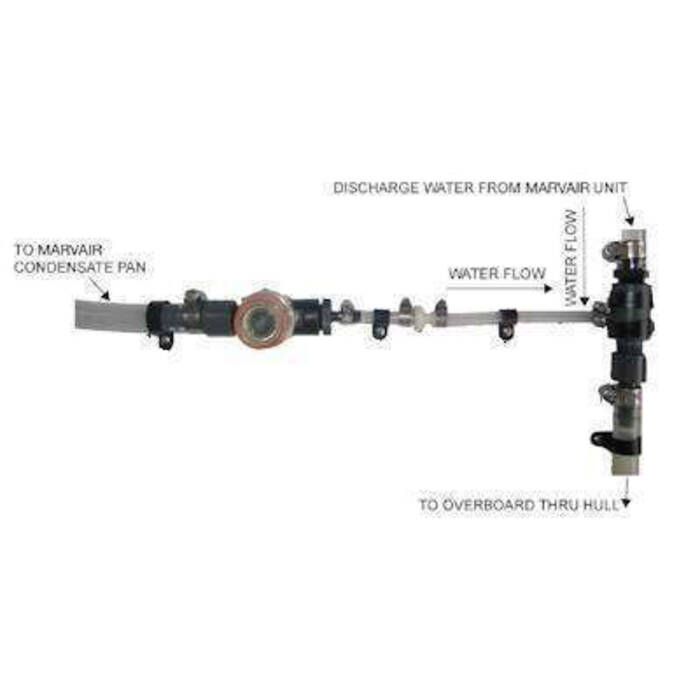

The Marvair CR330 removes the condensate water produced during the cooling cycle of your Marvair reverse-cycle air conditioner and discharges the condensate into the air conditioner's outlet water line.

Features:

• The condensate is pumped overboard any time the air conditioner's circulation pump is working and sufficient condensate is in the condensate pan of your Marvair unit

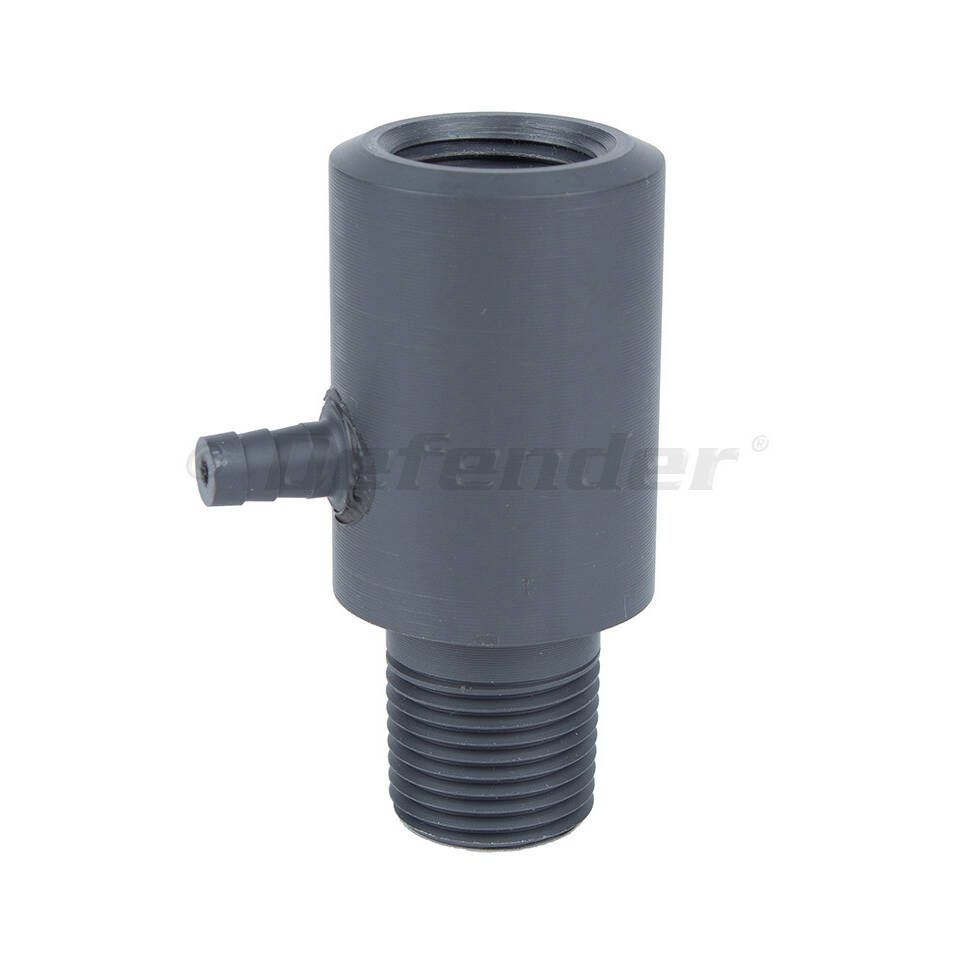

• By operating on the Venturi effect, a separate condensate pump is not required

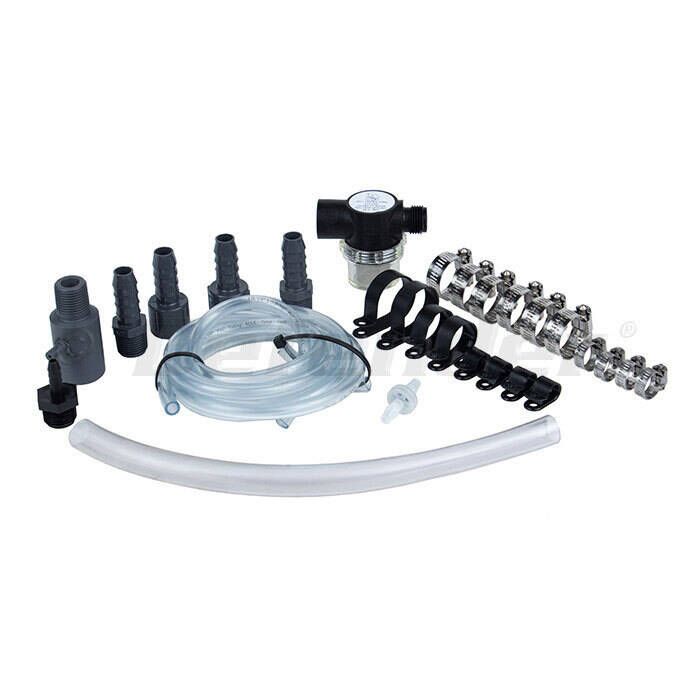

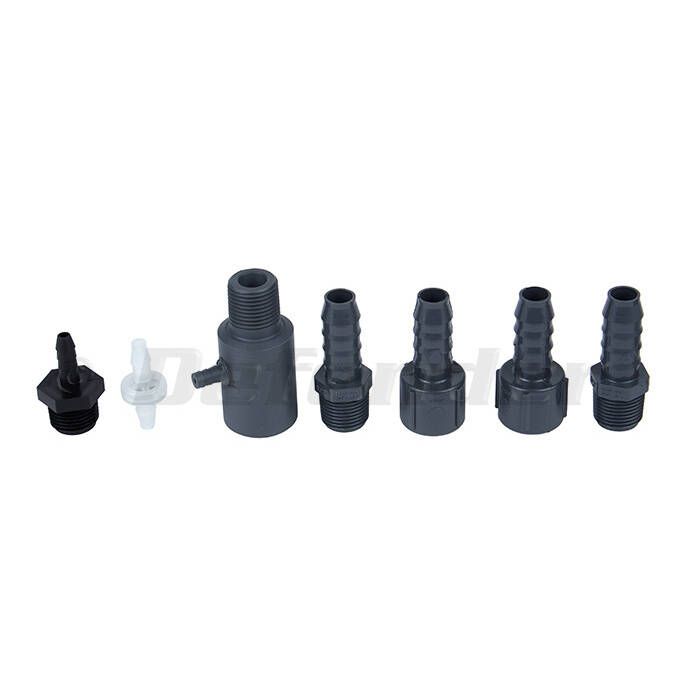

• A water filter/strainer, a reducer and a check valve are also provided and must be installed with the CR330

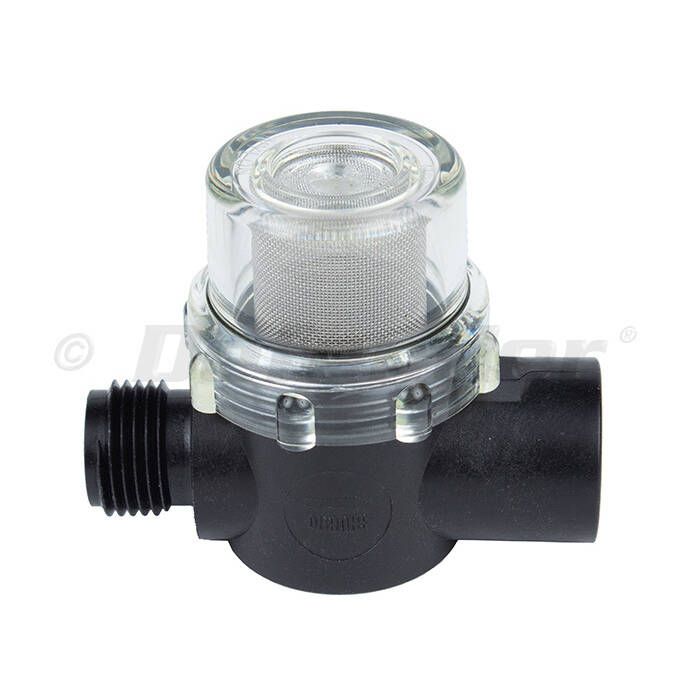

• The filter prevents debris from entering the CR330 and obstructing the water flow
• The check valve allows the condensate to flow in only one direction
• The flow rate, measured at the air conditioner, must be at least 1.0 GPM (3.8 LPM) but no more than 4.6 GPM (17.4 LPM)
  • Flow rates less than 1.0 GPM (3.8 LPM) may result in improper removal of the condensate
  • Flow rates greater than 4.6 GPM (17.4 LPM) may result in a restriction of water flow to the air conditioner
  • Always refer to the air conditioner's Owner's manual or Product Data Sheet to determine the correct water flow for proper operation of the Marvair air conditioner
