Dr. LED G4 LED Disk - 9000081

Dr. LED G4 MR11 LED Disk replaces existing incandescent or halogen bi-pin bulbs, producing a flood-type beam of soothing warm white light ideal for recessed and reading lights.

Features:

• G4 MR11 LED disk replaces existing incandescent or halogen bi-pin bulbs

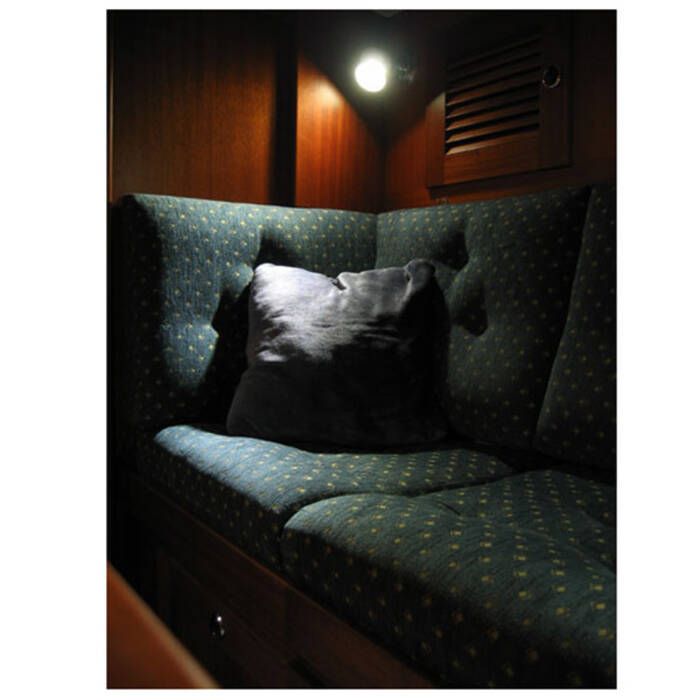

• Disk produces a flood-type beam of soothing warm white light ideal for recessed and reading lights
• Supplied with both axial (center) and radial (side) connection pins shear off pins that are not needed
• Very low power consumption only about 1.5W
• Zero radio frequency (RF) emission, surface-mount-device (SMD) design
• Internal circuitry provides constant current draw regardless of voltage fluctuations from source
• Long service life, shockproof and ultra-rugged with no filament to burn out or break
• Lead- and mercury-free with no UV output
• Dimmable with PWM (pulse width modulation) dimmers

Specifications:

• Base / Socket: G4 MR11 bi-pin
• Brightness: 120 Lumens
• LED Light Color: Warm White
• Color Temperature: 3000°K
• Nominal Voltage: 12V DC
• Power Consumption: 1.5W
• 20W incandescent equivalent / 10W halogen equivalent
• Current Draw: 0.13 Amp @ 12V DC

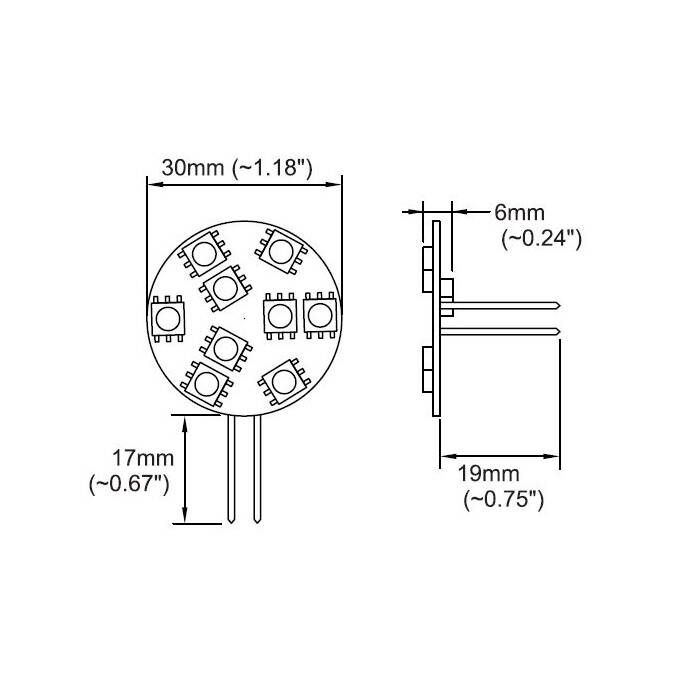

• Dimensions: 1.2" (30 mm) dia. x 0.24" (6 mm) thick
• Regulatory: CE, RoHS
