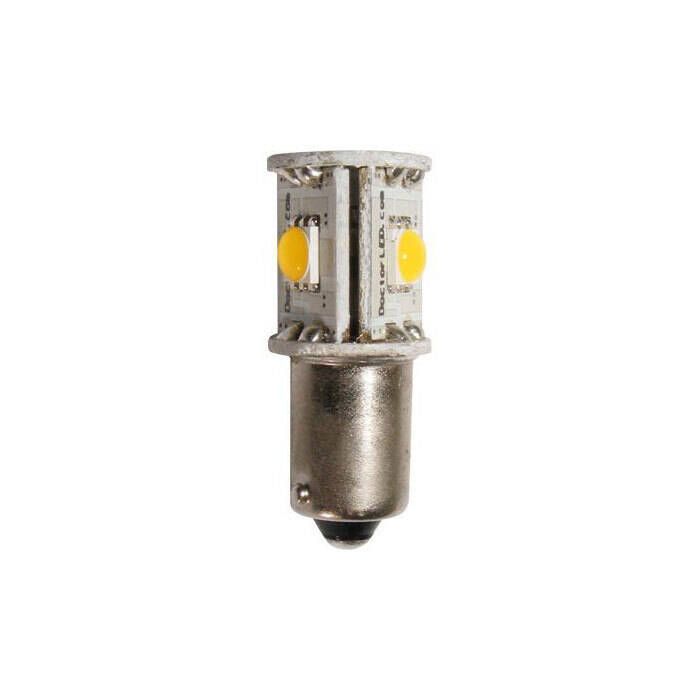

Dr. LED Polar Star 20 Navigation LED Replacement Bulb - 8001849

Dr. LED Polar Star 20 Navigation LED Replacement Bulb is a 12V DC, 2 NM white LED replacement bulb for mast-mounted navigation lights and deck lights.

Features:

• Replaces existing incandescent navigation bulbs with 9 mm single-contact non-indexed miniature bayonet sockets
• Fits Aqua Signal Series 20 navigation lights and Aqua Signal Series 25 deck lights
• Very low power consumption approximately 1W (non-polarized connection)
• Zero radio frequency (RF) emission, surface-mount-device (SMD) design
• Internal circuitry provides constant current draw regardless of voltage fluctuations from source
• Long service life, shockproof and ultra-rugged with no filament to burn out or break
• Lead- and mercury-free with no UV output
• Dimmable with PWM (pulse width modulation) dimmers

Specifications:

• Base / Socket: Single-contact bayonet 9 mm non-indexed BA9S
• Brightness: 60 Lumens
• LED Light Color: Warm white
• Nominal Voltage: 12V DC
• Power Consumption: 1W
• Incandescent Equivalent: 10W
• Current Draw: 0.1 Amp @ 12V DC

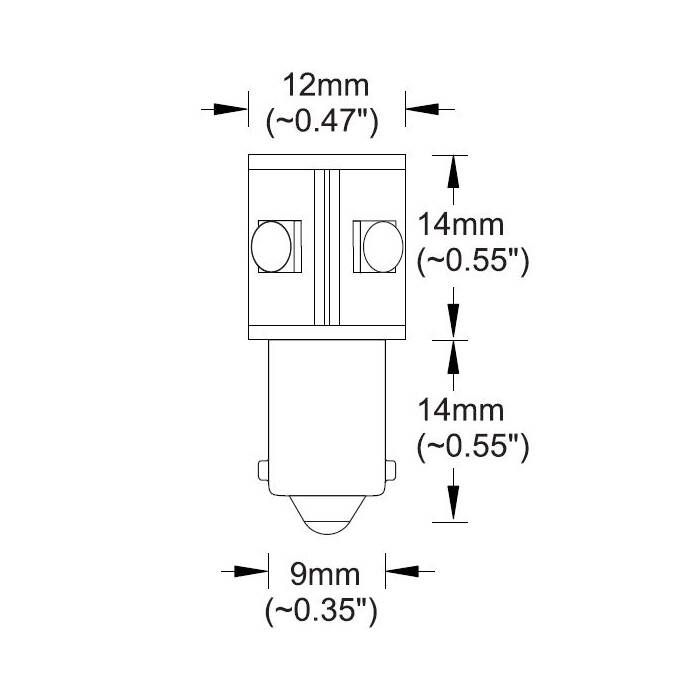

• Dimensions: 0.47" (12 mm) dia. x 1.1" (28 mm)
• Regulatory: 2 nm USCG ABYC A-16 Certified

Note: LED bulb intended for use behind clear lens

White LED bulbs should not be used behind colored lenses in navigation lights, as they will not produce the required brightness. Only corresponding colored LED bulbs should be used in navigation lights with colored lenses.
