Edson Stern Rail Outboard Motor Mount for 1" Rail - 521-100ST
$621.83
Edson Stern Rail Outboard Motor Mount for 1" Rail - 521-100ST Item # 865233

Description

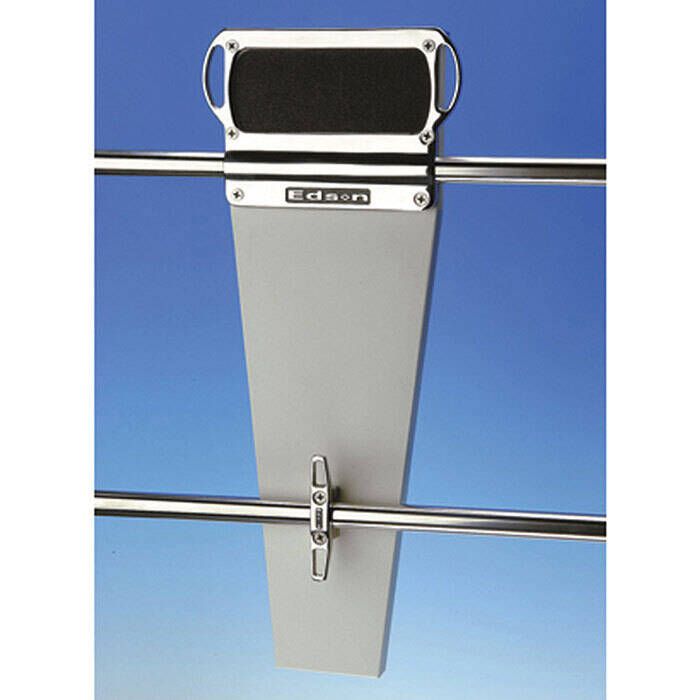

EdsonĀ® Stern Rail Outboard Motor Mount for 1" Rail
Features:
- Corrosion resistant polished 316 stainless bracket with non-skid pad bolted to UV-stable poly backing board
- Mount designed to hold motors up to 100 lbs / 15 HP
- Convenient cleat and side handles allow you to secure motor on board
- Supplied with hardware to mount to any 1" standard stainless steel rail
- Bottom cleat included but not attached ā can be custom-fit to your particular rail spacing
Specifications:
- Max. Horsepower: 15 HP
- Max. Motor Weight: 100 lbs

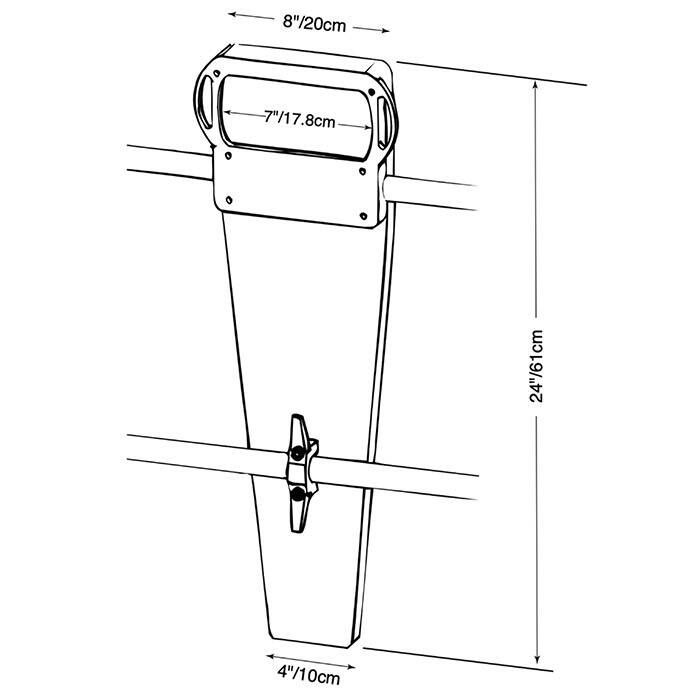

- Overall Dimensions (Top Width x Bottom Width x H): 8" x 4" x 24"
- Non-Slip Mounting Pad Dimensions (W x H): 7" x 3"
Note: For motors 8 HP and up it is recommended to add additional lashing around motor shaft to prevent high torque loads near mounting plate
Part Numbers for Edson Stern Rail Outboard Motor Mount for 1" Rail - 521-100ST
ITEM # | MFR. PRODUCT # | AVAILABILITY |
865233 | 521-100ST | In Stock: Leaves Warehouse: Same Day |
