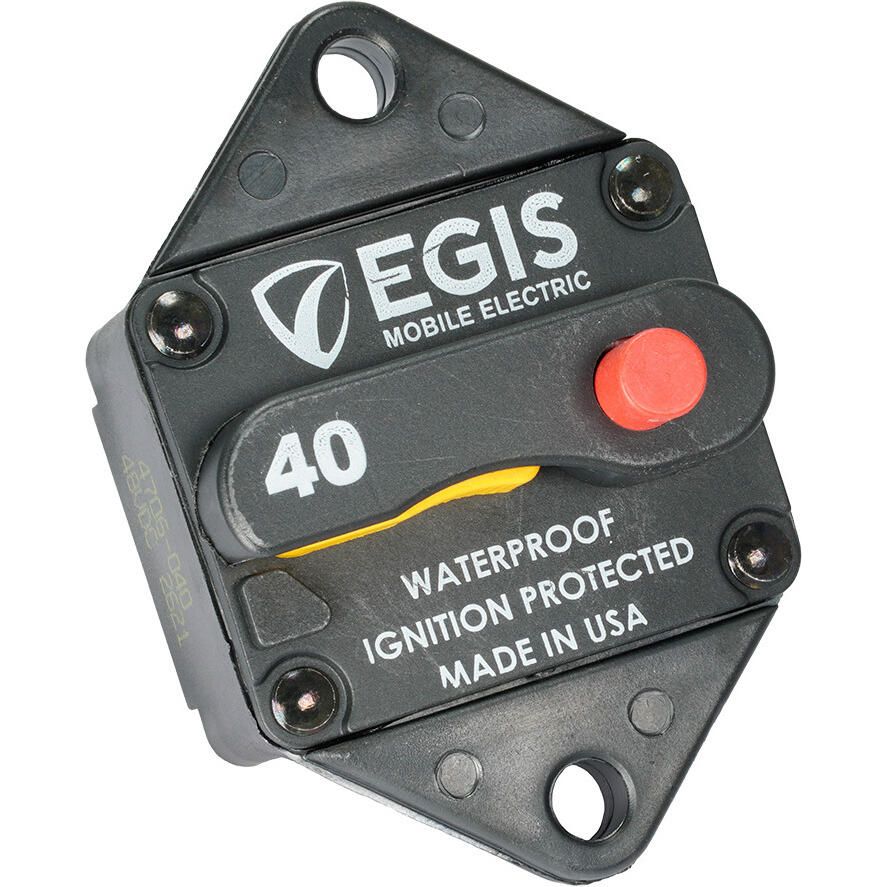

Egis Mobile Electric 285 Series Panel Mount Circuit Breaker

This Egis panel mount circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Features:

• Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
• Provides rear/front panel installation options
• Corrosion and vibration resistance for harsh environment applications
• Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High Voltage (48 Vdc) Rating - easily supports 12 and 24V DC applications while offering improved protection for 36 and 48V DC systems rather than using fuses
• High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
• High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power

Specifications:

• Max Voltage: 48V DC
• Cycling Endurance: 6,000
• Interrupt Current @16V DC: 5,000A
• Interrupt Current @28V DC: 3,000A
• Ingress Protection Rating: IP67
