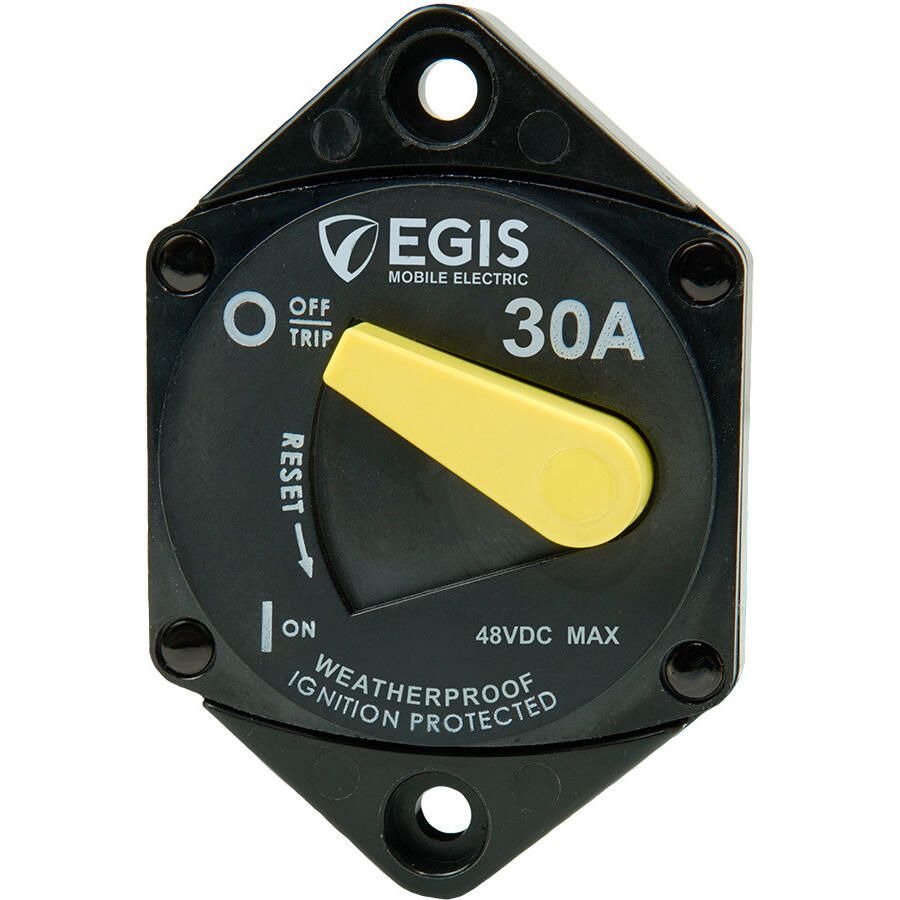

Egis Mobile Electric 87 Series Panel Mount Circuit Breaker

This Egis Mobile 87 Series Circuit Breaker protects electrical circuits from short circuits and thermal overloads while providing robust manual circuit switching for reliable live load switching. A weatherproof case keeps the circuit protection safe from the environment, and it has high-voltage circuit interrupt current capability that protects circuits connected to large series or parallel-connected battery banks. Convenient round cutout style mounting ensures easy installation into the panels chosen.

Features:

• Compatible with circular cutout enables easy panel installation
• Corrosion and vibration resistance for harsh environment applications
• IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High voltage (48V DC) rating - easily supports 12 and 24V DC applications while offering advanced protection for 36 and 48V DC
• High electrical and manual switching endurance delivers 2,000 cycles at full current
• High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-year warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Max Voltage: 48V DC
• Cycling Endurance: 2,000
• Interrupt Current @14V DC: 5,000A
• Interrupt Current @28V DC: 3,000A
• Ingress Protection Rating: IP66
