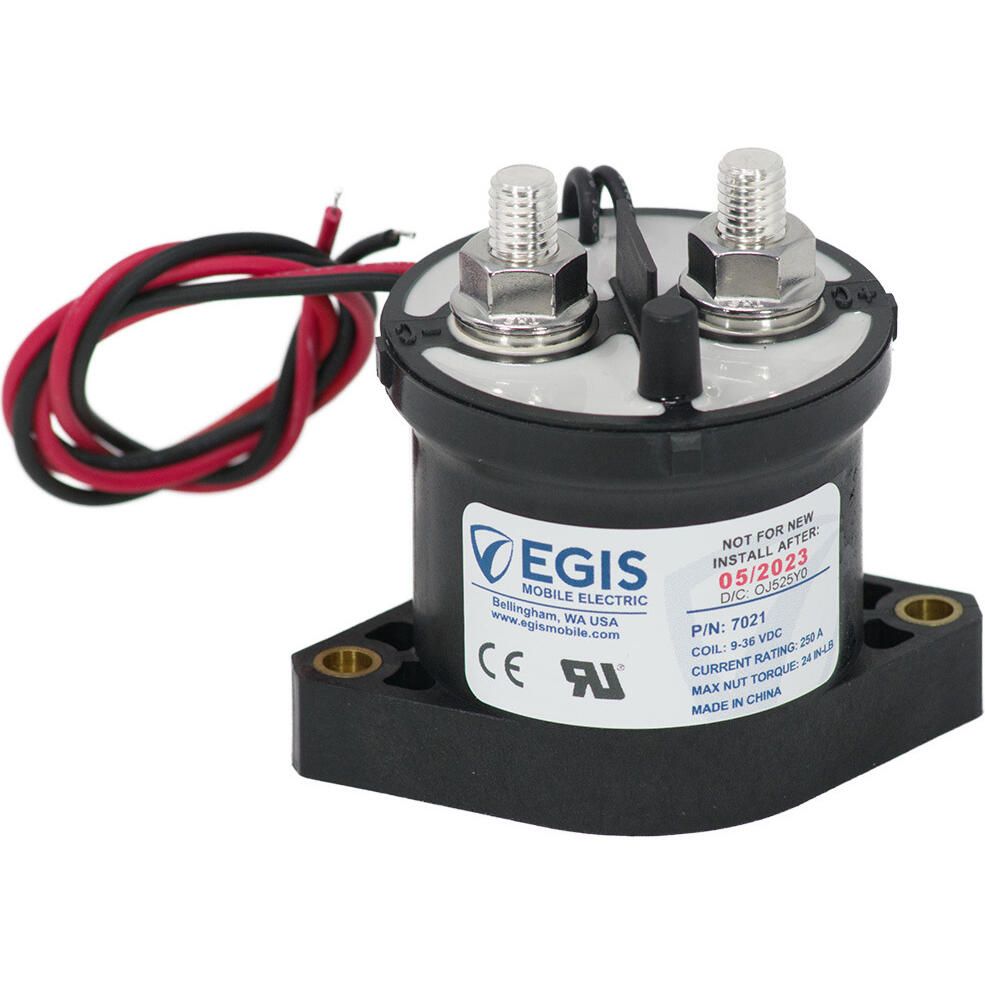

Egis Mobile Electric Contactor

This Egis contactor is perfect for reducing installation costs and weight by eliminating large cable runs to manual switches through robust remote switching of high-ampere engines and auxiliary loads. Also, this contactor has a side mount.

Features:

• Hermetically sealed against dust and moisture penetration. The high temperature rating for all installation locations
• Resists corrosion and ensures long-term connection reliability with premium hardware
• Safely able to open in a locked starter situation up to 1,500A @14V DC
• Reinforced mounting holes provide secure installation and easy attachment for the installer
• Ignition is protected and safe for installation in closed compartments with potential explosive gases
• High Electrical Switching Endurance delivers 6,000 cycles at 100A / 350V, 100,000 cycles at 100A / 14V
• High Interrupt Current Capability - safely able to open in a locked starter situation (up to 1,250A @ 14V DC)
• Bullet-proof Construction - sealed device, high-temperature materials for engine compartment applications, and stainless self-locking hardware
• 4 Year Industry Leading Warranty

Specifications:

• Ingress Protection: IP67/IP69K
• Ignition Protection: ISO-8846 / UL 1500
• Electrical Endurance Rating (Cycles): 1,000,000
• Minimum Operate Temp.: -40 °C
• Max Operate Temp.: 85 °C
• Voltage: 12/24V
  • Continuous Current: 250/500A
  • Operation Control Voltage: 9-36V DC
• Voltage: 12V
  • Continuous Current: 100A
  • Operation Control Voltage: 8-16V DC
• Voltage: 24V
  • Continuous Current: 100A
  • Operation Control Voltage: 16-28V DC
