Fireboy ELS 5-Circuit Automatic Engine Shutdown System

The Fireboy Engine Shutdown/Override Systems are an effective means to automatically shut down engines, generators, and blower systems in the event of a fire. By shutting down your engine room systems, you will ensure that the fire cannot be fueled by the continued operation of components on the engine as well as maintaining the proper agent concentration needed to extinguish the fire.

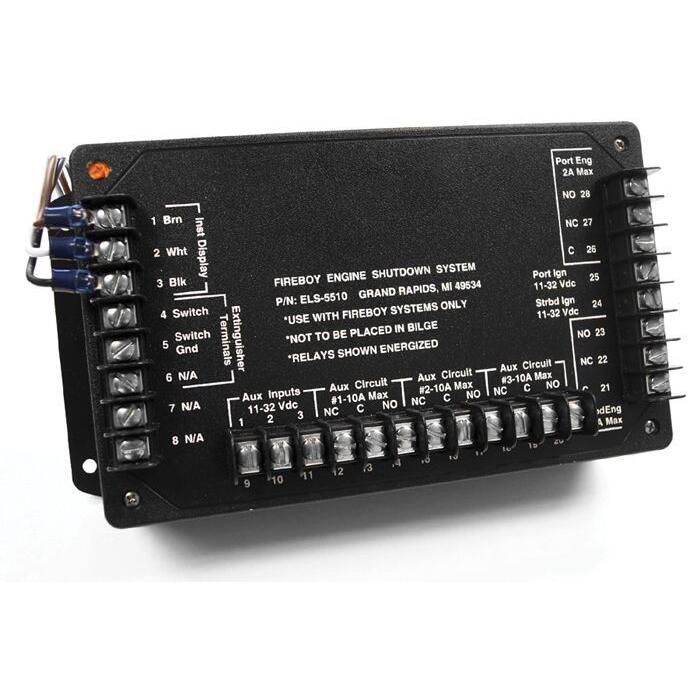

The Engine Shutdown/Override System consists of a Shutdown Control Module and a Helm Display Unit with an Override button. Both should be installed at the helm so that there is access to the ignition wiring.

Specifications:

• Operating Voltage: 9-38 VDC
• Maximum Current Draw: 216mA @ 24 VDC
• Operating Temperature: 22°F (-6°C) to 158°F (70°C)
• Circuits: (2) 2 Amp, (3) 30(NC)/20(NO) Amp
