Fireboy Remote Audible Discharge Alarm

The FireBoy Remote Audible Discharge Alarm monitors status of a Fireboy Fire Suppression System around the clock.

Features:

• Fireboy Deluxe Discharge Alarm has an integrated alarm horn for a simple, single instrument installation
• A 68 dBA Horn Sounds at low pressure or extinguisher discharge
• Application: Monitor status of Fireboy Fire Suppression System (Sold Separately)
• Provides around-the-clock discharge alert
• Simple Installation
• Compact Design

Specifications:

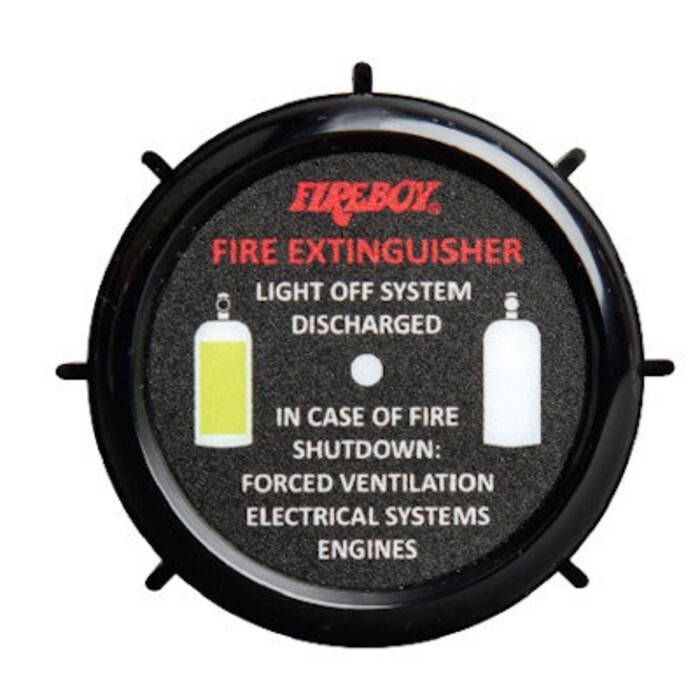

• Round Black Bezel display head also includes test button and visual lamp
  • Light emitting diode lamp with 100,000 hours life expectancy
  • Includes "Press to Test" switch with waterproof boot
• Bezel: 2 3/16" (56 mm)
• Cutout: 2 1/16" (52 mm) round hole
• Bezel Color: Black
• Power: 12V DC
  • Low standby current may be connected directly to the battery buss
• Current Draw @ 12 VDC:
  • Nominal: 25 mA
  • Maximum: 75 mA
• Reverse Polarity Protected

Included:

• FireBoy Display with Horn - DU-RBH-01
• Manual - 18146

Owner's Manual
