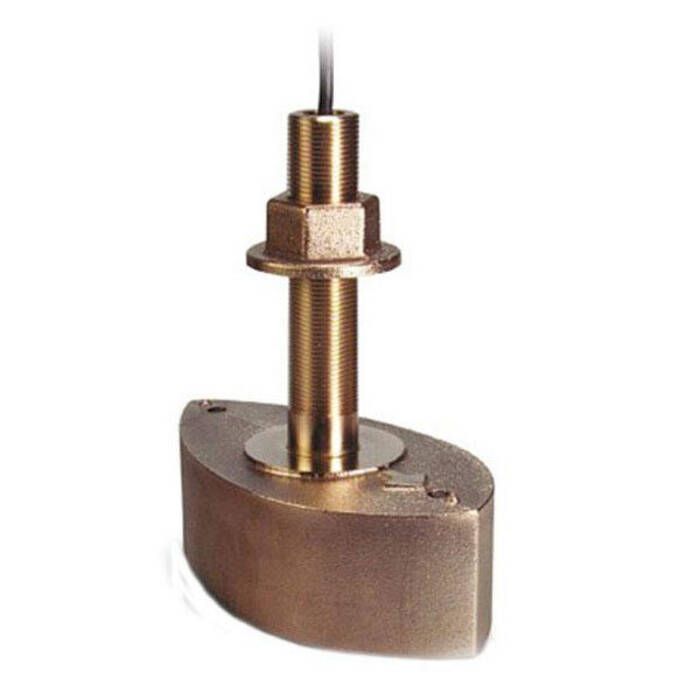

Furuno B45 Thru-Hull Transducer - 525T-BSD
$322.61
Furuno B45 Thru-Hull Transducer - 525T-BSD Item # 866351
Description
Furuno's B45 is a compact dual-frequency transducer with shielded ceramic element for noise-free echo sounder display.
Features:
- Small, low cost bronze housing
- Double-ended shape of housing deflects aerated water to provide clearer echoes
- Suitable for planing-hull powerboats and cruising sailboats up to 30 ft. in length
- Fast-response water temperature sensor accurate to ±0.1°F
Specifications:
- Furuno Model No. 525T-BSD
- Mount: Thru-hull
- Housing Material: Bronze
- Connector: 10-pin
- Cable: 30 ft
- Frequency: 50 / 200 kHz
- Cone: 45° (50 kHz) / 15° (200 kHz)
- Power: 600W RMS
- Depth Range: 800 - 1200 ft. (50 kHz) / 400 - 700 ft. (200 kHz)
- Acoustic Window Material: Urethane
- Compatible Hull Materials: Fiberglass or wood
- Hole Diameter for Installation: 0.875"
- Dimensions: 4.5" H x 2.15" W x 3.97" L
