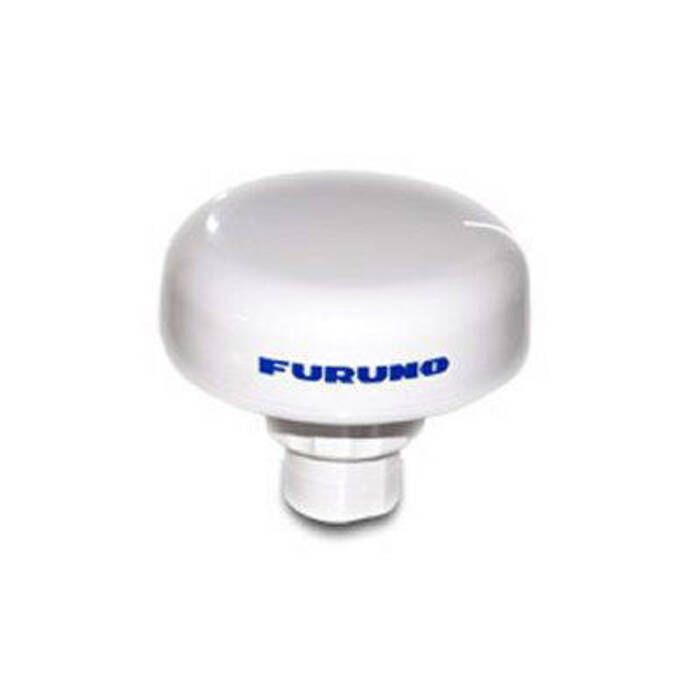

Furuno WGPS/GPS Receiver - GP330B

The Furuno GP-330B is a high performance GPS Receiver designed for any type of vessel. This compact and cost-effective receiver offers extremely accurate position fixes, within 3 meters with the WAAS mode activated.

The GP330B is capable of data output in NMEA 2000 format, making it an ideal GPS sensor for use with NavNet 3D and TZT systems. The sensor comes with all of the hardware required for deck- or mast-mounting solutions. A 6-meter cable with NMEA 2000 connector is supplied as standard. (Flush Mount Gasket Kit not included)

Features:

• High Accuracy, 14 Parallel Channel Receiver with Twelve Dedicated GPS Channels and Two Dedicated WAAS Channels
• NMEA 2000 Certified GPS Antenna Sensor
• Fast Start Up (1 minute Cold Start Time-to-First-Fix)
• Position updated every second
• Unique "Pin-Enabled" Termination Resistor allows simple NMEA 2000 Backbone or Drop Wiring configurations
• Space-saving installation
• The GP330B includes a 6-meter NMEA 2000 drop cable as standard supply
• Ideal position-fixing sensor for NavNet®3D and TZT series
• Direct connection to any Furuno DRS
• Direct connection to NN3D MFD with Optional NMEA 2000 components (Sold separately)
• Recommended Optional Components for direct connection with NN3D MFD: (Sold separately)
  • AIR-052-531 NMEA 2000 T-Connector
  • AIR-335-792 Terminator
  • NMEA 2000 backbone cable

The GP330B offers Innovation with (4) easy mounting methods:

• Standard 1" threaded pipe mount with center or side cable exit
• External surface / Deck mount
• Mast Mount
• Flush mount (Flush Mount Gasket is Not Included)

Power Requirements:

• Low Power Consumption - 12V DC, 175mA (NMEA 2000 LEN=3)
