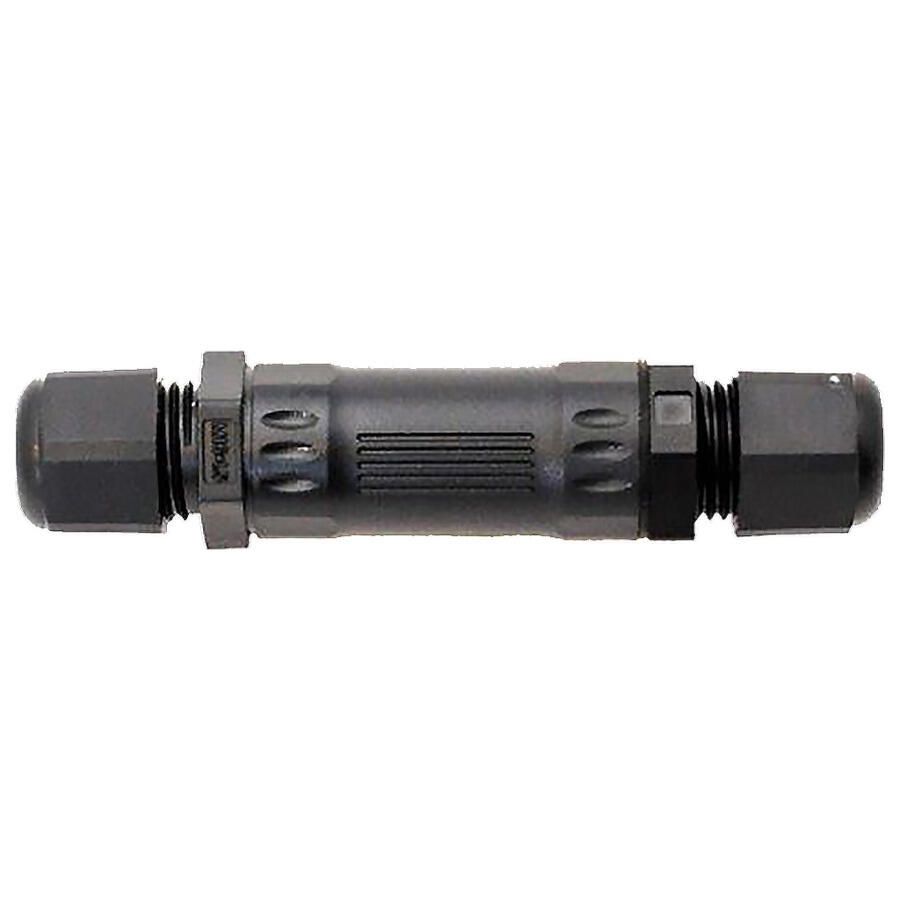

Gemeco 10-Conductor Inline CHIRP Cable Splice - D00342H

Gemeco's 10-connector in-line splice is designed to connect Airmar CHIRP transducers to the correct connector for a given application.

Features:

• Waterproof gland fittings rated to IP67
• In-line splices can also be used to connect two wire segments for Airmar non-CHIRP transducers

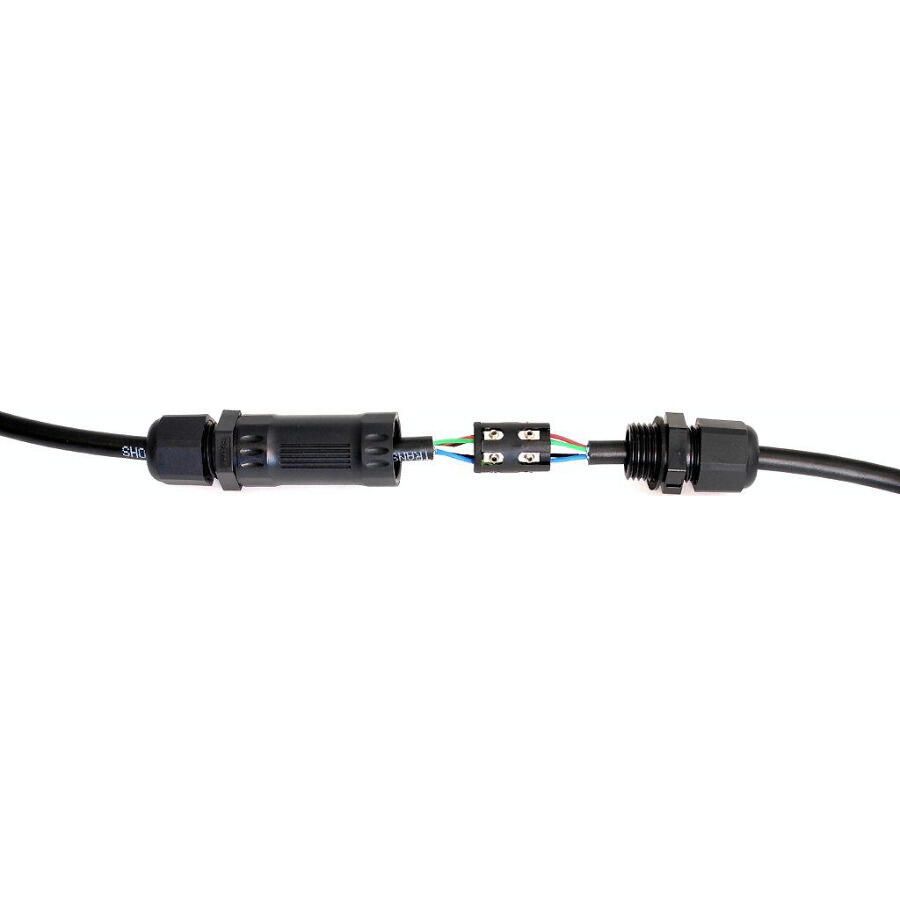

• Makes secure in-line cable splicing as easy as stripping cable and turning a screw
• Integrated cable gland provides strain relief and ensures a watertight connection

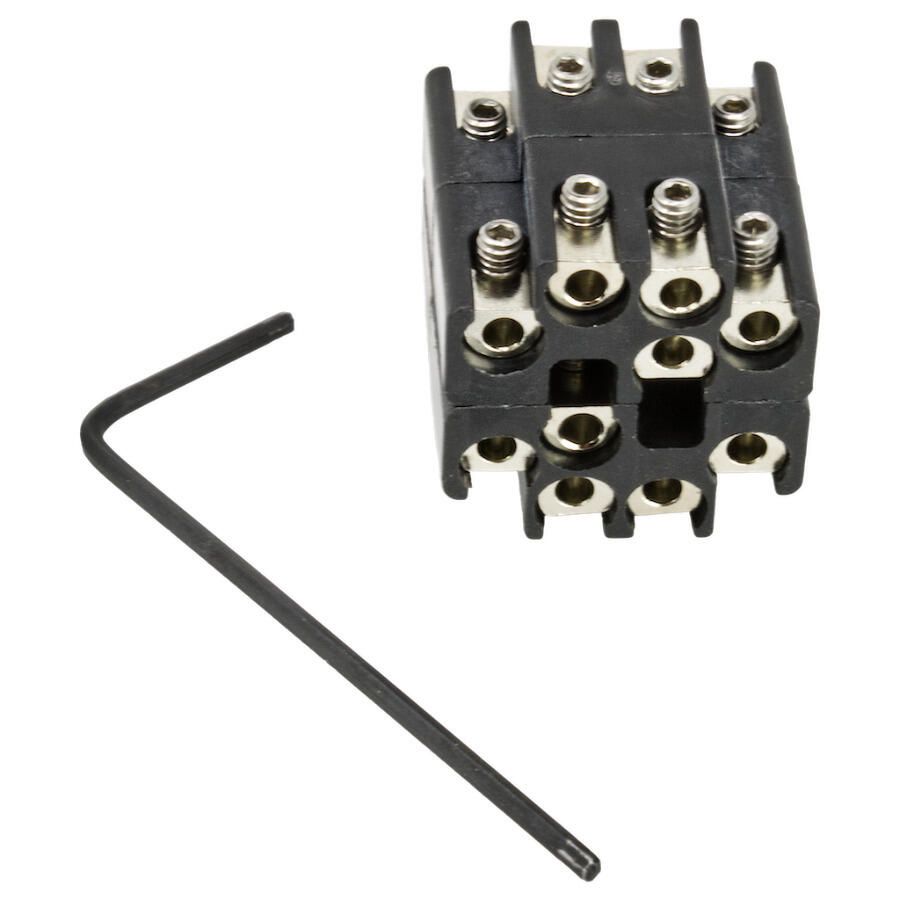

• Solder-less screw terminal connections allow field servicing of the splice without cutting or soldering

Specifications:

• Number of conductors: 10
• Wire range: 18 - 22 AWG

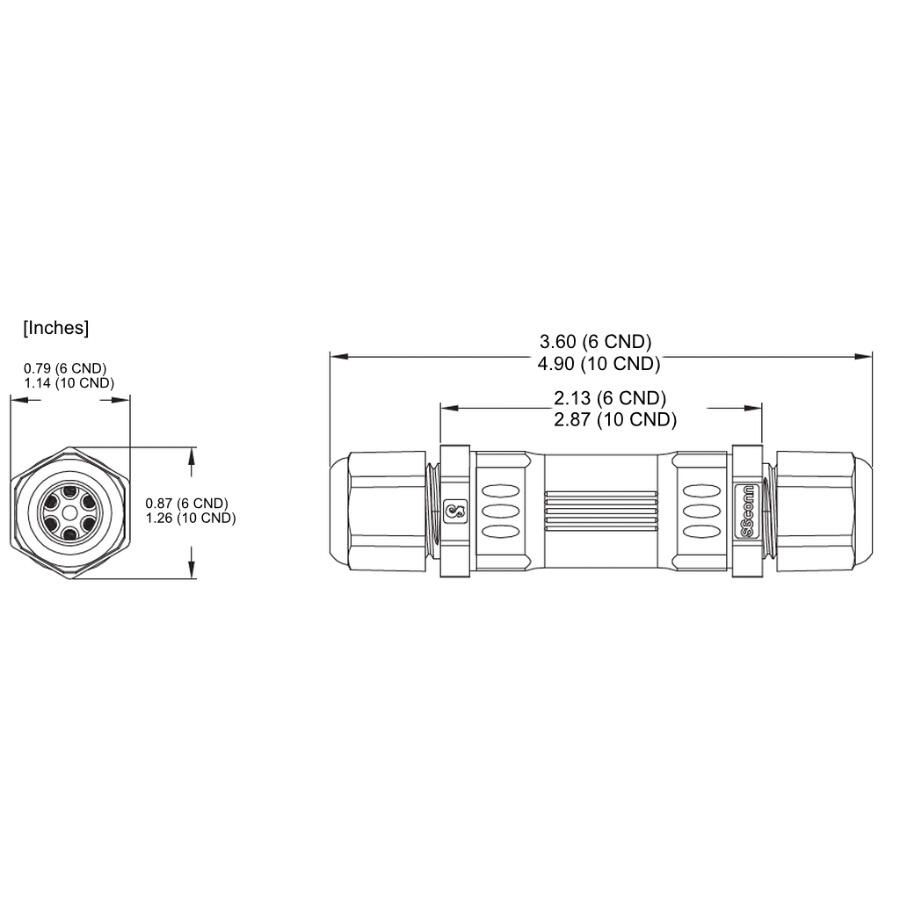

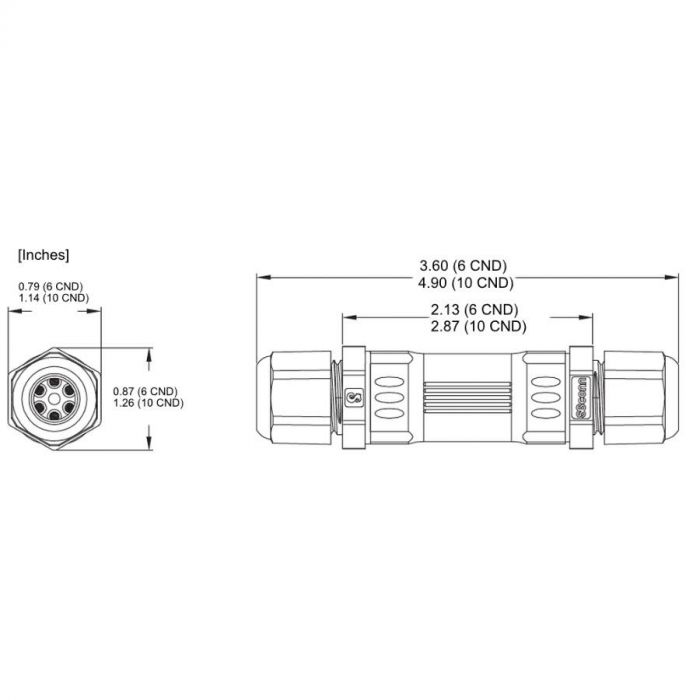

• Cable range: 0.23" - 0.35"
• Waterproof rating: IP67
• Temperature range: -40° - 100° C
• Material (connector body): Nylon

Included:

• Splice
• Gemeco circular connector
• Hex head wrench

Note: Airmar makes an adapter box for Raymarine CHIRP applications, and Garmin makes its own adapter boxes for use with its blue 8-pin and orange 12-pin connectors.
