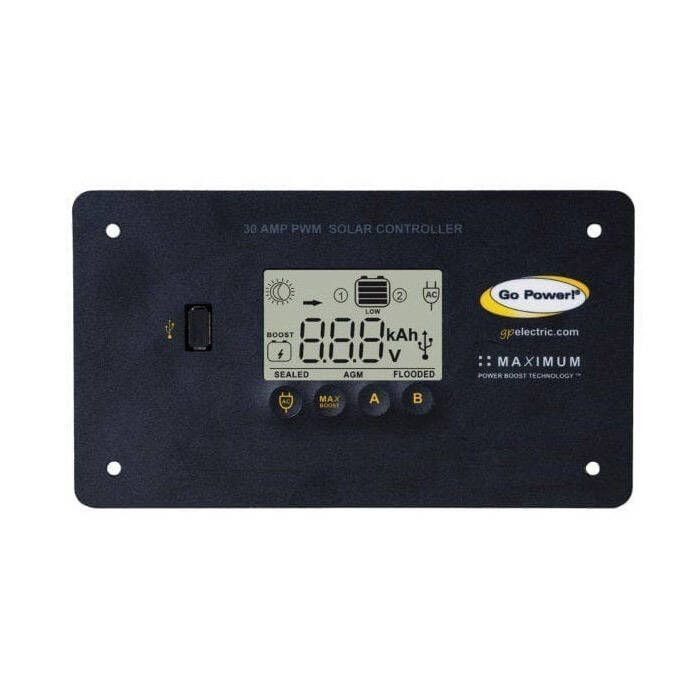

Go Power PWM Digital Solar Controller - 30A - GP-PWM-30-UL

The Go Power! 30 Amp PWM Digital Solar Controller is designed to maintain the life of a battery by protecting it from overcharging. When your battery has reached a 100% state of charge, the controller prevents overcharging by limiting the current flowing into the batteries from your solar array.

Features:

• Bluetooth® ready: Use the Go Power! Connect app
• 12V flush mounted PV charge controller rated for a continuous solar current input of 30 amps
• Uses pulse width modulation (PWM) technology
• Unique four stage charging system with optional equalize setting, to charge and protect your battery bank
• LCD digital display that shows solar array charge current, system battery voltage and battery capacity
• Built-in USB charge port
• Connects up to 600W total
• Charges 1 or 2 battery banks
• Remote on/off control of Go Power! inverters (certain models)

Bluetooth Capabilities:

• Using Go Power! Connect, you can connect to your PWM-30-UL controller to:
  • Set the battery type and charging profile
  • Turn your compatible Go Power! ISW Inverter on or off (certain models)
  • Toggle Maximum Power Boost mode
  • View essential battery stats, including:
    • Battery Voltage
    • PV Charging Current
    • Battery State of Charge (SOC)

Specifications:

• Nominal system voltage: 12V
• Max solar array current: 30A
• Battery voltage range: 6V - 15.5V
• Max. solar panel input voltage: 28V
• Operating consumption: 6mA
• Display consumption: 10mA
• Temp. compensation: -13mV/°F / -24mV/°C
• Operating temperature: -40 to 185°F / -40 to 85°C
• Humidity: 99% N.C
• Dimensions (H x W x D): 4.25 x 7.48 x 1.38 in (108 x 190 x 35 mm)
• Weight: 10.6 oz. (300 g)
• Maximum wire gauge: #4 AWG
• Protection:
  • Battery reverse polarity
  • Solar array reverse polarity
  • Over temperature
  • Over current
