Item #1002901

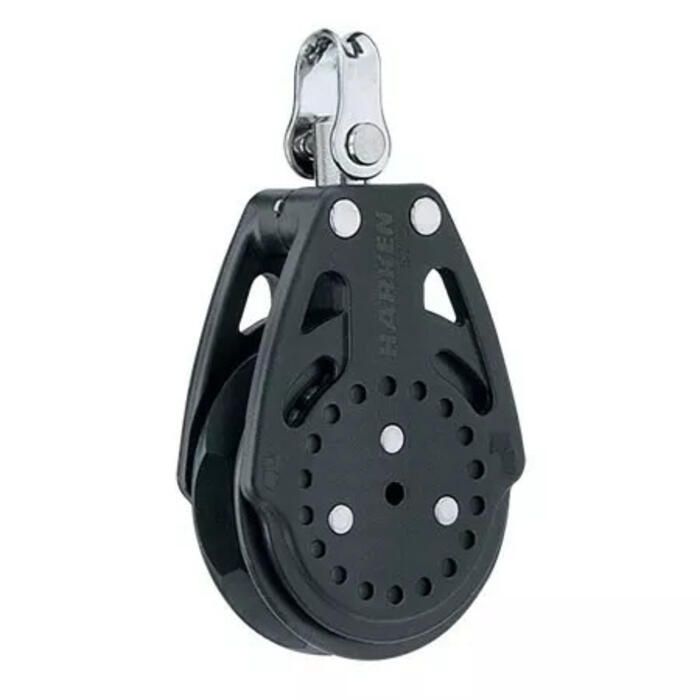

Harken Carbo Ratchamatic Block - 57 mm (2 1/4") - 2625

$175.73
Want an email once available?

Image of : Harken Carbo Ratchamatic Block - 57 mm (2 1/4 Harken Carbo Ratchamatic Block - 57 mm (2 1/4") - 2625 Item # 1002901

Description

The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless.

Specifications:

  • Sheave Diameter: 2 1/4"
  • Length: 4 1/16"
  • Weight: 3.7 oz
  • Maximum Line Diameter: 3/8"
  • Shackle Pin Diameter: 3/16"
  • Maximum Working Load: 500 lbs
  • Breaking Load: 2000 lbs
  • Holding power with 180 deg. wrap 50 lbs (23 kg): 10:1

Part Numbers for Harken Carbo Ratchamatic Block - 57 mm (2 1/4") - 2625
