The Harken Carbo Size 0 Racing Foil Kit delivers ultra-smooth, low-friction headsail handling for high-performance racing yachts. Built from advanced Carbo materials, it outperforms traditional PVC foils with greater strength, durability, and cold-weather resilience. Stainless steel hardware and Teflon-impregnated rollers ensure fast hoists, quick douses, and reliable, long-lasting performance.

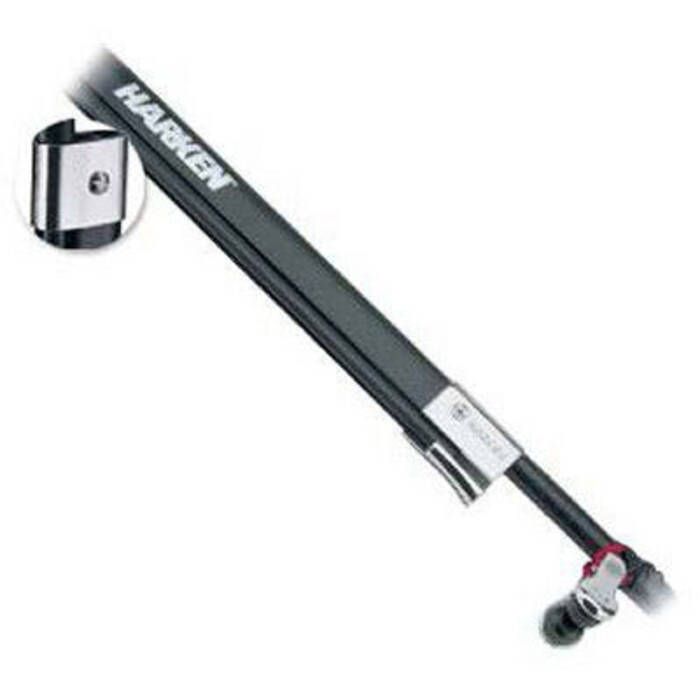

Harken Carbo Racing Foil Kit Item # 923048
Description
The low-friction twin headsail grooves are ultra-smooth, allowing hoists, douses, and headsail changes to be easily and efficiently executed. The engineering resins used in these strong, lightweight head foils provide significant advantages over weaker PVC materials commonly used by other manufacturers. Exceptional impact resistance helps reduce foil damage from loaded spinnaker poles, especially in cold-weather conditions, while maintaining stiffness even in high temperatures.
Specifications:
- Unit 0
- Luff Tape Size: #5 (5/32") (4 mm)
- Maximum Wire Diameter: 1/4" (6 mm)
- Maximum Rod Diameter: 1/4" (6.35 mm)
- Maximum Rod Dash Size: -10
- Spacer Tube Length: 3' 3" (1 m)
- Extrusion Weight: 0.102 lb/ft (0.152 kg/m)
- 9 m (29' 6")
- Maximum Headstay Length: 33' 6" (10.2 m)
- Full System Weight: 3.29 lbs (1.5 kg)
- 12 m (39' 4")
- Maximum Headstay Length: 43' 4" (13.2 m)
- Full System Weight: 4.29 lbs (1.95 kg)
- 15 m (49' 2")
- Maximum Headstay Length: 53' 2" (16.2 m)
- Full System Weight: 5.3 lbs (2.41 kg)
- Unit 2
- Luff Tape Size: #6 (6/32") (5 mm)
- Maximum Wire Diameter: 3/8" (10 mm)
- Maximum Rod Diameter: 13/32" (10.31 mm)
- Maximum Rod Dash Size: -25
- Spacer Tube Length: 3' 3" (1 m)
- Extrusion Weight: 0.185 lb/ft (0.275 kg/m)
- 16 m (52' 6")
- Maximum Headstay Length: 56' 5" (17.2 m)
- Full System Weight: 10.43 lbs (4.73 kg)
- 20 m (65' 7")
- Maximum Headstay Length: 69' 7" (21.2 m)
- Full System Weight: 12.9 lbs (5.83 kg)
- 24 m (78' 9")
- Maximum Headstay Length: 82' 9" (25.2 m)
- Full System Weight: 15.29 lbs (6.93 kg)
