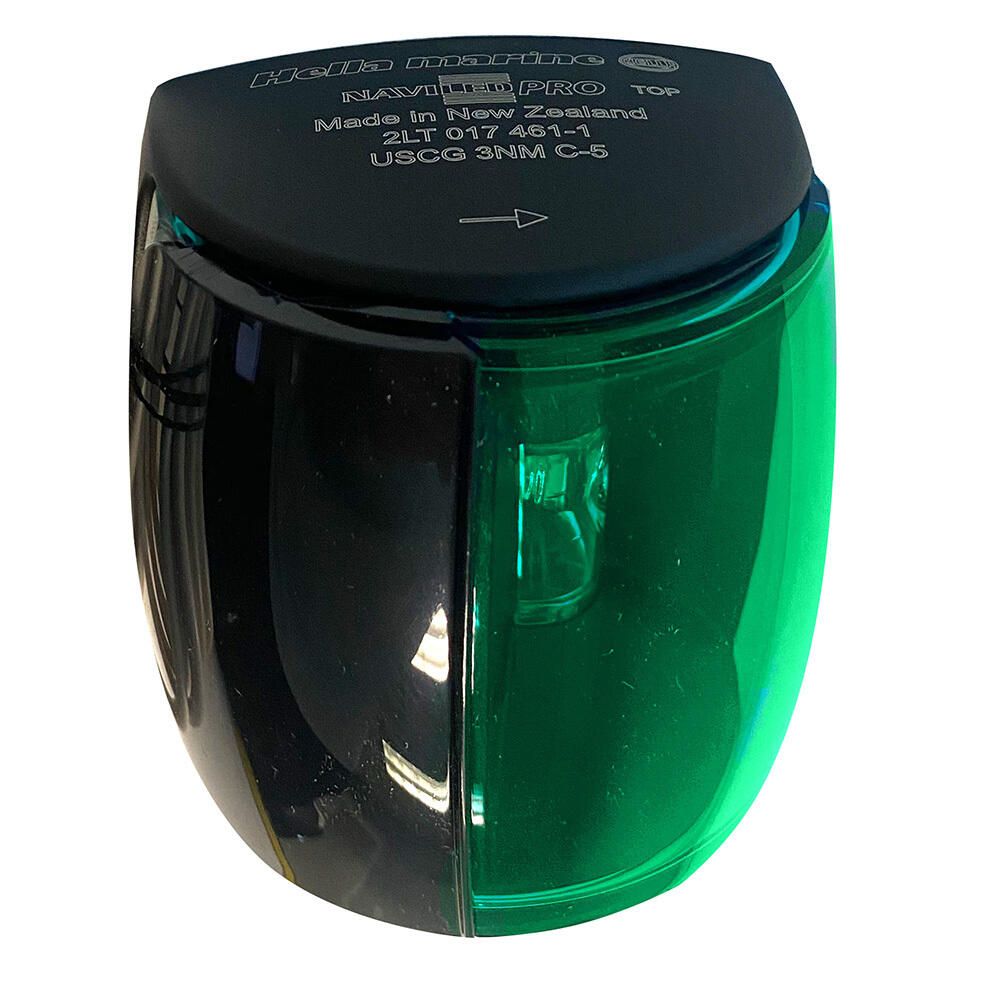

Hella Marine NaviLED Pro Starboard Navigation Light

Hella marine LED navigation lights offer many advantages over conventional bulb lamps. Significantly reduced power consumption, ultra long life and high tolerance to shock and vibration make the LED lamps the ideal choice for the harsh marine environment.

The Hella marine NaviLED® PRO series are precision optical instruments, tested and type approved to comply with international maritime regulations.

Features:

• C-5 Series with new internal components such as PCBA, optic and baffle
• Hella Marine LED technology has no filaments to break, making NaviLED® Pro lights extremely shock- and vibration-proof for proven reliability and safety in demanding conditions
• Advanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages
• Completely sealed unit - high-impact housings ensure durability from waves and impacts
• High-quality cable assemblies for time-saving, completely sealed installations

Specifications:

• Light Type: Starboard Navigation
• Lens Color: Green
• Vessel Size:
  • All vessels < 50 m: (2 nm)
  • All vessels > 50 m: (3 nm)
• Lens Material: Acrylic
• Cable: Pre-wired with 2.5 m of twin-core marine cable
• Operating Voltage: Multivolt™ 9-33V DC
• Power Consumption: < 2W (0.17A@ 12V / 0.08A @ 24V)
• Degree of Protection: IP 67 - Completely Sealed
• Weight: 250 g (including cable)
• Approvals: IMO COL REG 72, ISO 19009:2015, EN 60945:2002 USCG 33 CFR 183.810, ABYC C-5

Instruction Sheet
